REAR DIFFERENTIAL 7F-3

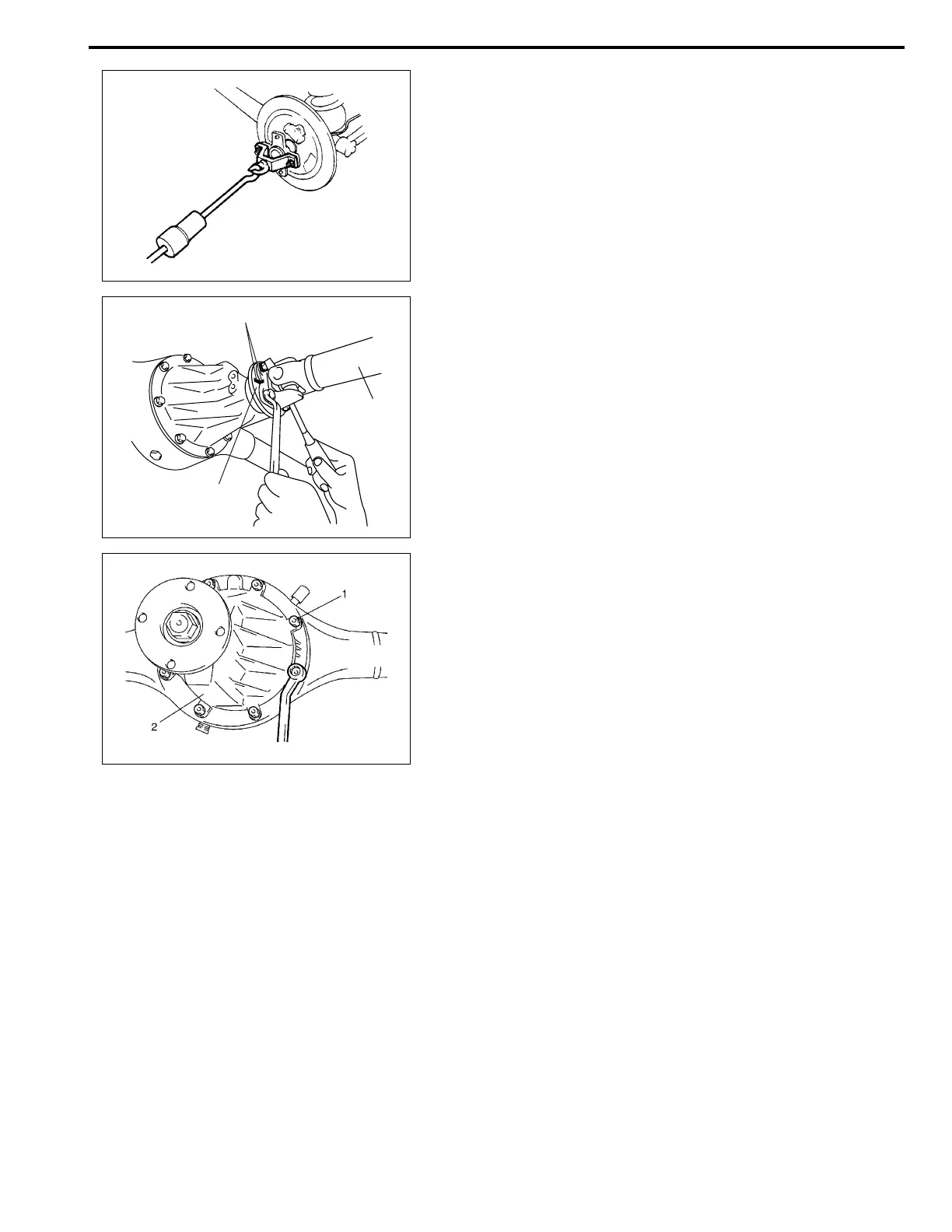

3) Remove brake drum and disconnect parking brake cable
from brake back plate referring to “Parking Brake Lever
Cable Removal and Installation” in Section 5C.
4) Remove axle shafts referring to “Rear Axle Shaft and Wheel
Bearing Remove and Installation (for 4WD Model)” in Sec-
tion 3E.
5) Before removing propeller shaft, give match marks (1) on
companion flange (2) and propeller shaft (3) as shown.
6) Remove differential carrier bolts (1) and differential assembly
(2).
3
1
2
