Phaser 8860/8860MFP Service Manual
Image Output Terminal
Initial Issue
Theory of Operation

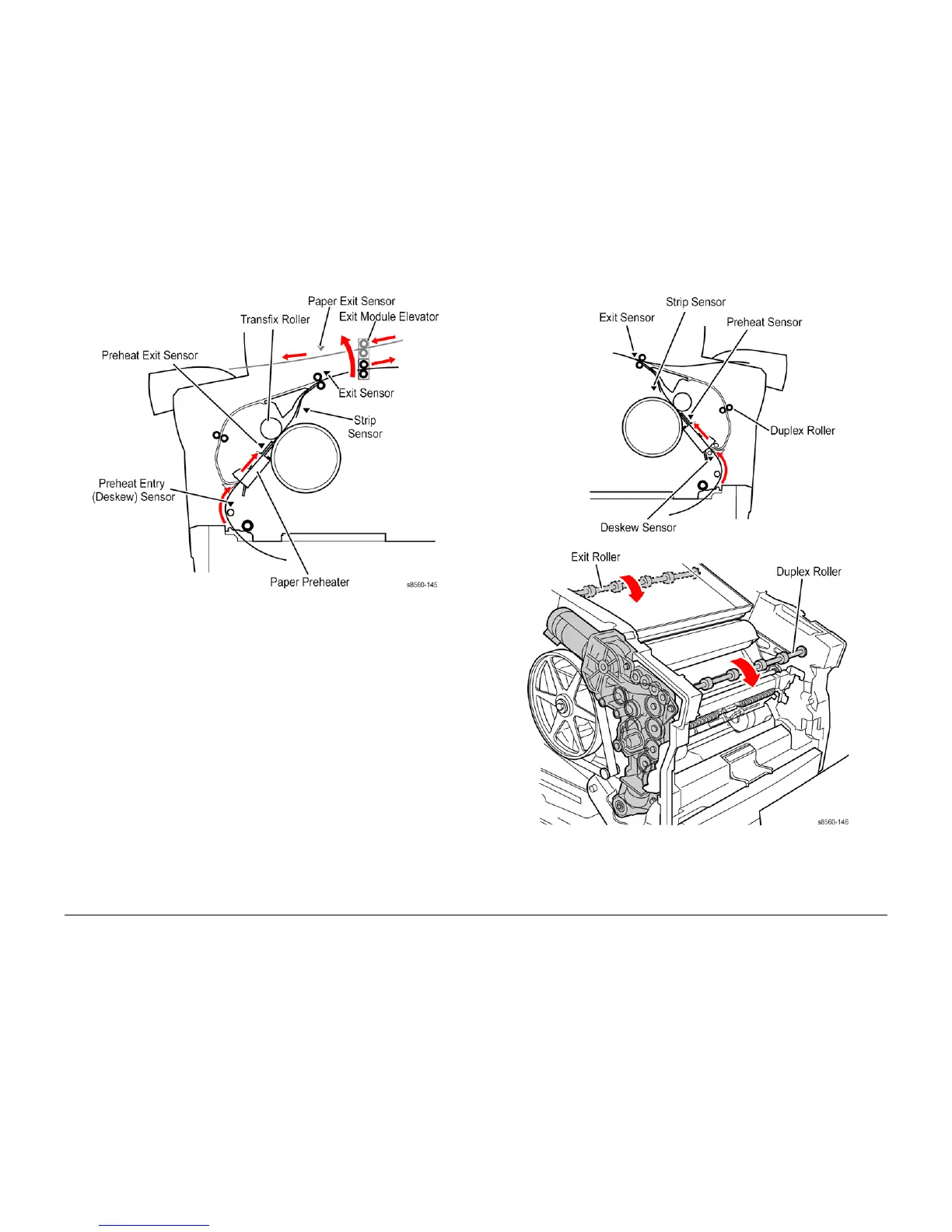

Figure 3 Paper Path Sensors
2-Sided (Duplex) Printing
When duplex printing, the exit rollers pull the paper to a predetermined location. In this posi-
tion, the trailing edge of the paper is adjacent to the exit rollers. The exit rollers then pull the
paper back into the duplex path. From a non-rotating deskew nip, the print continues through
the paper Preheater and transfix system to the exit tray in the same manner as a single-sided
print.
Figure 4 Duplex Drive Components

Xerox Phaser 8860 Specifications

General

Brand	Xerox
Model	Phaser 8860
Category	All in One Printer
Language	English
