Theory of Operation
After the leading edge of the media is beyond the stripper blade, the Stripper Solenoid is de-
energized. Once the solenoid is de-energized, the solenoid return spring provides force to
move the solenoid plunger out of the solenoid coil which rotates the Stripper Carriage back to
its ready position.
The deskew rollers are not driven during transfixing. The Media Drive rotates the Exit Rollers in
the correct direction to pull the paper out with the deskew clutch deenergized.
As the Process Drive lifts the Transfix Roller, the Exit Rollers transport the media into the Exit
Module. The media is then fed out over the ink loader until the trailing edge is at the nip of the
Exit Module roller. In the 8860MFP, the Elevator Motor raises the carriage assembly to the top
position, where it then stops and the Elevator motor drives the Exit Module rollers until the
media exits ending the print cycle.

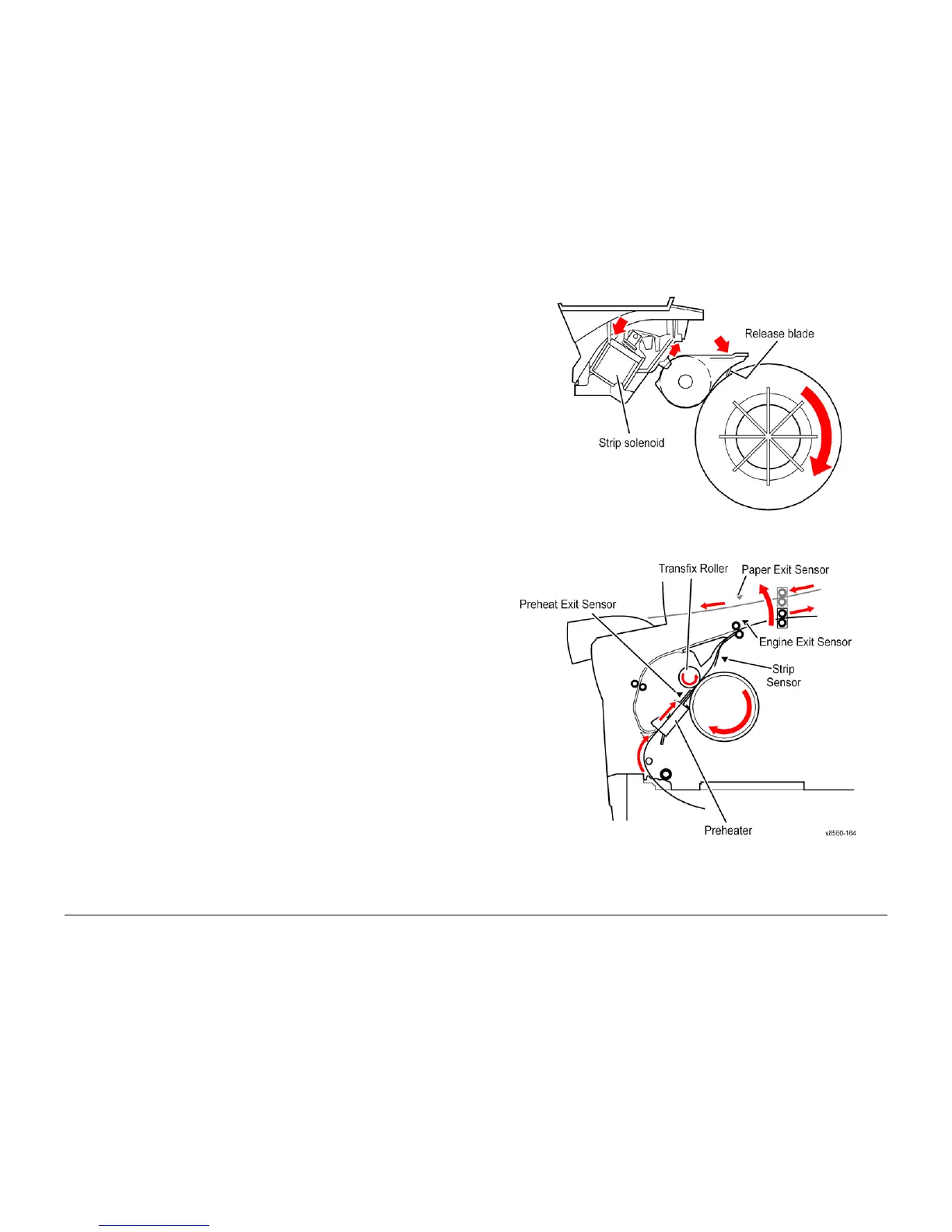

Figure 23 Exit Path
