Xerox VersaLink B7035

April 2017
5-118
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 80.45
Launch Issue
Parts Lists

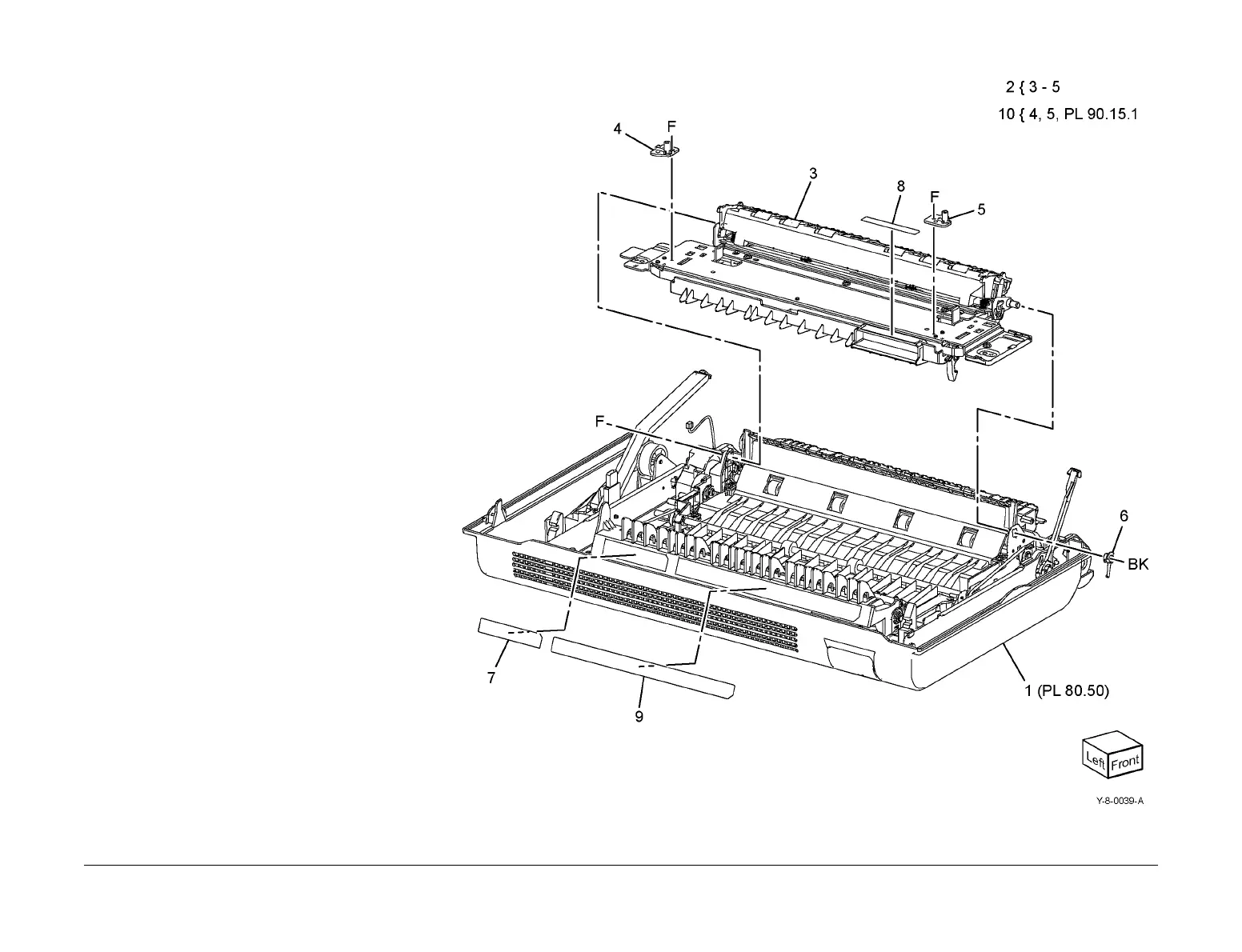

PL 80.45 LH Transport Assembly
Item Part Description
1 – LH cover assembly (REF: PL
80.50)
2 – Inner duplex chute assembly
3 – Inner duplex chute (P/O PL 80.45
Item 2)
4 – Holder-in (P/O PL 80.45 Item 2)
5 – Holder-out (P/O PL 80.45 Item 1)
6 – Bearing (Not Spared)
7 – Caution label (Not Spared)
8 – Inner label (Not Spared)
9 – Label (Not Spared)
10 – Transfer chute assembly (Not
Spared)
