April 2017
5-75
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 60.25
Parts Lists
Launch Issue

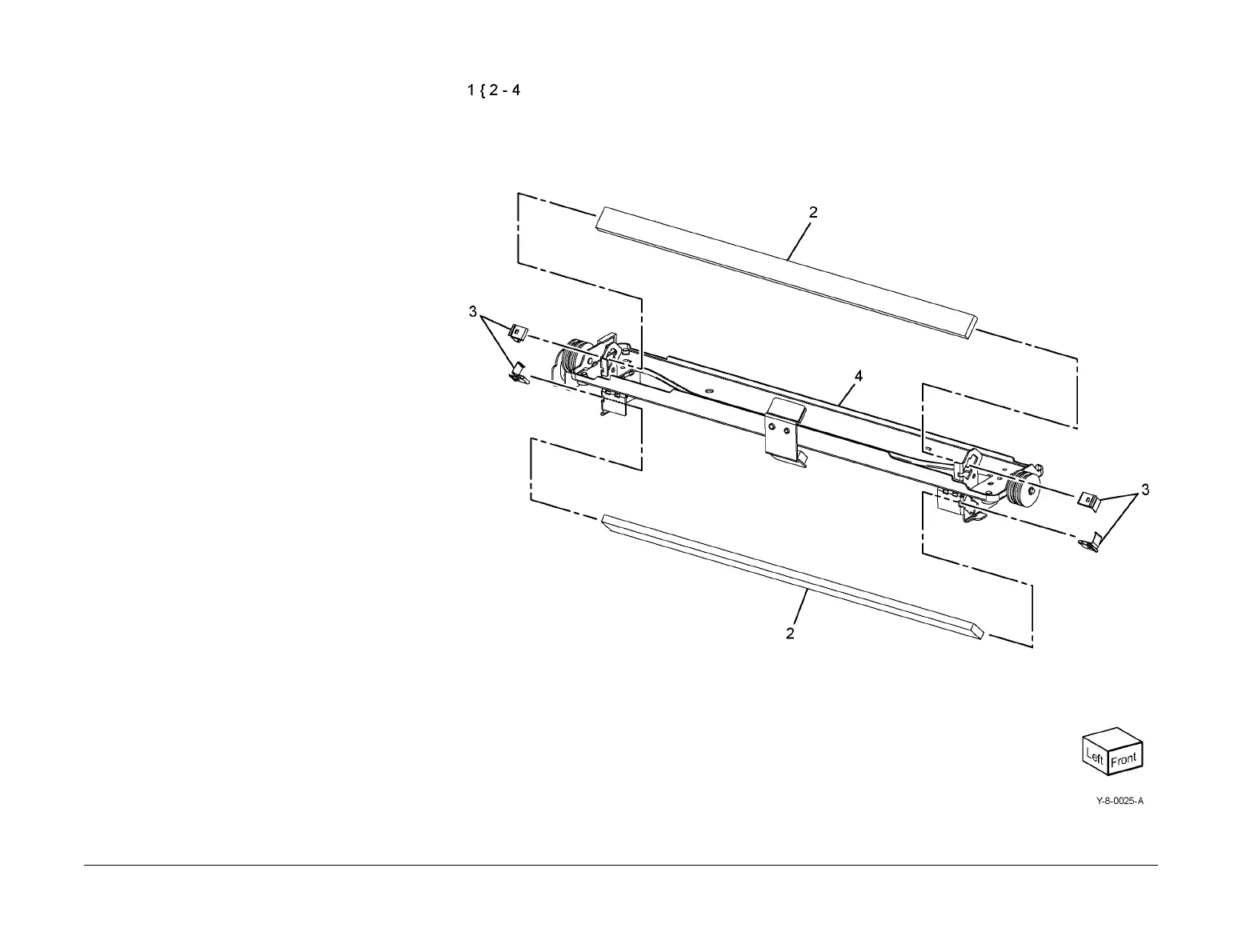

PL 60.25 Half Rate Carriage
Item Part Description
1 – Half rate carriage assembly (REF:
PL 60.15 Item 2)
2 – Mirror 2 (P/O PL 60.25 Item 1)
3 – Mirror Sl clip (P/O PL 60.25 Item 1)
4 – Half rate carriage (P/O PL 60.25
Item 1)
To Next Page
