April 2017
5-121
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 80.60
Parts Lists
Launch Issue

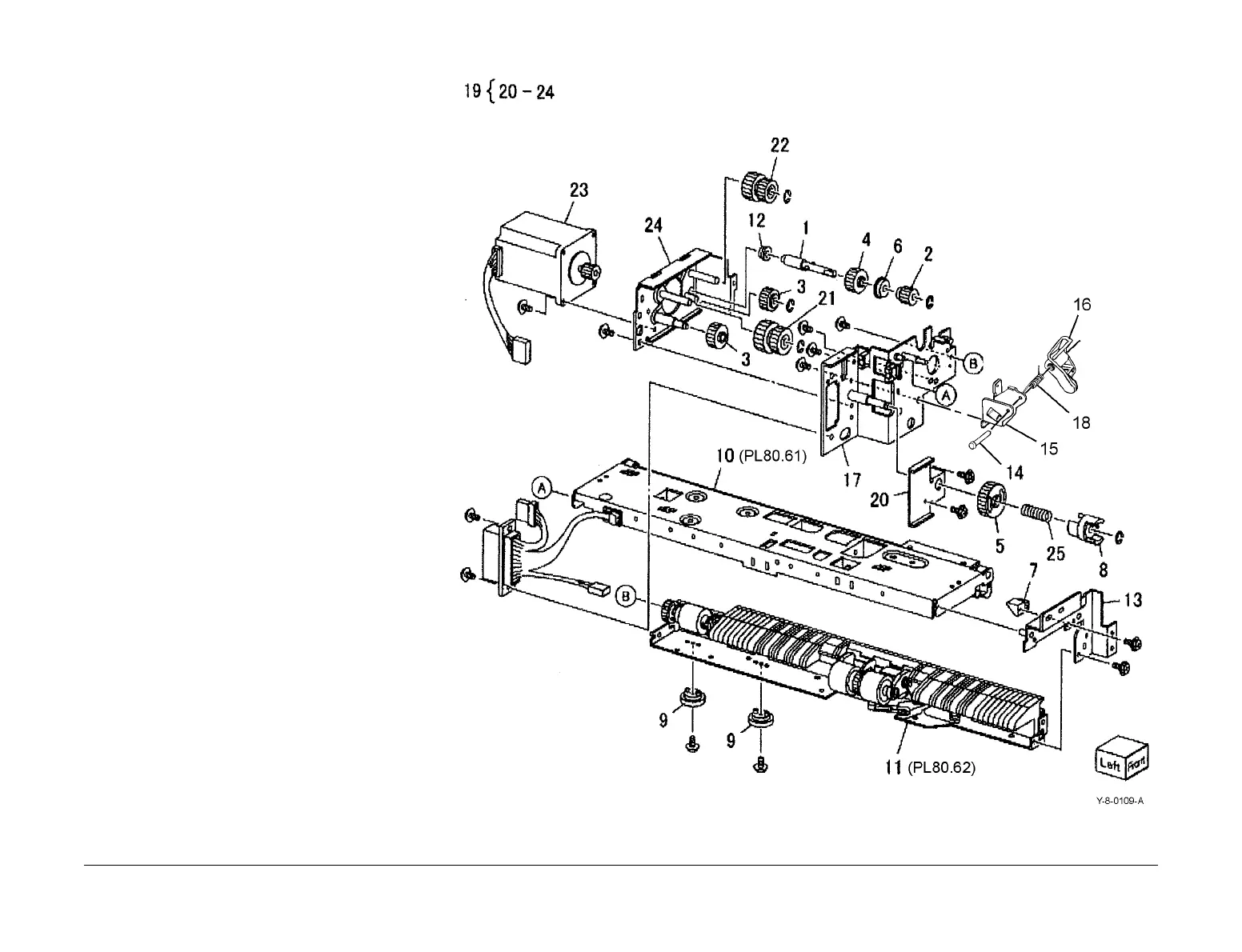

PL 80.60 HCF Feeder (1 of 3)
Item Part Description
1 – Shaft (P/O PL 70.45 Item 11)
2 007E78760 Gear 19T
3 007E78770 Gear 25T
4 007E78780 Gear 25T
5 007E78790 Gear 40T
6 013E25530 Bearing
7 – Block (P/O PL 70.45 Item 11)
8 – Spacer (P/O PL 70.45 Item 11)
9 019E56470 Holder
10 – Upper feeder assembly (P/O PL
70.45 Item 11)
11 – Lower feeder assembly (P/O PL
70.45 Item 11)
12 413W66250 Ball bearing
13 – Front frame (P/O PL 70.45 Item 11)
14 – Pin (P/O PL 70.45 Item 11)
15 – Down bracket (P/O PL 70.45 Item
11)
16 – Link bracket (P/O PL 70.45 Item
11)
17 – Rear frame (P/O PL 70.45 Item 11)
18 – Tension spring (P/O PL 70.45 Item
11)
19 – Lift/Motor frame (P/O PL 70.45 Item
11)
20 – Bracket (P/O PL 80.60 Item 19)
21 007K88520 Gear 23T/27T
22 007K88530 Gear 31T/36T
23 127K37901 HCF feed/lift motor (MOT78-003)
(REP 80.27)
24 – Plate (P/O PL 80.60 Item 19)
25 – Spring (P/O PL 70.45 Item 11)
