Xerox VersaLink B7035

April 2017
5-77
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 60.35
Parts Lists
Launch Issue

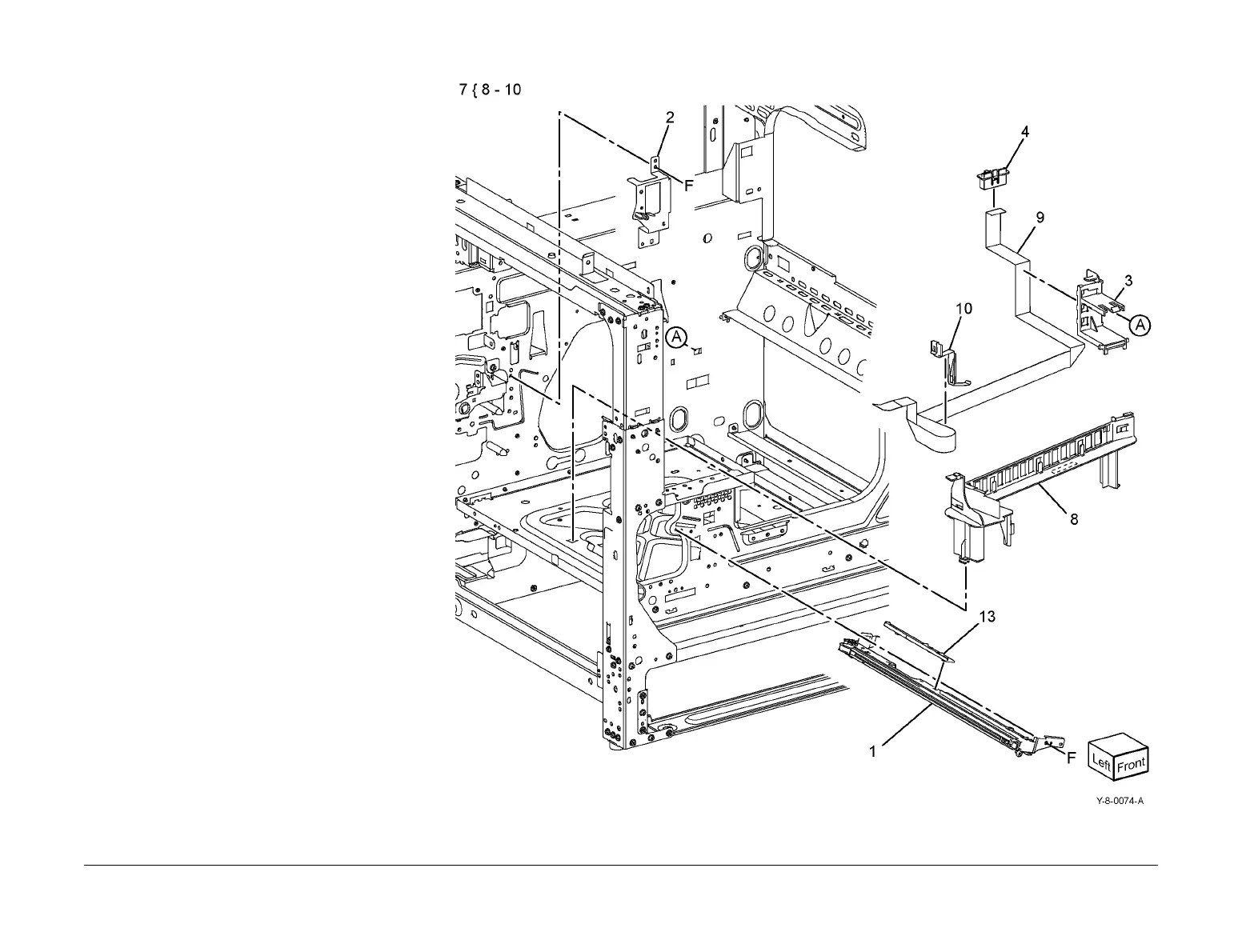

PL 60.35 LPH
Item Part Description
1 130K89901 Print head assembly (REP 60.8)
2 – Bracket assembly (Not Spared)
3 – Cable guide (Not Spared)
4 – Cable guard (Not Spared)
5 – Not used
6 – Not used
7 952K31220 Harness assembly
8 – FFC guide (P/O PL 60.35 Item 7)
9 – FFC cable (P/O PL 60.35 Item 7)
(REP 60.9)
10 – FFC conductor (P/O PL 60.35 Item
7)
11 – Not used
12 – Not used
13 – CRU guide (Not Spared)
