Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 90.10
Parts Lists
Launch Issue

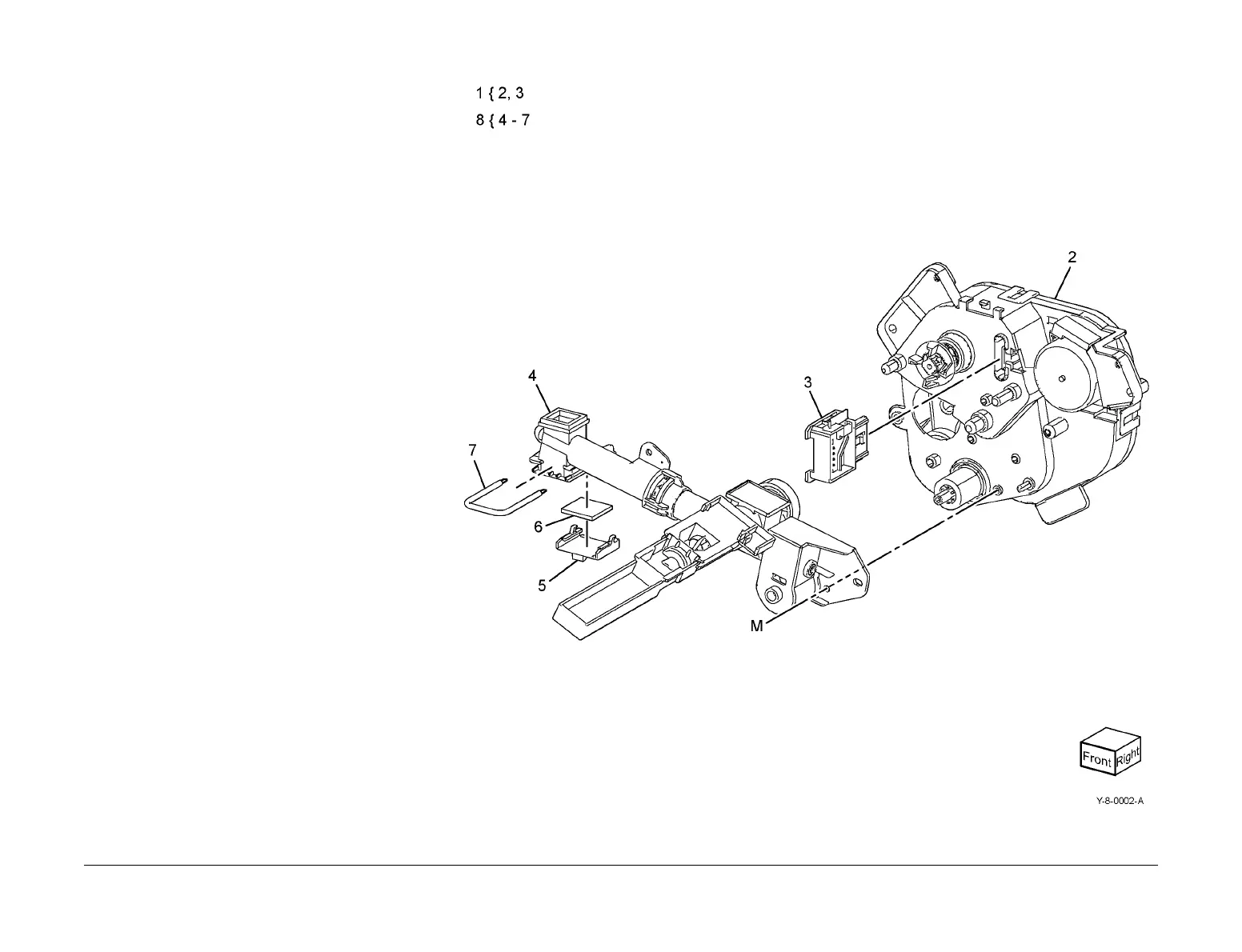

PL 90.10 Dispenser Component
Item Part Description
1 – Dispenser drive assembly (Not
Spared)
2 – Toner dispense drive (P/O PL
90.10 Item 1)
3 – Toner CRUM connector (P/O PL
90.10 Item 1)
4 – Pipe assembly (P/O PL 90.10 Item
8)
5 – Shutter (P/O PL 90.10 Item 8)
6 – Seal (P/O PL 90.10 Item 8)
7 – Spring (P/O PL 90.10 Item 8)
8 – Pipe assembly (Not Spared)
