Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 13.05
Parts Lists
Launch Issue

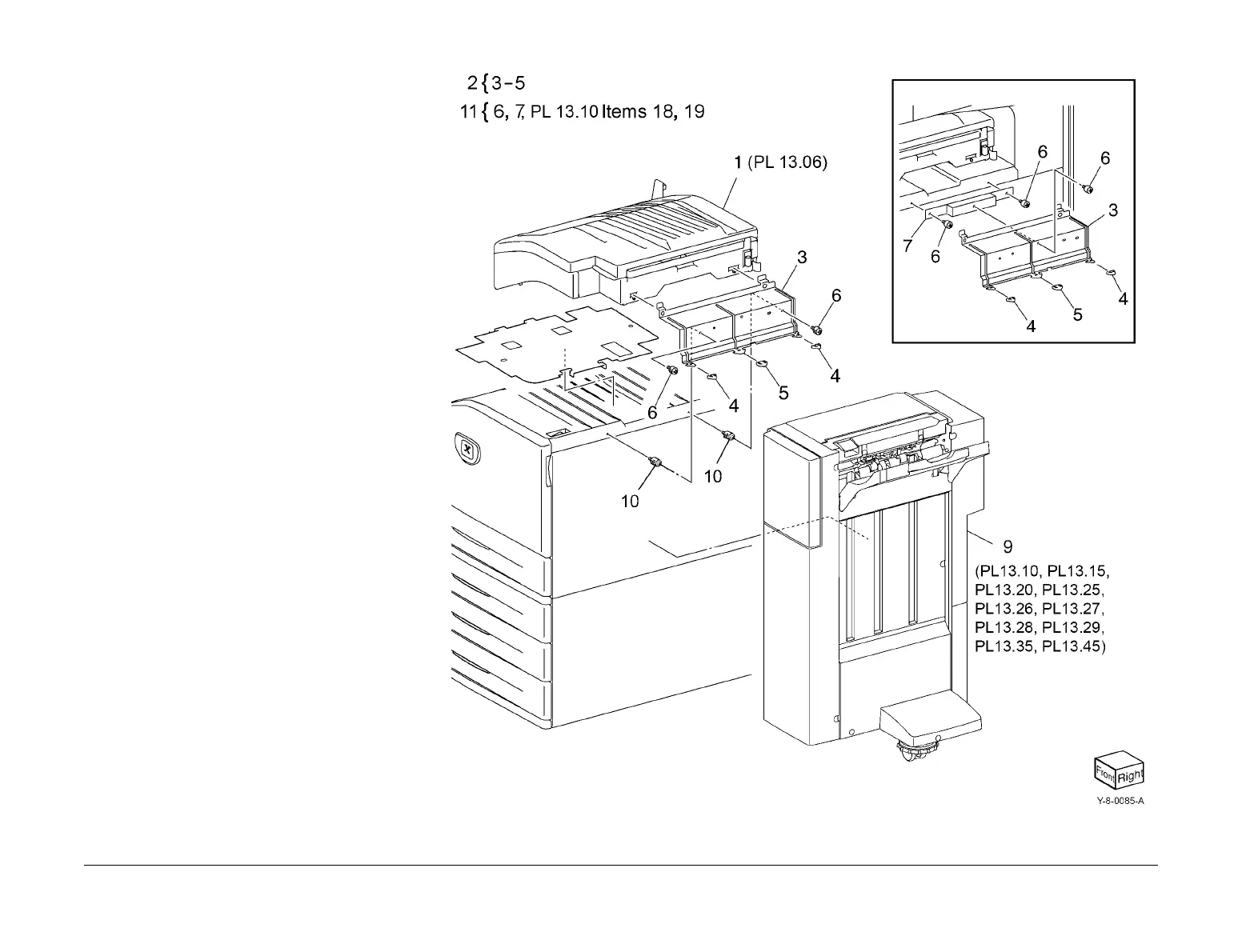

PL 13.05 H-Transport Assembly (1 of
5)
Item Part Description
1 859K04770 H-Transport assembly (REP 13.1)
2 068K59494 Docking plate assembly
3 – Docking plate (P/O PL 13.05 Item
2)
4 – Side guide (P/O PL 13.05 Item 2)
5 – Center guide (P/O PL 13.05 Item 2)
6 026K81200 Thumb screw
7 868E51550 Docking bracket
8 – Not used
9 – Finisher LX assembly (Not Spared)
(REP 13.5)
10 – HTU spacer (Not Spared)
11 – Gap kit (Not Spared)
