REP 80.5
Repairs and Adjustments
Launch Issue
REP 80.5 1TM Takeaway Motor
Parts List on PL 70.17
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Remove the rear cover, Figure 1:
a. Remove four screws (1).
b. Remove the rear cover (2).

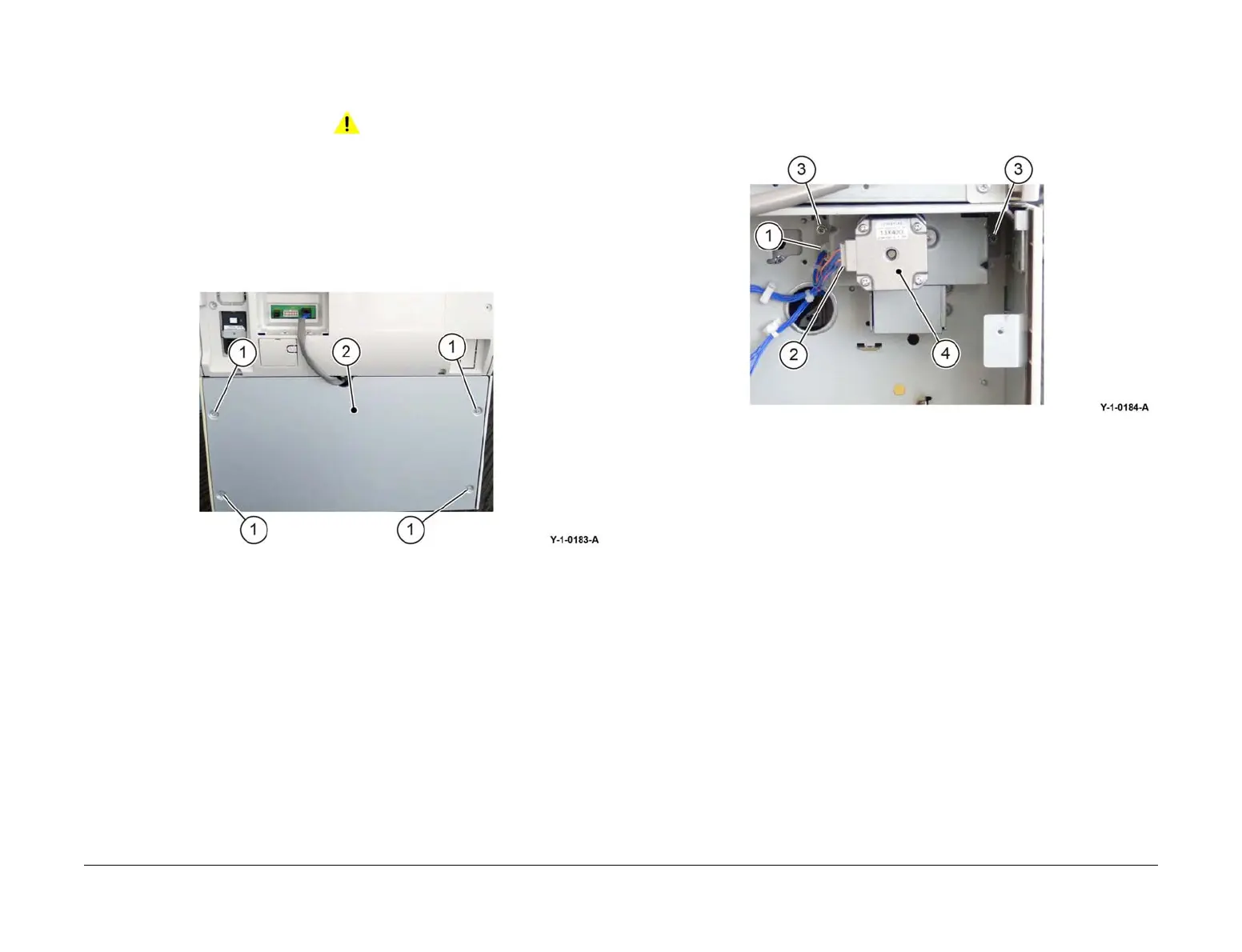

Figure 1 Rear cover removal
2. Remove the 1TM takeaway motor, Figure 2:
a. Release the clamp (1).
b. Disconnect the connector (2).
c. Remove two screws (3).
d. Remove the 1TM takeaway motor (4).
Figure 2 1TM takeaway motor removal
Replacement
The replacement is the reverse of the removal procedure.
