Xerox VersaLink B7035 Service Manual

April 2017
4-202
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 80.24
Launch Issue
Repairs and Adjustments
REP 80.24 HCF Retard Lever Spring
Parts List on PL 80.62
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Remove the HCF feeder, REP 80.21.
2. Place the feeder on a flat surface. Release the green lever to open the upper feeder
assembly.
3. Remove the retard lever spring, Figure 1:
a. Remove the lower chute (1).
b. Remove the plastic cover (2).
c. Remove the retard roll (3).
d. Remove the E-rings on the lever and spring.
e. Remove the lever (4).
NOTE: Note how the spring extension fits into the lever.
f. Remove the retard lever spring (5).

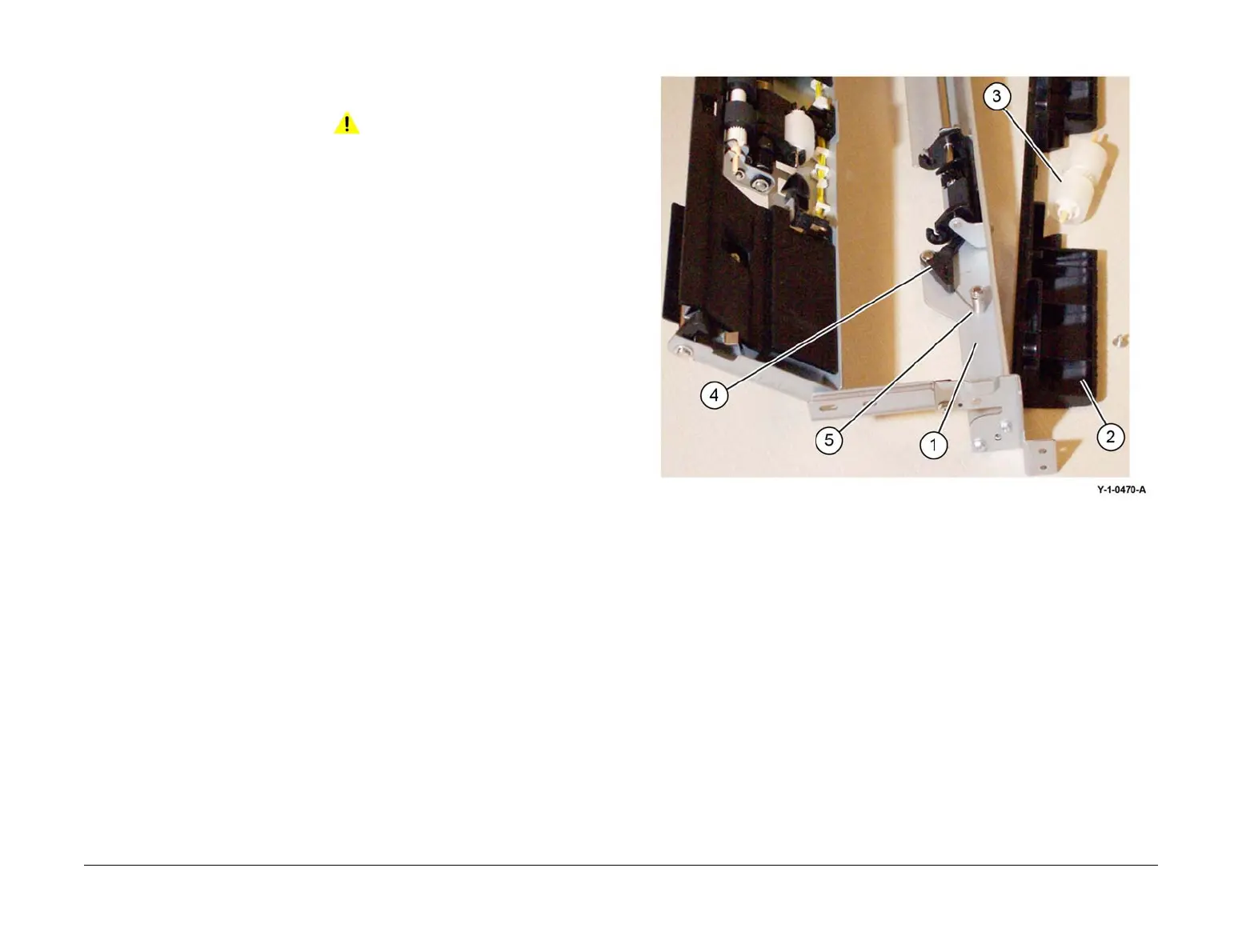

Figure 1 Retard lever spring
Replacement
1. The replacement is the reverse of the removal procedure.
2. Ensure that the plastic pads on the lower chute fit in the track before pushing it in.

Xerox VersaLink B7035 Specifications

General

Duplex printing	Yes
Print technology	LED
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	9.1 s
Print speed (black, normal quality, A4/US Letter)	35 ppm
Copier resize	25 - 400 %
Maximum copy resolution	600 x 600 DPI
Maximum number of copies	999 copies
Time to first copy (black, normal)	5.4 s
Scan to	E-mail, FTP, SMB, USB
Scanner type	-
Input color depth	24 bit
Faxing	Mono faxing
Modem speed	33.6 Kbit/s
Printing colors	Black
Maximum duty cycle	129000 pages per month
Page description languages	HP-GL, PCL 5e, PCL 6, TIFF, XPS
Internal memory	2048 MB
Processor cores	2
Processor frequency	1050 MHz
Control type	Touch
Product color	Black, White
Display diagonal	7 \
Market positioning	Business
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Mobile printing technologies	Apple AirPrint, Google Cloud Print
Standard interfaces	Ethernet, NFC, USB 3.2 Gen 1 (3.1 Gen 1)
Optional connectivity	Wireless LAN
USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	1
Power consumption (average operating)	- W
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Y
Linux operating systems supported	Fedora 24, openSUSE 13.2
Other operating systems supported	IBM AIX 7.2
Server operating systems supported	Windows Server 2003, Windows Server 2008, Windows Server 2008 R2, Windows Server 2012
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional x64, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Pro x64, Windows 8 x64
Sustainability certificates	ENERGY STAR
Total input capacity	- sheets
Paper tray media types	Bond paper, Card stock, Envelopes, Heavy paper, Labels, Letterhead, Plain paper, Pre-Printed, Recycled paper
ISO A-series sizes (A0...A9)	A3, A4
Maximum ISO A-series paper size	A3

Weight and Dimensions

Depth	670.8 mm
Width	590 mm
Height	767.9 mm
Weight	- g
