Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 13.25
Parts Lists
Launch Issue

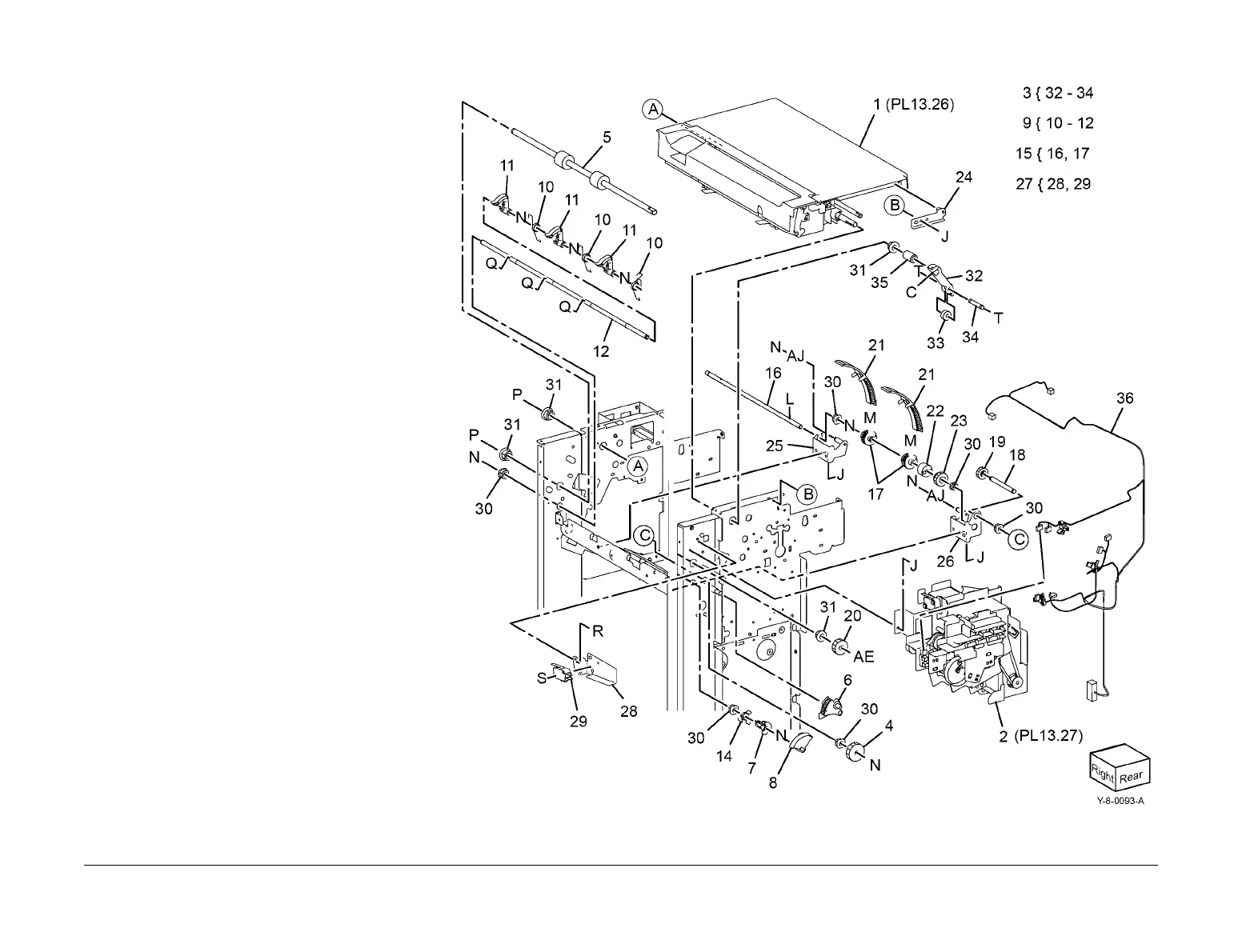

PL 13.25 Office Finisher LX Ejector (1
of 5)
Item Part Description
1 – Eject cover assembly (Not Spared)
2 – Eject assembly (Not Spared)
3 031K93790 Clamp arm assembly
4 807E21400 Gear (31T)
5 059K55111 Eject roller
6 807E21380 Sector gear (72T)
7 807E21391 Gear (18T)
8 120E29773 Actuator
9 006K86731 Set clamp shaft assembly
10 809E79060 Spring
11 – Set clamp holder (P/O PL 13.25
Item 9)
12 – Shaft (P/O PL 13.25 Item 9)
13 – Not used
14 809E79080 Spring
15 006K86741 Guide paper shaft assembly
16 – Guide paper shaft (P/O PL 13.25
Item 15)
17 – Gear (20T) (P/O PL 13.25 Item 15)
18 – Shaft (Not Spared)
19 807E21420 Gear (19T)
20 807E21370 Gear (25T)
21 038E36490 Guide paper (left/right)
22 005K83720 Clutch
23 807E45590 Gear (23T)
24 – Stopper (Not Spared)
25 – Bracket (front) (Not Spared)
26 – Bracket (rear) (Not Spared)
27 – Option switch assembly (Not
Spared)
28 – Bracket (P/O PL 13.25 Item 27)
29 – Option switch (P/O PL 13.25 Item
27)
30 413W11660 Sleeve bearing
31 – Bearing (Not Spared)
32 – Clamp arm (P/O PL 13.25 Item 3)
33 – Roll (P/O PL 13.25 Item 3)
34 – Shaft (P/O PL 13.25 Item 3)
35 – Spacer (Not Spared)
36 962K60433 Wire harness
