April 2017
5-126
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 90.05
Launch Issue
Parts Lists

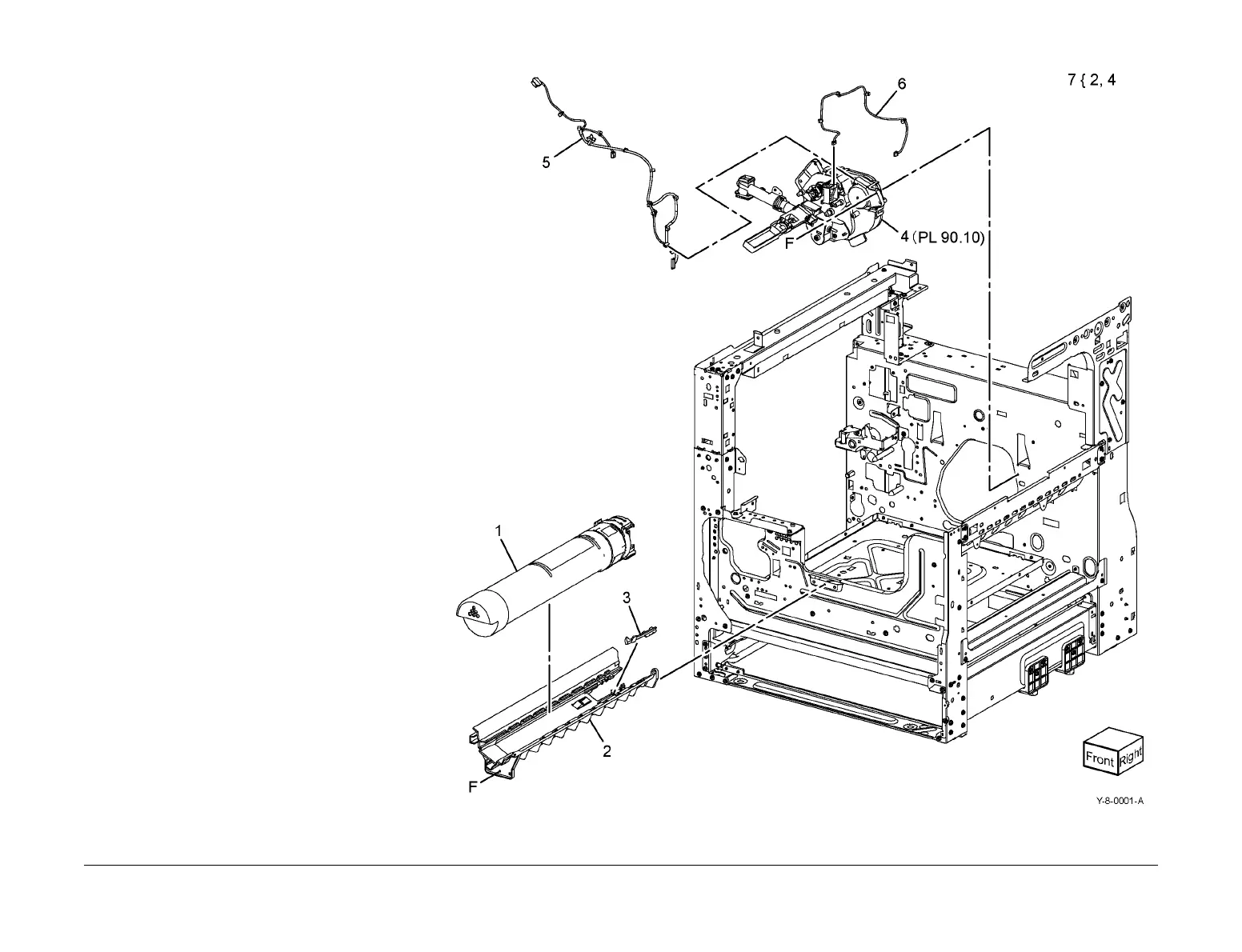

PL 90.05 Toner Cartridge, Dispenser
Item Part Description
1 Toner cartridge (REF: PL 26.05)
2 Cartridge guide (P/O PL 90.05 Item
7)
3 Stopper (Not Spared)
4 052K13880 Dispenser pipe assembly (P/O PL
90.10) (REP 90.2)
5 952K21290 Motor harness
6 952K21410 Wire harness (CRUM)
7 Dispenser pipe unit (Not Spared)
(REP 90.1)
