Xerox VersaLink B7035 Service Manual

April 2017
4-233
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
ADJ 60.1
Repairs and Adjustments
Launch Issue
ADJ 60.1 Full/Half Rate Carriage Position Adjustment
Parts List on PL 60.15
Purpose
To adjust the position of the full rate carriage and half rate carriage.
Adjustment
WARNING
Ensure that the electricity to the machine is switched off while performing tasks that do
not need electricity. Refer to GP 10. Disconnect the power cord. Electricity can cause
death or injury. Moving parts can cause injury.
NOTE: Adjust the position of the carriages at the front and rear separately. Only the procedure
for the rear is described here. The procedure for the front is the same.
1. Open DADF.
2. Remove the document glass, REP 60.1.
CAUTION
Do not remove the four screws that secure the lens base.

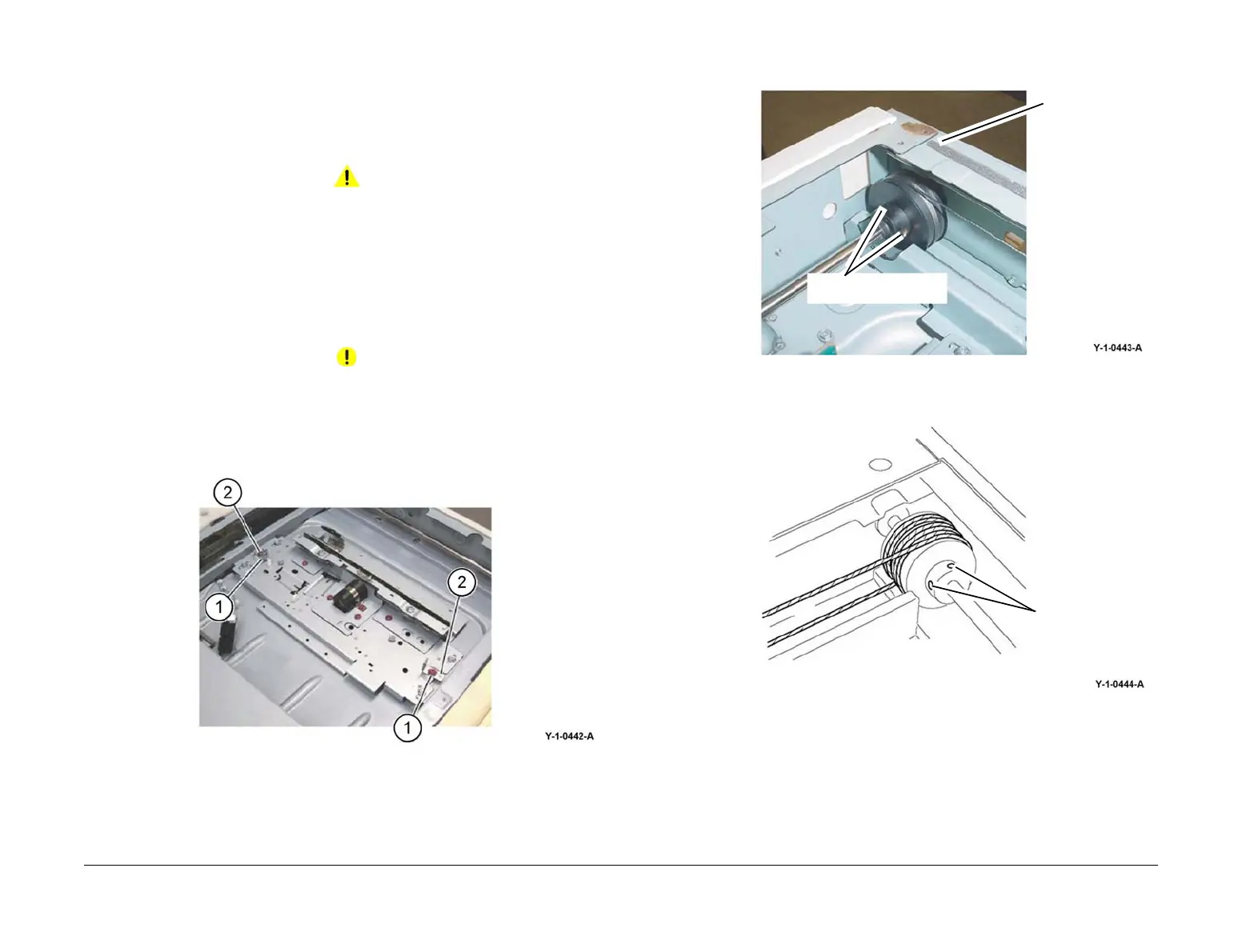

3. Remove the alignment pins from the lens assembly, Figure 1:
a. Remove two screws (1).
b. Remove the alignment pins (2).
Figure 1 Alignment pins
4. Check that the pulley at the front side is firmly secured. If the pulley is loose, tighten both
set screws, Figure 2.
Figure 2 Front set screws
5. Loosen the two set screws that secure the pulley at the rear, Figure 3.
Figure 3 Rear set screws
Set screws
Front
Set screws
Rear

Xerox VersaLink B7035 Specifications

General

Duplex printing	Yes
Print technology	LED
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	9.1 s
Print speed (black, normal quality, A4/US Letter)	35 ppm
Copier resize	25 - 400 %
Maximum copy resolution	600 x 600 DPI
Maximum number of copies	999 copies
Time to first copy (black, normal)	5.4 s
Scan to	E-mail, FTP, SMB, USB
Scanner type	-
Input color depth	24 bit
Faxing	Mono faxing
Modem speed	33.6 Kbit/s
Printing colors	Black
Maximum duty cycle	129000 pages per month
Page description languages	HP-GL, PCL 5e, PCL 6, TIFF, XPS
Internal memory	2048 MB
Processor cores	2
Processor frequency	1050 MHz
Control type	Touch
Product color	Black, White
Display diagonal	7 \
Market positioning	Business
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Mobile printing technologies	Apple AirPrint, Google Cloud Print
Standard interfaces	Ethernet, NFC, USB 3.2 Gen 1 (3.1 Gen 1)
Optional connectivity	Wireless LAN
USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	1
Power consumption (average operating)	- W
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Y
Linux operating systems supported	Fedora 24, openSUSE 13.2
Other operating systems supported	IBM AIX 7.2
Server operating systems supported	Windows Server 2003, Windows Server 2008, Windows Server 2008 R2, Windows Server 2012
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional x64, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Pro x64, Windows 8 x64
Sustainability certificates	ENERGY STAR
Total input capacity	- sheets
Paper tray media types	Bond paper, Card stock, Envelopes, Heavy paper, Labels, Letterhead, Plain paper, Pre-Printed, Recycled paper
ISO A-series sizes (A0...A9)	A3, A4
Maximum ISO A-series paper size	A3

Weight and Dimensions

Depth	670.8 mm
Width	590 mm
Height	767.9 mm
Weight	- g
