Xerox VersaLink B7035 Service Manual

April 2017
5-100
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 70.66
Launch Issue
Parts Lists

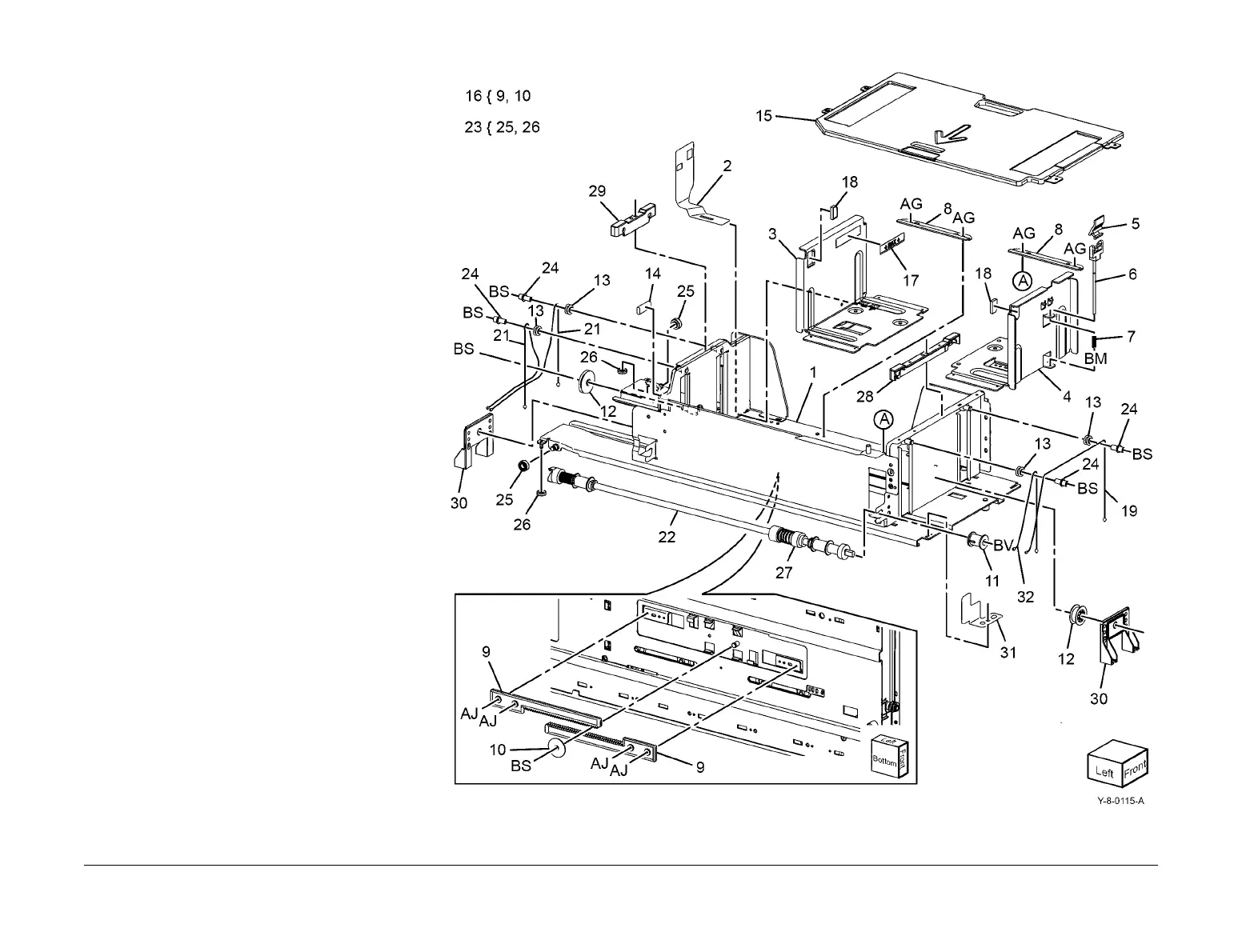

PL 70.66 TTM (2 of 3)
Item Part Description
1 – Tray 3 cassette assembly (Not
Spared)
2 – Size actuator (Not Spared)
3 – Side rear guide (Not Spared)
4 – Side front guide (Not Spared)
5 – Knob (Not Spared)
6 – Knob assembly (Not Spared)
7 – Spring (Not Spared)
8 – Bracket (Not Spared)
9 – Rack gear (P/O PL 70.66 Item 16)
10 807E32730 Pinion
11 – Pulley (Not Spared)
12 – Pulley (Not Spared)
13 – Pulley (Not Spared)
14 – Gasket (Not Spared)
15 – Bottom plate (Not Spared)
16 604K68260 Rack gear and pinion kit
17 – Label (Max) (Not Spared)
18 819E04150 Pad
19 – Front lift cable (long) (Not Spared)
20 – Not used
21 – Rear lift cable (Not Spared)
22 006K35290 Lift shaft (REP 70.9)
23 604K68160 Roller kit
24 – PL shaft (Not Spared)
25 – Side roller (P/O PL 70.66 Item 23)
26 – Lower roller (P/O PL 70.66 Item 23)
27 019K17181 Brake assembly (REP 70.9)
28 – Guide - WF (Not Spared)
29 – Guide - W (Not Spared)
30 – Guide - WL (Not Spared)
31 – Spring (Not Spared)
32 – Front lift cable (short) (Not Spared)

Xerox VersaLink B7035 Specifications

General

Duplex printing	Yes
Print technology	LED
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	9.1 s
Print speed (black, normal quality, A4/US Letter)	35 ppm
Copier resize	25 - 400 %
Maximum copy resolution	600 x 600 DPI
Maximum number of copies	999 copies
Time to first copy (black, normal)	5.4 s
Scan to	E-mail, FTP, SMB, USB
Scanner type	-
Input color depth	24 bit
Faxing	Mono faxing
Modem speed	33.6 Kbit/s
Printing colors	Black
Maximum duty cycle	129000 pages per month
Page description languages	HP-GL, PCL 5e, PCL 6, TIFF, XPS
Internal memory	2048 MB
Processor cores	2
Processor frequency	1050 MHz
Control type	Touch
Product color	Black, White
Display diagonal	7 \
Market positioning	Business
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Mobile printing technologies	Apple AirPrint, Google Cloud Print
Standard interfaces	Ethernet, NFC, USB 3.2 Gen 1 (3.1 Gen 1)
Optional connectivity	Wireless LAN
USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	1
Power consumption (average operating)	- W
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Y
Linux operating systems supported	Fedora 24, openSUSE 13.2
Other operating systems supported	IBM AIX 7.2
Server operating systems supported	Windows Server 2003, Windows Server 2008, Windows Server 2008 R2, Windows Server 2012
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional x64, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Pro x64, Windows 8 x64
Sustainability certificates	ENERGY STAR
Total input capacity	- sheets
Paper tray media types	Bond paper, Card stock, Envelopes, Heavy paper, Labels, Letterhead, Plain paper, Pre-Printed, Recycled paper
ISO A-series sizes (A0...A9)	A3, A4
Maximum ISO A-series paper size	A3

Weight and Dimensions

Depth	670.8 mm
Width	590 mm
Height	767.9 mm
Weight	- g
