5. Remove the tray 2 feeder assembly, Figure 2:
a. Disconnect two connectors (1).
b. Remove two screws (2).
c. Remove the tray 2 feeder assembly (3).

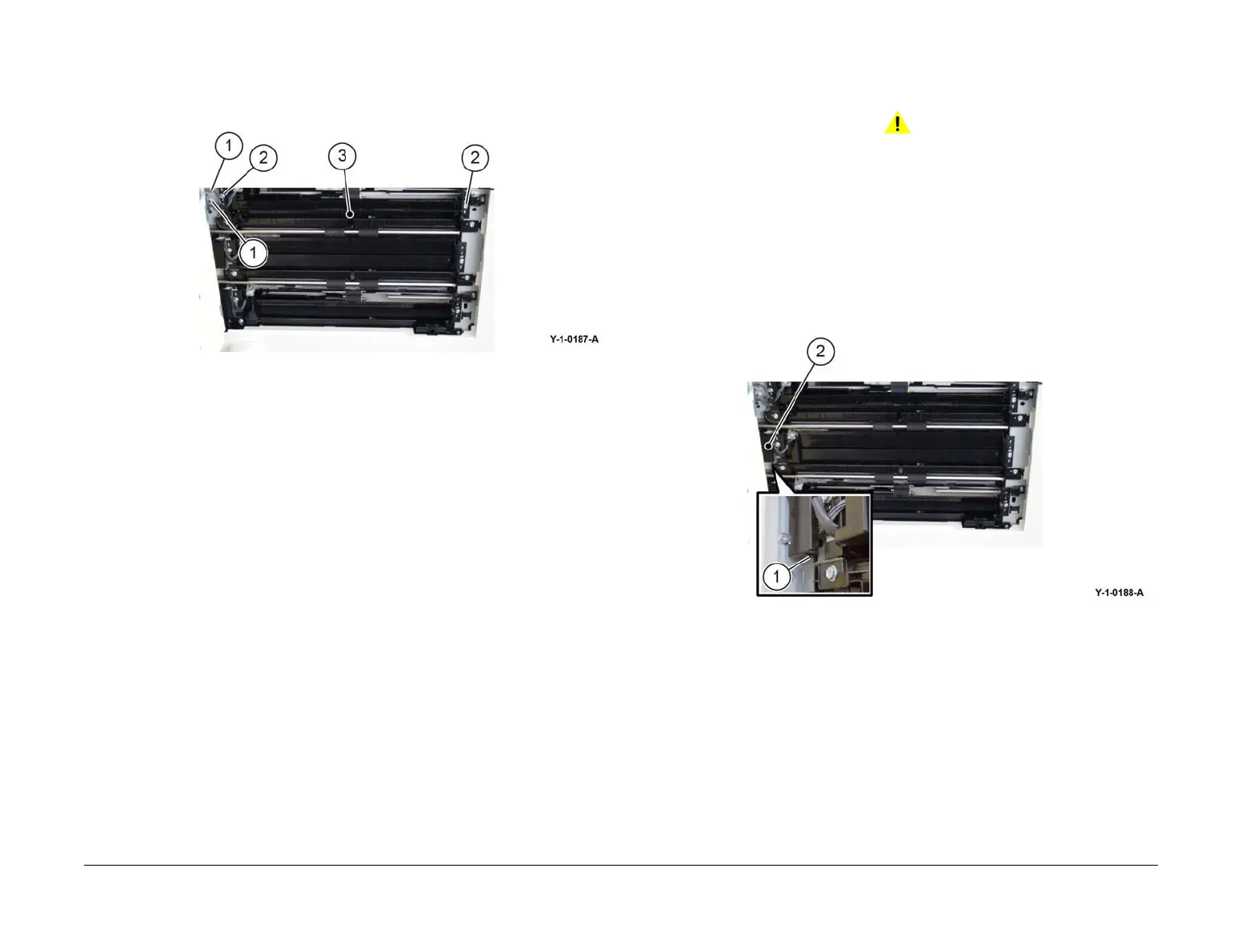

Figure 2 Tray 2 feeder assembly removal
Replacement
1. The replacement is the reverse of the removal procedure.
2. If new tray 2 feeder assembly is installed, enter dC135 HFSI Counter. Reset the HFSI
counter 954-801.
REP 80.8 Tray 3 Feeder Assembly (3TM)
Parts List on PL 80.30
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Pull out tray 3. Remove the paper.
2. Remove tray 3.
3. Open the left cover assembly, PL 70.20 Item 11.
4. Remove the ESD cover, Figure 1:
a. Disengage the hook (1)
b. Remove the ESD cover (2).
Figure 1 ESD cover removal
