Xerox VersaLink B7035

April 2017
5-25
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 10.15
Parts Lists
Launch Issue

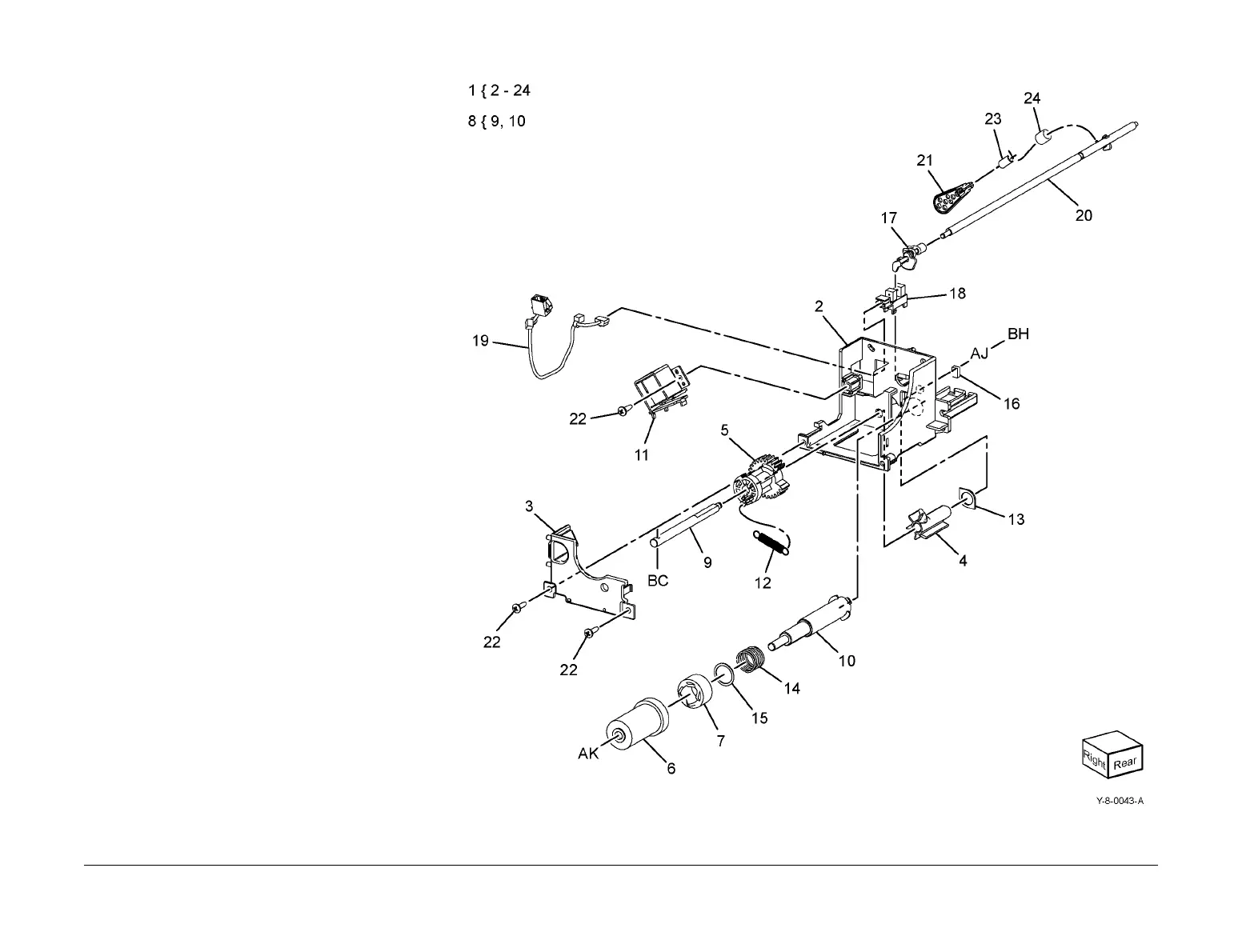

PL 10.15 Exit 1 Base Assembly
Item Part Description
1 – Exit 1 base assembly (Not Spared)
2 – Base exit 1 (P/O PL 10.15 Item 1)
3 – Base exit 1 cover (P/O PL 10.15
Item 1)
4 – Cam screw (P/O PL 10.15 Item 1)
5 – OCT segment gear (P/O PL 10.15
Item 1)
6 – Exit 1 idler gear (P/O PL 10.15 Item
1)
7 – Coupling gear (P/O PL 10.15 Item
1)
8 – Exit 1 shaft assembly (P/O PL
10.15 Item 1)
9 – Cam shaft (P/O PL 10.15 Item 8)
10 – Idler gear shaft (P/O PL 10.15 Item
8)
11 – Exit 1 offset solenoid (SOL77-010)
(P/O PL 10.15 Item 1)
12 – Cam spring (P/O PL 10.15 Item 1)
13 – Cam screw pad (P/O PL 10.15 Item
1)
14 – OCT safety spring (P/O PL 10.15
Item 1)
15 – Exit 1 washer (P/O PL 10.15 Item
1)
16 – OCT back pad (P/O PL 10.15 Item
1)
17 – Full sensor actuator (P/O PL 10.15
Item 1)
18 930W00113 Exit 1 OCT full stack sensor (Q77-
124)
19 – Exit harness assembly (P/O PL
10.15 Item 1)
20 – Full stack B shaft (P/O PL 10.15
Item 1)
21 – Full actuator (P/O PL 10.15 Item 1)
22 – Screw (P/O PL 10.15 Item 1)
23 – Spring pipe (P/O PL 10.15 Item 1)
24 – Spring (P/O PL 10.15 Item 1)
