Xerox VersaLink B7035

April 2017
5-81
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 70.16
Parts Lists
Launch Issue

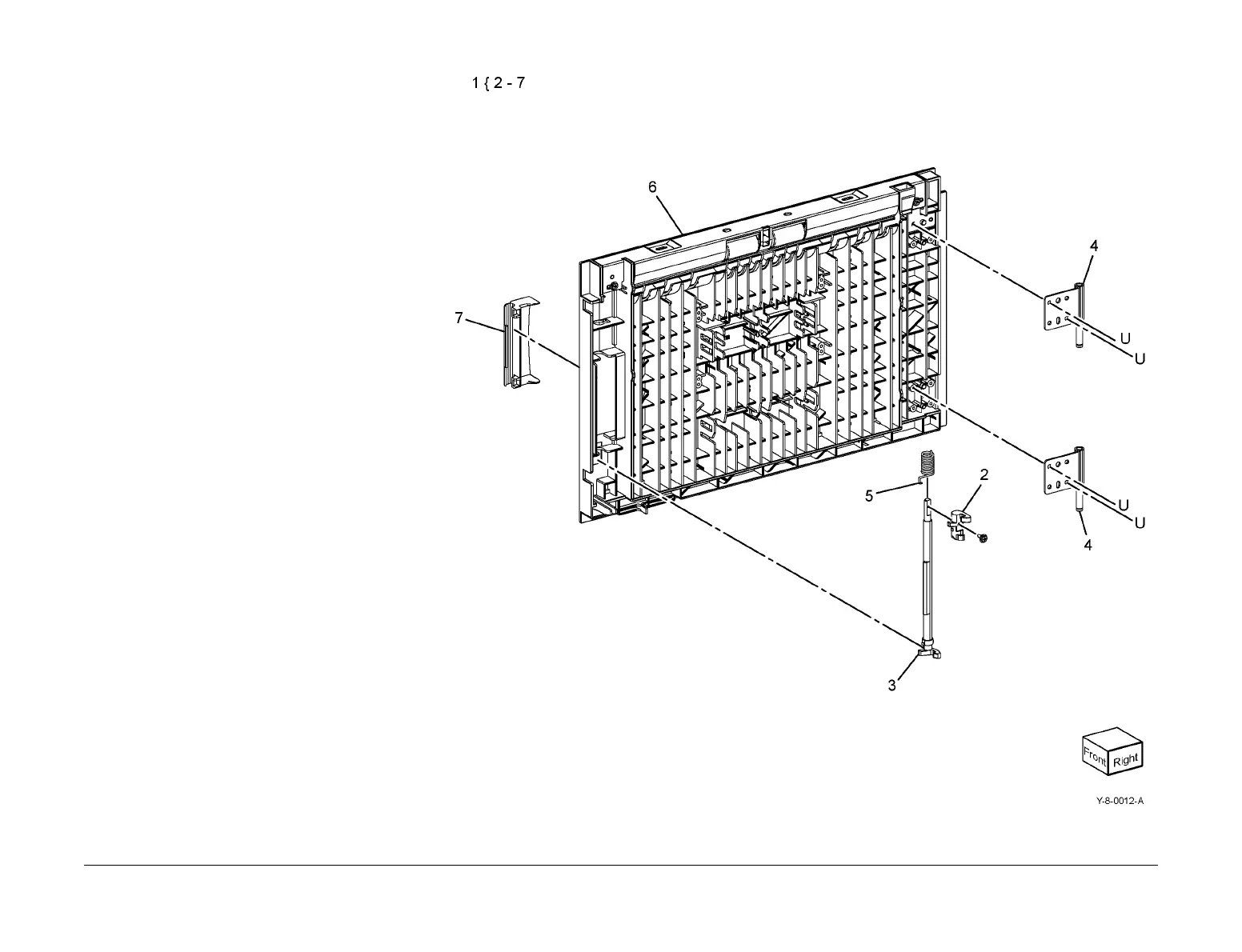

PL 70.16 1TM (2 of 3)
Item Part Description
1 948K03930 Left cover assembly
2 – Hook (P/O PL 70.16 Item 1)
3 – Latch (P/O PL 70.16 Item 1)
4 – Hinge bracket assembly (P/O PL
70.16 Item 1)
5 – Spring (P/O PL 70.16 Item 1)
6 – Cover (P/O PL 70.16 Item 1)
7 – Handle (P/O PL 70.16 Item 1)
