April 2017
4-84
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 12.21, REP 12.22
Launch Issue
Repairs and Adjustments

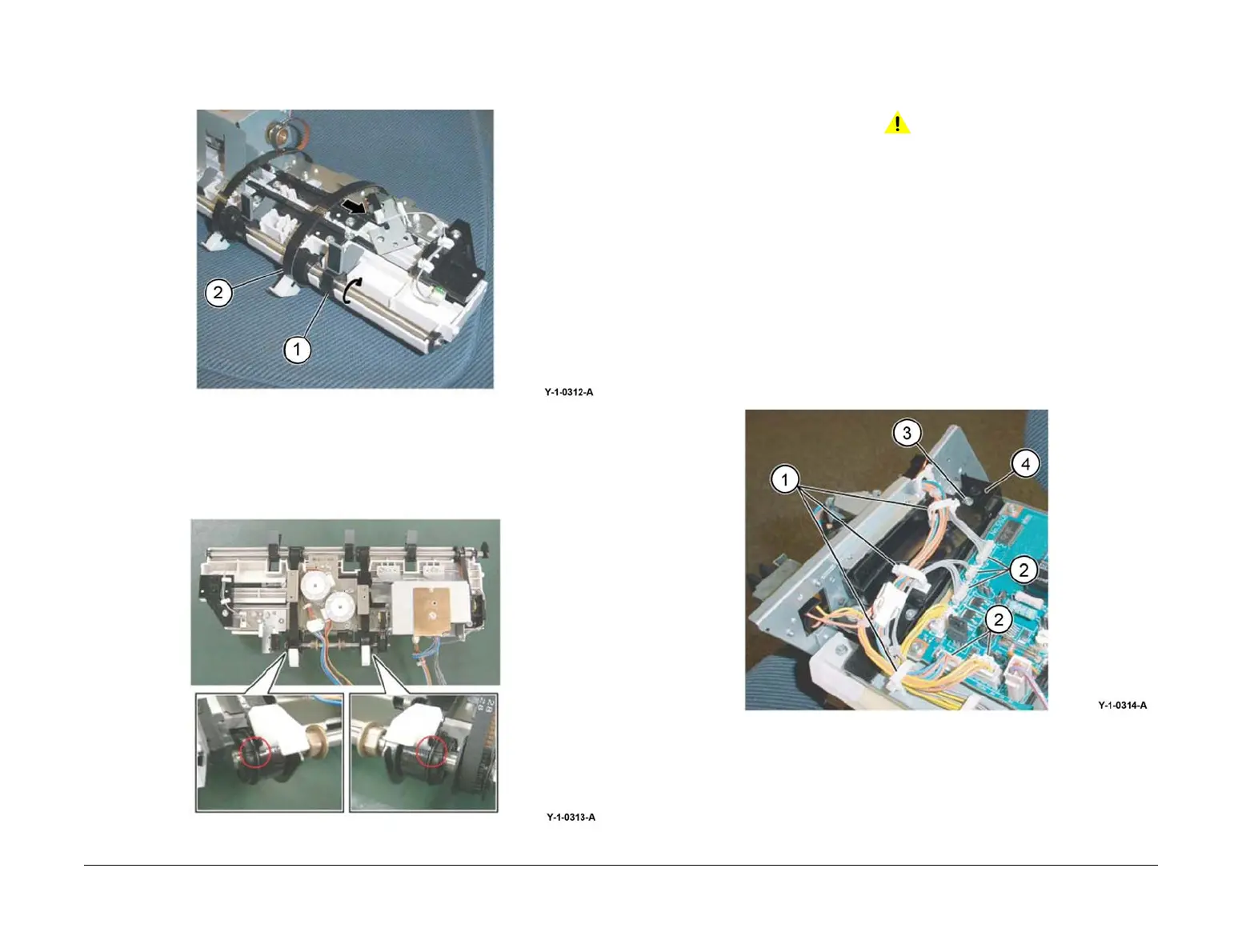

4. Remove the eject belt, Figure 2:
a. Move the blades of the set clamp shaft (1) in the direction of the arrow.
b. Remove the eject belt (2) in the direction of the arrow.
Figure 2 Eject belt removal
Replacement
1. The replacement is the reverse of the removal procedure.
2. Ensure the eject belt is aligned with the marks on the pulleys, Figure 3.
Figure 3 Eject belt installation
REP 12.22 Eject/Set Clamp Motor Assembly
Parts List on PL 12.25
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Remove the integrated office finisher, REP 12.1.
2. Remove the front inner cover, PL 12.05 Item 6.
3. Remove the rear cover, PL 12.05 Item 14.
4. Turn over the integrated office finisher.
5. Remove the bottom cover, PL 12.06 Item 1.
6. Remove the connector bracket, Figure 1:
a. Release the harness from the three clamps (1).
b. Disconnect five connectors (2).
c. Remove two screws (3).
d. Remove the connector bracket (4).
Figure 1 Connector bracket removal
7. Remove the bottom plate, Figure 2:
a. Release the harness from the five clamps (1).
b. Disconnect eight connectors (2).
c. Release the harness from the retainer (3).
d. Remove four screws (4).
e. Remove the bottom plate (5).
To Next Page
