April 2017
4-13
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 3.1
Repairs and Adjustments
Launch Issue
REP 3.1 ESS PWB
Parts List on PL 3.10
Removal
NOTE: A video of this procedure is available on the EDOC. The video is accessible from the
Library menu on the Service Interface.
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
Figure 1 ESD Symbol
CAUTION
Observe ESD procedures during this procedure.
CAUTION
Do not touch the battery. Do not peel off the protective tape.
CAUTION
When installing a new ESS PWB and a new drive PWB at the same time, first install the new
ESS PWB, then switch on the machine, GP 10. If the new ESS PWB installation is successful,
switch off the machine, then install the new drive PWB.
1. If possible, record the current software level by either:
• Printing the configuration report, GP 14.
• From the user interface Home screen, touch Device, then About. Scroll down to view
the Software Version.
2. Remove the upper rear cover, REP 28.5.

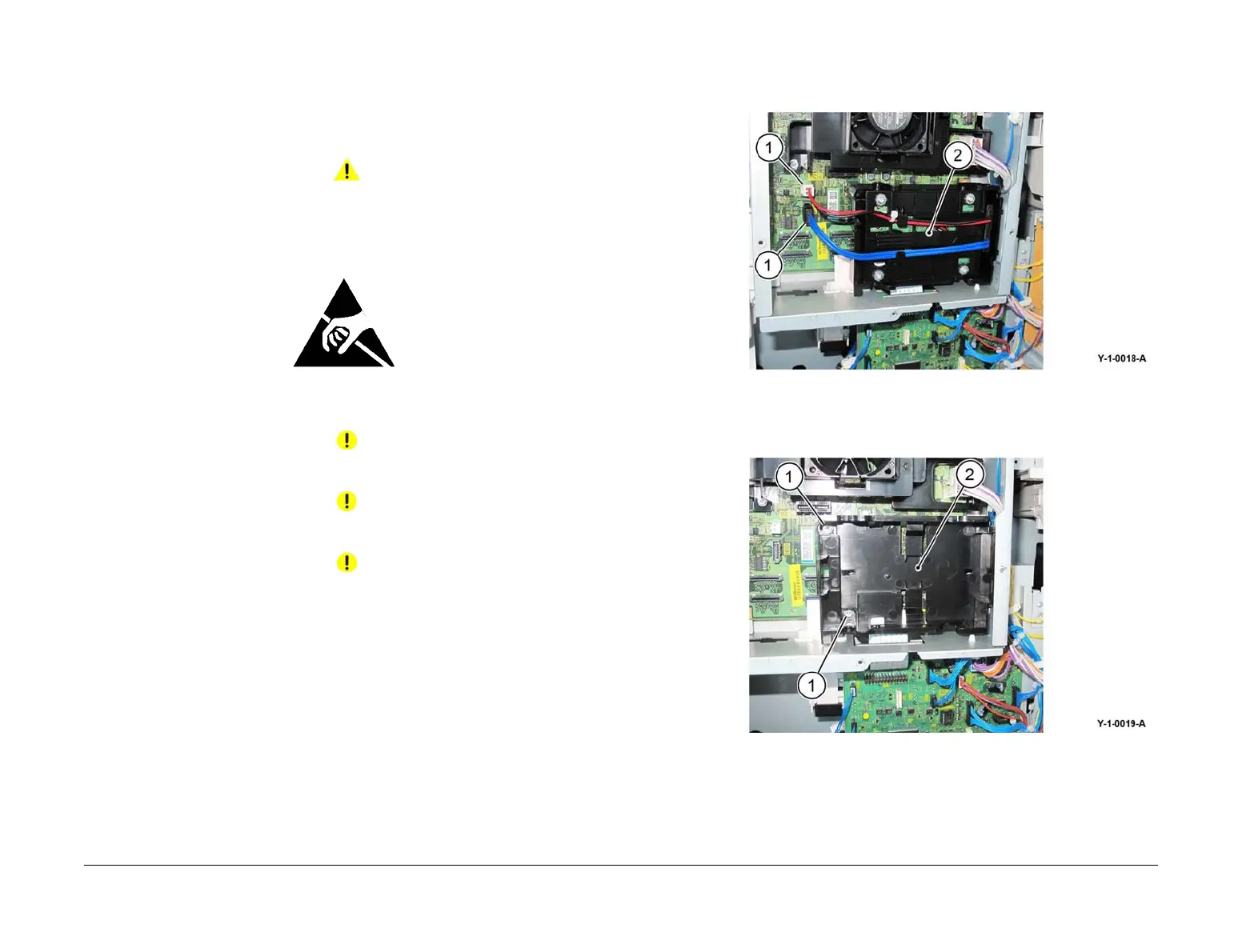

3. If the machine has an HDD assembly installed, remove the HDD assembly, Figure 2:
a. Disconnect the connectors (1).
b. Remove the HDD assembly (2).
Figure 2 HDD removal
4. If the machine had an HDD assembly installed, remove both screws (1), then the HDD
bracket (2), Figure 3.
Figure 3 HDD bracket removal
To Next Page
