Xerox VersaLink B7035 Service Manual

April 2017
5-26
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 10.20
Launch Issue
Parts Lists

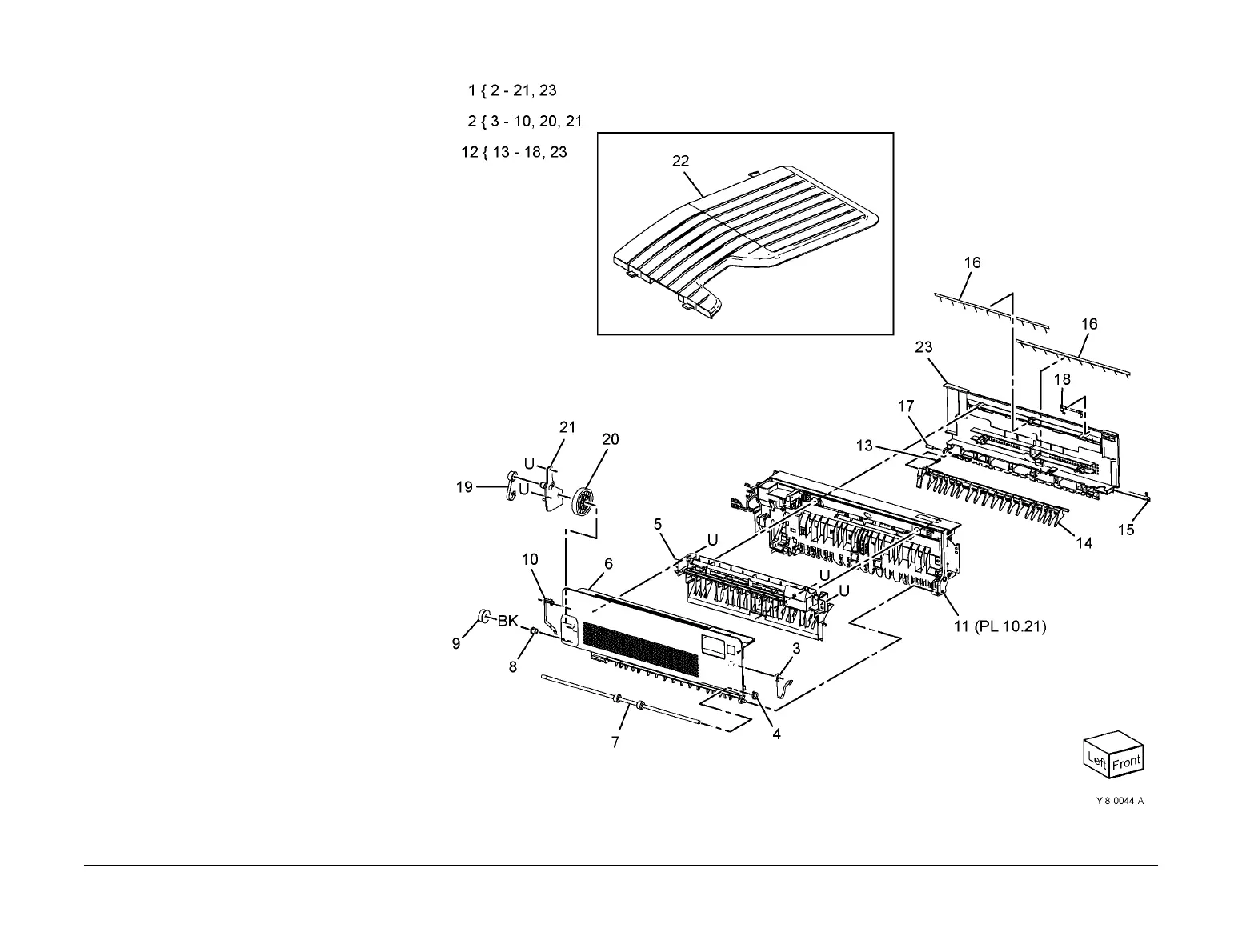

PL 10.20 Exit 2 (1 of 3)
Item Part Description
1 859K04961 Exit 2 transport assembly
2 – Chute LH transport assembly (P/O
PL 10.20 Item 1)
3 – Exit 2 stopper (P/O PL 10.20 Item
1)
4 – Bearing (P/O PL 10.20 Item 1)
5 – Exit 2 chute (P/O PL 10.20 Item 1)
6 – LH high chute (P/O PL 10.20 Item
1)
7 – Inverter roller assembly (P/O PL
10.20 Item 1)
8 – Bearing sleeve (P/O PL 10.20 Item
1)
9 – Inverter gear (P/O PL 10.20 Item 1)
10 – Earth plate (P/O PL 10.20 Item 1)
11 – Exit 2 drive assembly (REF: PL
10.21)
12 – Exit 2 guide assembly (P/O PL
10.20 Item 1)
13 – Gate 1 spring (P/O PL 10.20 Item
12)
14 050E94761 Exit 1 diverter gate
15 – Exit 1 conductor (P/O PL 10.20
Item 12)
16 – Static eliminator (P/O PL 10.20
Item 12)
17 – Gate stopper (P/O PL 10.20 Item
12)
18 – Exit 2 conductor (P/O PL 10.20
Item 12)
19 – Exit 2 stopper (P/O PL 10.20 Item
1)
20 – Gear (P/O PL 10.20 Item 1)
21 – Gear cover (P/O PL 10.20 Item 1)
22 050E32540 Center tray/dual catch tray
23 – Exit 2 guide (P/O PL 10.20 Item 12)
