Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 12.06
Launch Issue
Parts Lists
PL 12.06 Integrated Office Finisher (2
of 2)

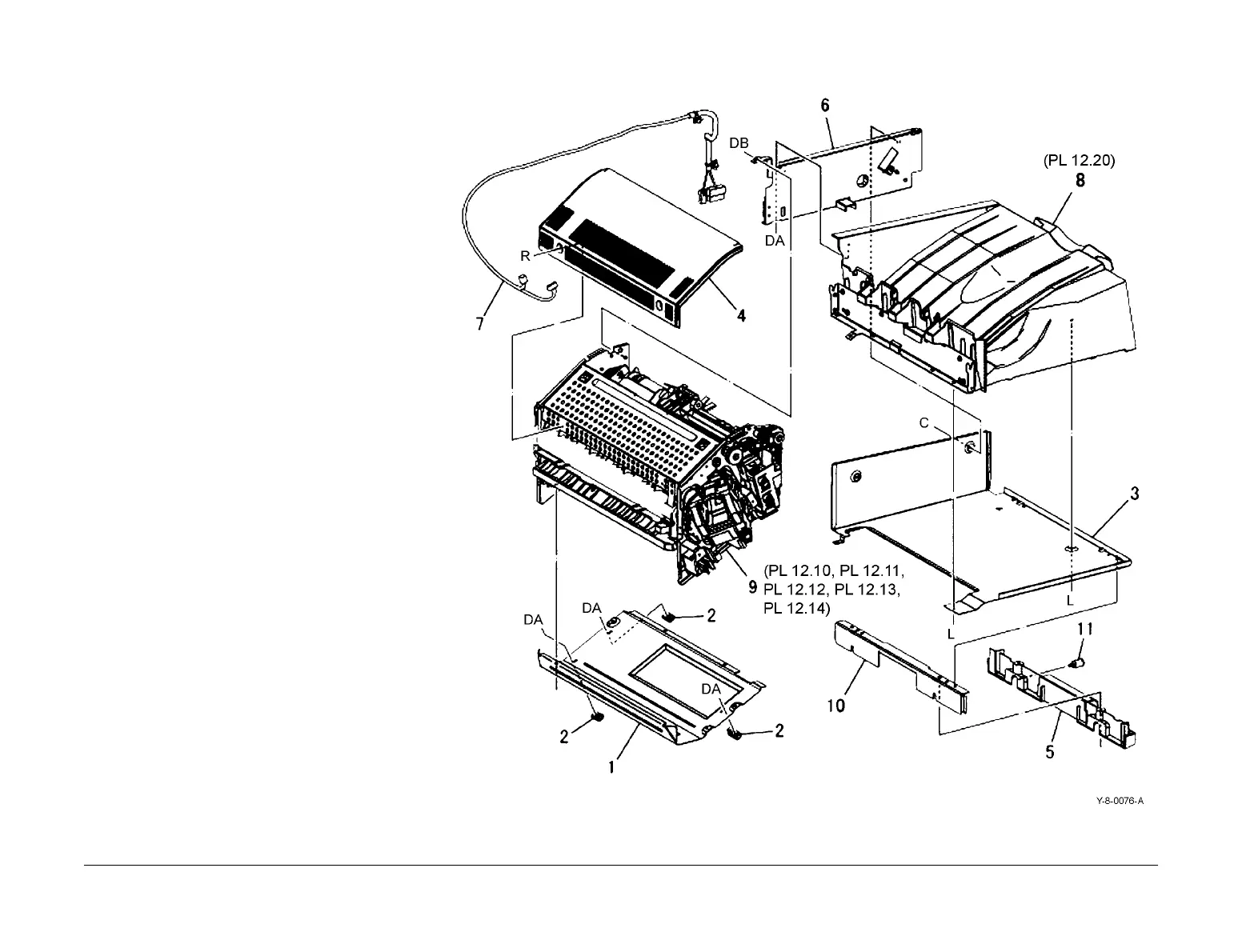

Item Part Description
1 – Bottom cover (Not Spared)
2 – Spacer (Not Spared)
3 – Tray cover (Not Spared)
4 – Left cover (Not Spared)
5 – Tray support (Not Spared)
6 – Rear bracket (Not Spared)
7 962K42291 Wire harness
8 050K75640 Stacker tray assembly (REP 12.15)
9 – Stacker base assembly (Not
Spared)
10 – Extended tray assembly (Not
Spared)
11 826E24180 Thumb screw
To Next Page
