Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 13.26
Launch Issue
Parts Lists

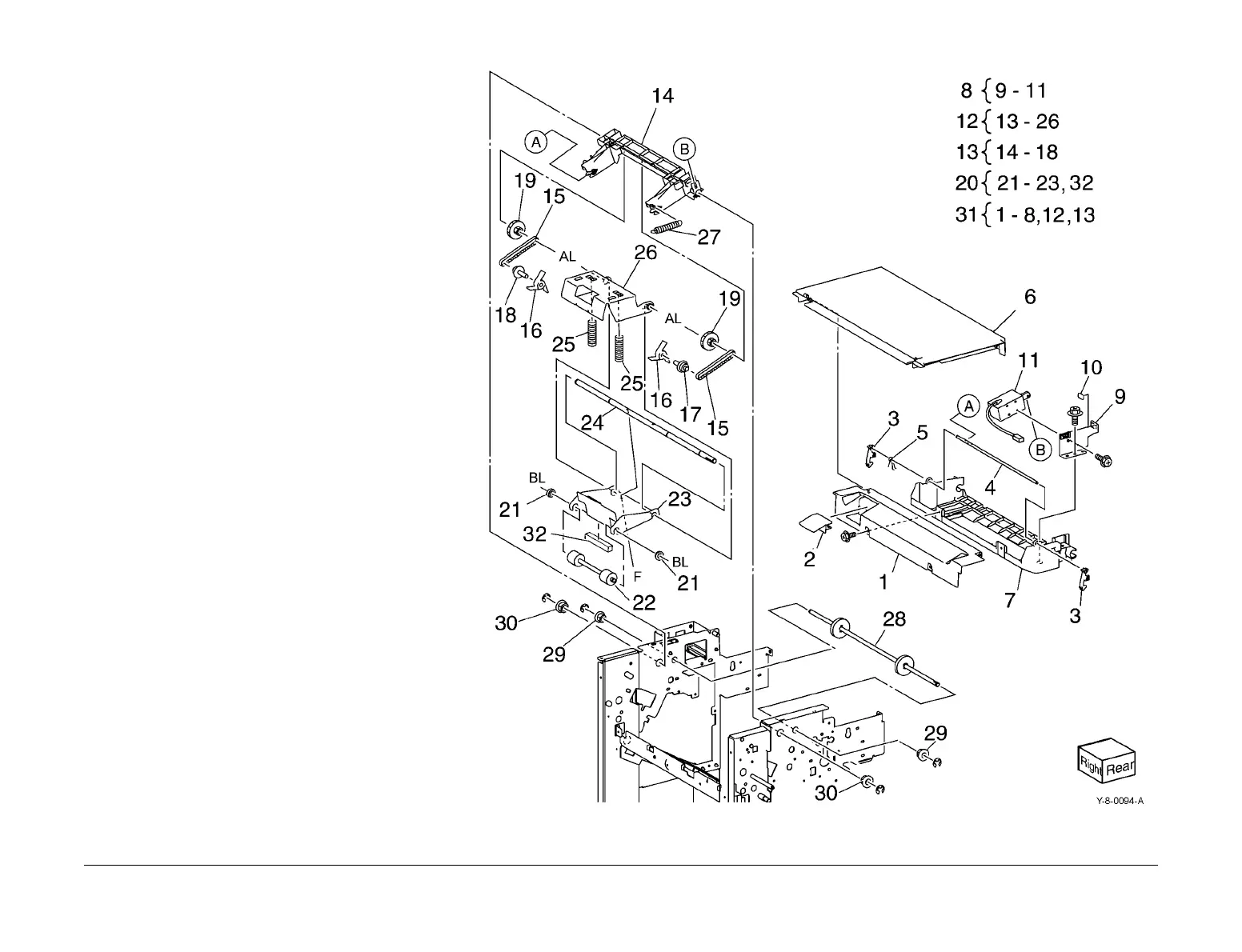

PL 13.26 Office Finisher LX Ejector (2
of 5)
Item Part Description
1 – Top right hand cover (P/O PL 13.26
Item 31)
2 – Top cover lever (P/O PL 13.26 Item
31)
3 – Top cover latch (P/O PL 13.26 Item
31)
4 – Shaft (P/O PL 13.26 Item 31)
5 – Spring (P/O PL 13.26 Item 31)
6 – Eject cover (P/O PL 13.26 Item 31)
(REP 13.9)
7 – Eject chute (P/O PL 13.26 Item 31)
8 121K41632 Sub paddle solenoid assembly
(REP 13.14)
9 – Bracket (P/O PL 13.26 Item 8)
10 – Damper (P/O PL 13.26 Item 8)
11 – Sub paddle solenoid (SOL12-013)
(P/O PL 13.26 Item 8)
12 – Eject roller assembly (P/O PL 13.26
Item 31)
13 031K94470 Paddle arm assembly
14 – Sub paddle arm (P/O PL 13.26 Item
13)
15 – Belt (P/O PL 13.26 Item 14)
16 – Sub paddle (P/O PL 13.26 Item 13)
17 – Pulley (P/O PL 13.26 Item 13)
18 – Pulley (P/O PL 13.26 Item 13)
19 – Gear/Pulley (31T/20T) (Not
Spared)
20 059K55715 Eject nip roll assembly
21 – Bearing (P/O PL 13.26 Item 20)
22 – Eject nip roll (P/O PL 13.26 Item
20)
23 – Bracket (P/O PL 13.26 Item 20)
24 – Shaft (P/O PL 13.26 Item 12)
25 – Spring (P/O PL 13.26 Item 12)
26 – Bracket (P/O PL 13.26 Item 12)
27 – Spring (Not Spared)
28 006K86690 Eject drive shaft
29 – Bearing (Not Spared)
30 – Bearing (Not Spared)
31 – Eject chute assembly (Not Spared)
32 – Static eliminator (P/O PL 13.26
Item 20)
