Xerox VersaLink B7035 Service Manual

April 2017
5-8
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 3.10
Launch Issue
Parts Lists

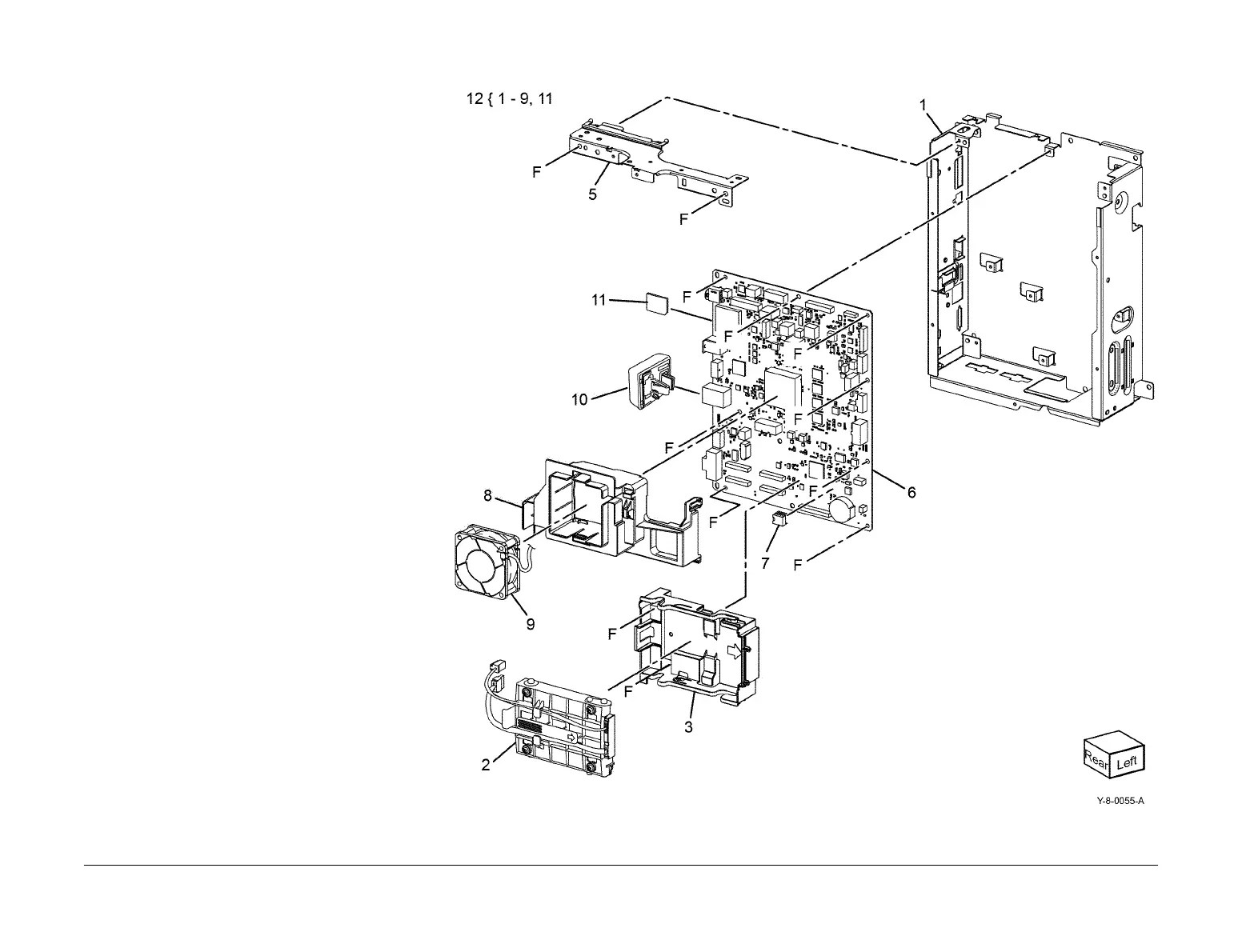

PL 3.10 ESS PWB Chassis
Components
Item Part Description
1 – ESS PWB chassis (P/O PL 3.10
Item 12)
2 101K68970 HDD
3 – HDD bracket (P/O PL 3.10 Item 12)
4 – Not used
5 – ESS upper panel (P/O PL 3.10 Item
12)
6 960K83772 ESS PWB (REP 3.1)
7 – EEPROM assembly (P/O PL 3.10
Item 12)
8 – ESS fan bracket (P/O PL 3.10 Item
12)
9 127E87190 ESS fan
10 101K72680 WiFi dongle
11 607K03950 SD card (REP 3.3)
12 – ESS PWB chassis assembly (Not
Spared) (REP 3.2)
