Xerox VersaLink B7035

April 2017
5-10
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 5.10
Launch Issue
Parts Lists

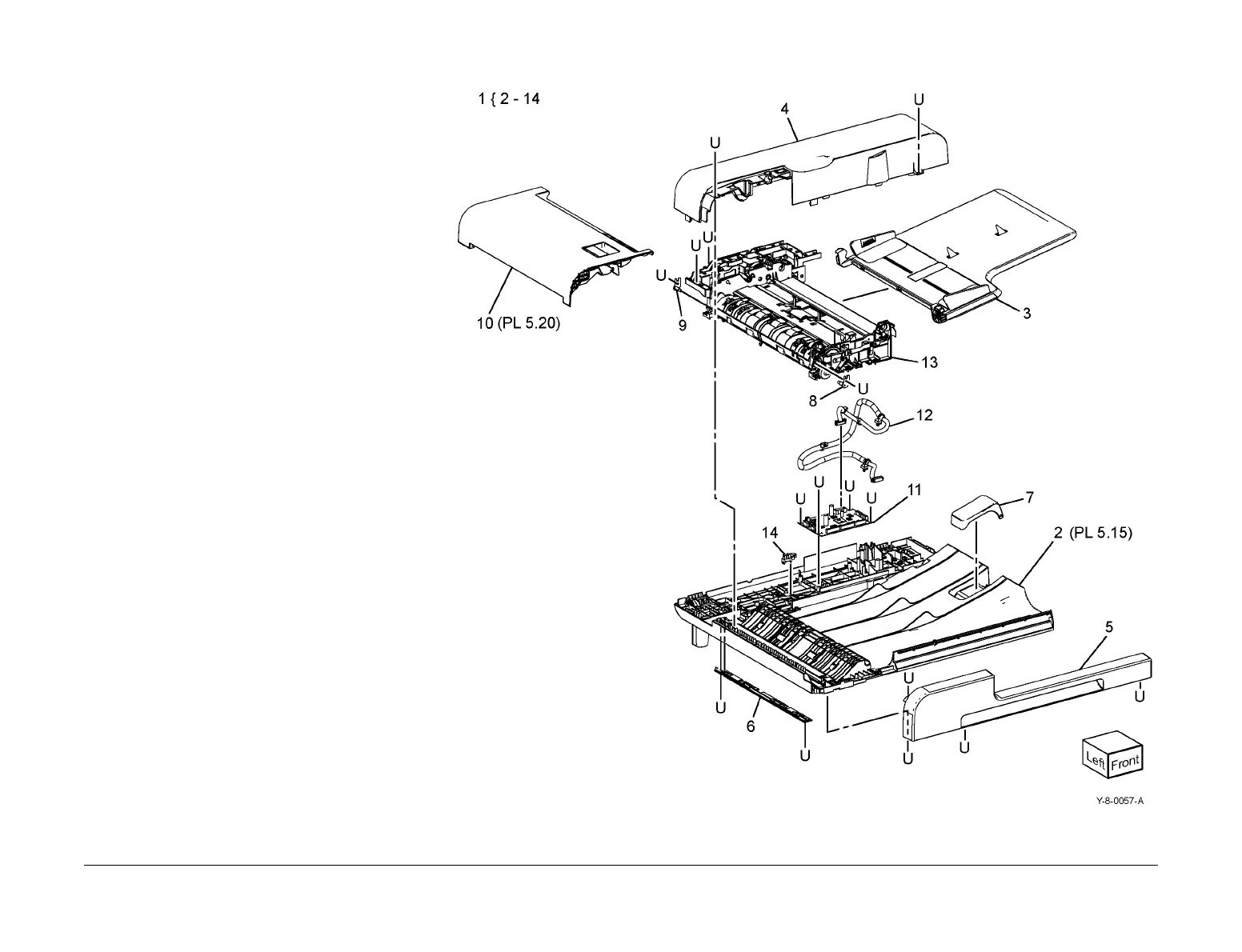

PL 5.10 DADF Components
Item Part Description
1 – Base frame and feeder assembly
(Not Spared) (REP 5.4)
2 801K64910 Base frame
3 050K73352 Document tray
4 – Rear cover (P/O PL 5.10 Item 1)
(REP 5.4)
5 – Front cover (P/O PL 5.10 Item 1)
(REP 5.3)
6 – Registration pinch cover (P/O PL
5.10 Item 1)
7 – Tray stopper (P/O PL 5.10 Item 1)
8 – Front hinge bracket (P/O PL 5.10
Item 1)
9 – Rear hinge bracket (P/O PL 5.10
Item 1)
10 – Upper feeder assembly (P/O PL
5.10 Item 1) (REP 5.6)
11 960K78321 DADF PWB (REP 5.5)
12 – I/F wire harness (P/O PL 5.10 Item
1)
13 – Feeder assembly (P/O PL 5.10
Item 1) (REP 5.7)
14 930W00121 CVT feeder cover sensor (Q05-
212)
