April 2017
4-64
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 12.7, REP 12.8
Launch Issue
Repairs and Adjustments
REP 12.7 Nip Roll
Parts List on PL 12.12
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Remove the integrated office finisher, REP 12.1.
2. Remove the compiler assembly, REP 12.19.
3. Remove the pinch roll, Figure 1:
a. Raise the four springs (1) in the direction of the arrow.
b. Remove the four nip rolls (2).

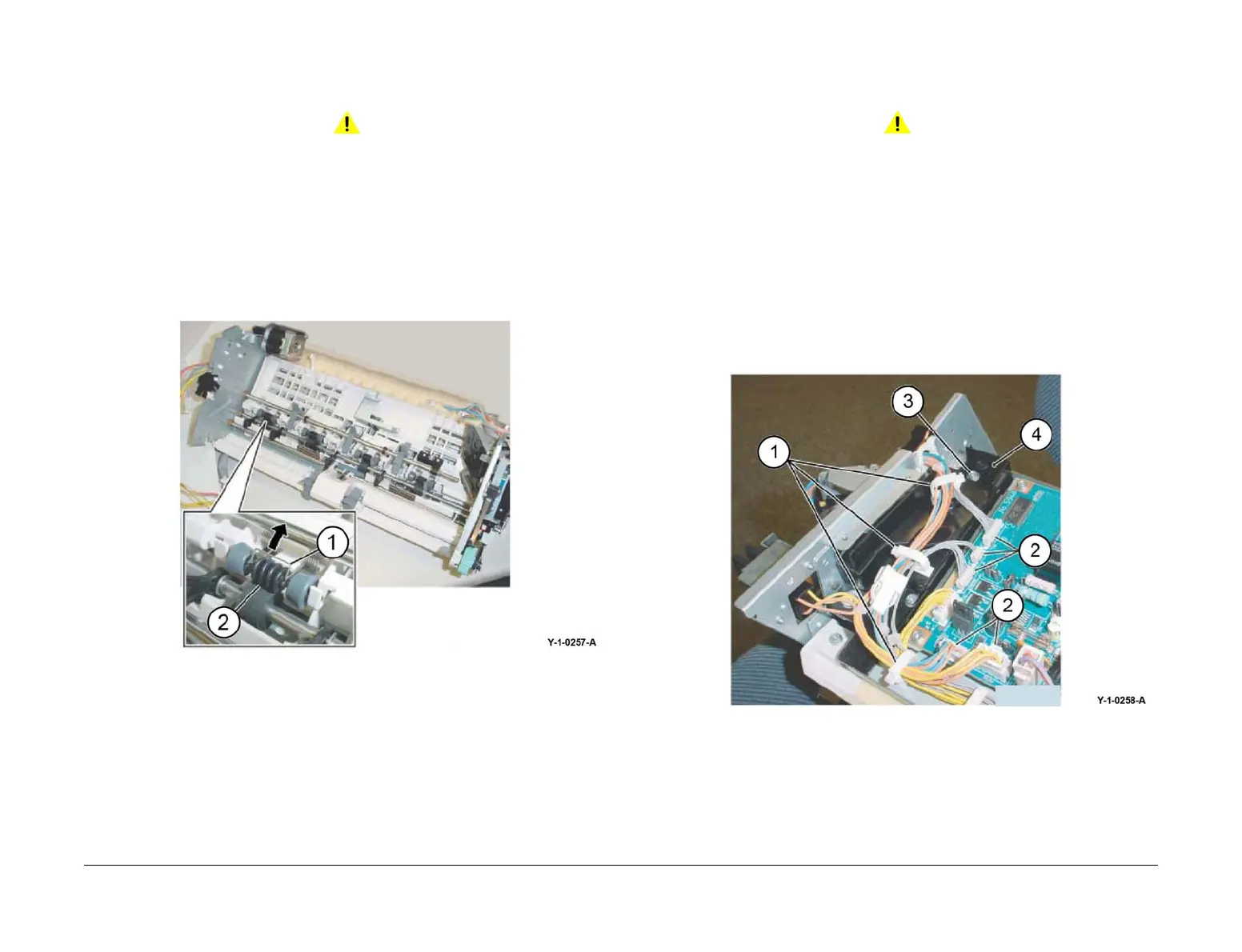

Figure 1 Nip rolls removal
Replacement
The replacement is the reverse of the removal procedure.
REP 12.8 Finisher Entry Sensor
Parts List on PL 12.12
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Remove the integrated office finisher, REP 12.1.
2. Turn over the integrated office finisher.
3. Remove the bottom cover, PL 12.06 Item 1.
4. Remove the connector bracket, Figure 1:
a. Release the harness from the three clamps (1).
b. Disconnect the connectors (2).
c. Remove two screws (3).
d. Remove the connector bracket (4).
Figure 1 Connector bracket removal
To Next Page
