Xerox VersaLink B7035

April 2017
5-128
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 90.15
Launch Issue
Parts Lists

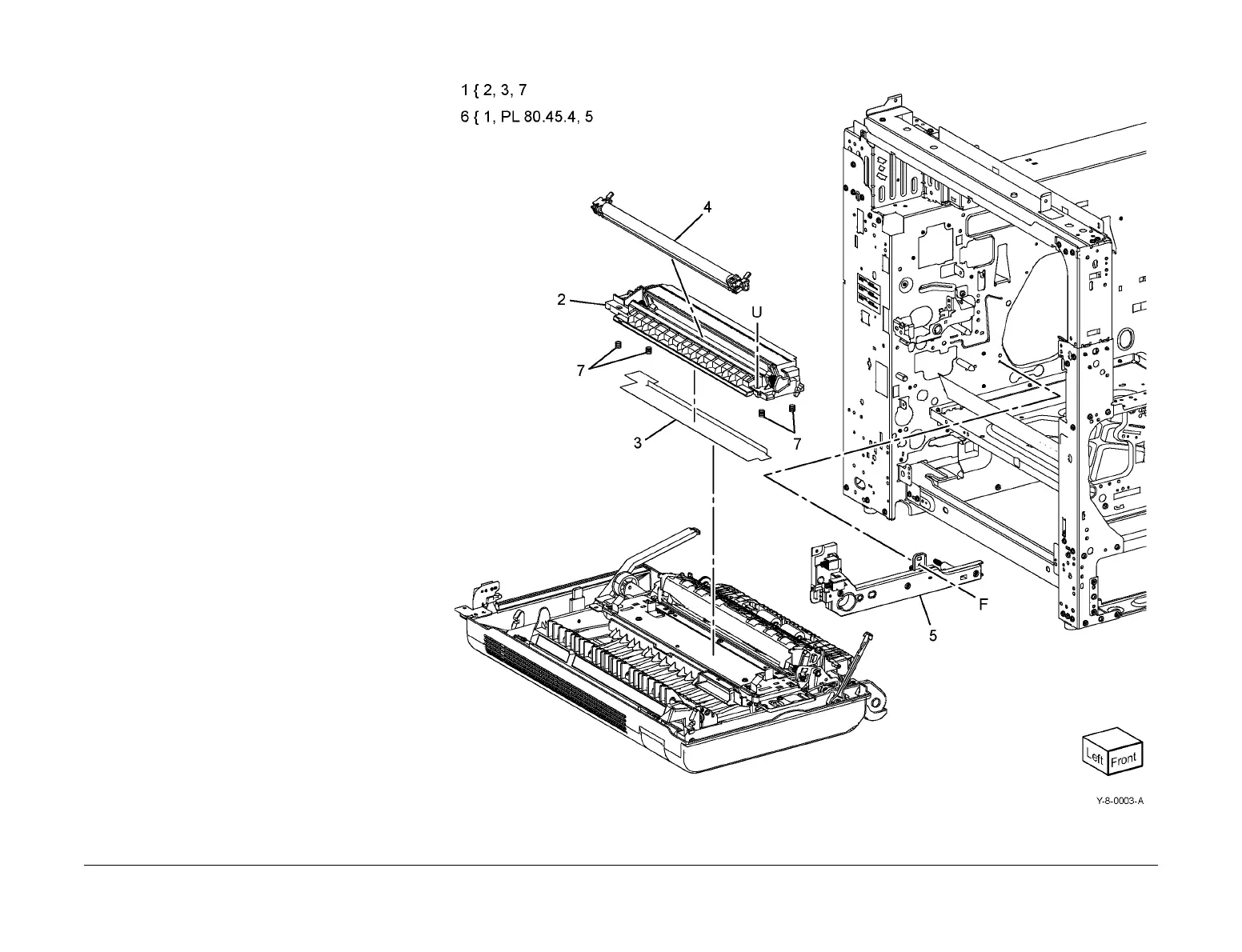

PL 90.15 BTR Roll
Item Part Description
1 – Transfer chute assembly (Not
Spared)
2 – Transfer chute (P/O PL 90.15 Item
1)
3 – Mylar strip (P/O PL 90.15 Item 1)
4 115R00116 BTR assembly (see NOTE) (REP
90.3)
5 848K94950 Conductor housing assembly
6 604K96900 Transfer chute kit
7 – Chute spring (P/O PL 90.15 Item 1)
NOTE: HFSI. To reset the HFSI counter, refer to dC135.
