April 2017
4-171
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 70.9
Repairs and Adjustments
Launch Issue
REP 70.9 TTM Tray 3 Lift Shaft and Brake
Parts List on PL 70.66
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Remove the paper from tray 3.
2. Fully pull out tray 3. Remove the paper from tray 3. Lift out tray 3.
3. Remove the tray 3 front cover, PL 70.65 Item 18.

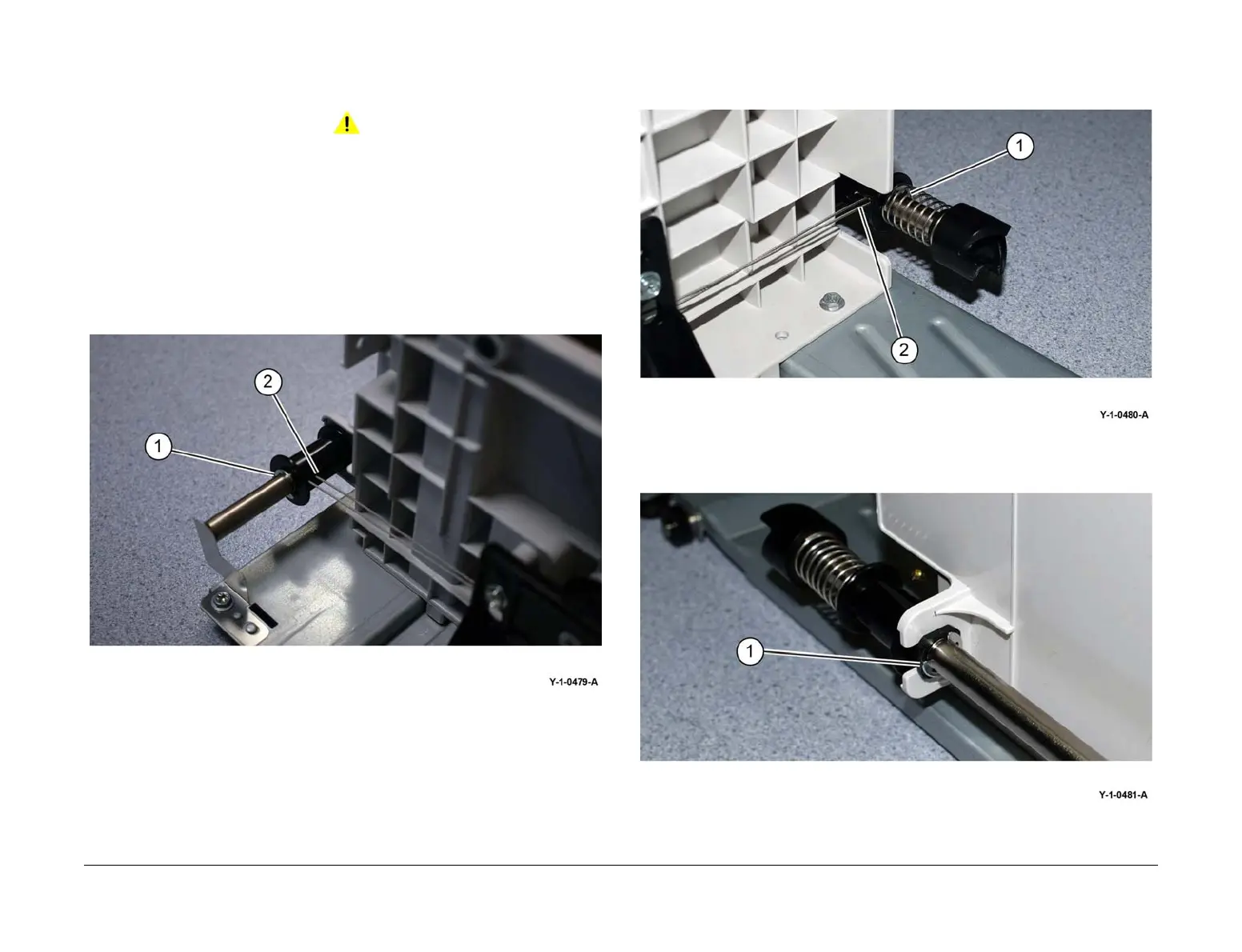

4. Release the front lift cables, Figure 1:
a. Remove the E-clip (1).
b. Release the front lift cables (2).
Figure 1 Front cables
5. Release the rear lift cables, Figure 2:
a. Pull the spring away from the pulley, then remove the E-clip (1).
b. Release the rear lift cables (2).
Figure 2 Rear cables
6. Remove the E-clip (1), Figure 3:
Figure 3 Rear E-clip
To Next Page
