Repairs and Adjustments
REP 12.17 Stacker Motor
Parts List on PL 12.20
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
1. Remove the integrated office finisher, REP 12.1.
2. Remove the rear cover, PL 12.05 Item 14.
3. Turn over the integrated office finisher.
4. Remove the tray cover, PL 12.06 Item 3.

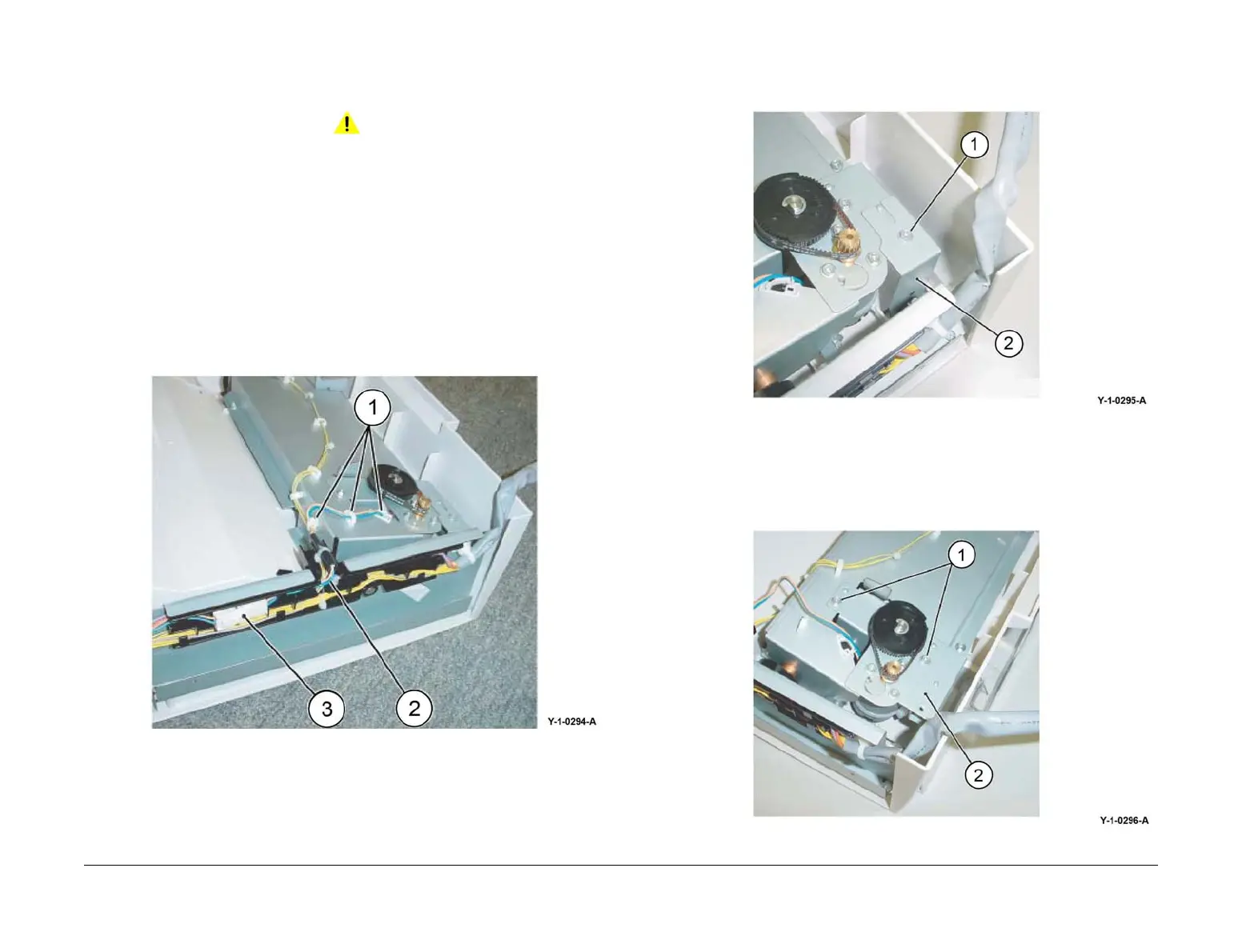

5. Disconnect the connector, Figure 1:
a. Release the harness from the three clamps (1).
b. Release the harness from the retainer (2).
c. Disconnect the connector (3).
Figure 1 Connector
6. Remove the bracket, Figure 2:
a. Remove the screw (1).
b. Remove the bracket (2).
Figure 2 Bracket removal
7. Remove the stacker motor assembly, Figure 3:
a. Remove two screws (1).
b. Remove the stacker motor assembly (2).
Figure 3 Stacker motor assembly removal
