Xerox VersaLink B7035

April 2017
4-214
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 80.38, REP 80.39
Launch Issue
Repairs and Adjustments
REP 80.38 Tray 2 and 3 Feed/Retard/Nudger Roll (TTM)
Parts List on PL 80.25
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
NOTE: New feed, retard and nudger rolls must be installed at the same time.
1. Pull out trays 2, 3 and 4. Remove the paper.
2. Remove trays 2, 3 and 4.
3. Open the left cover assembly, PL 70.70 Item 7.
4. Remove the tray 2 or 3 feed, retard and nudger rolls, Figure 1:
a. Slide the chute (1) forwards.
b. Release the clip, then remove the tray 2 or 3 feed, retard and nudger rolls (2).

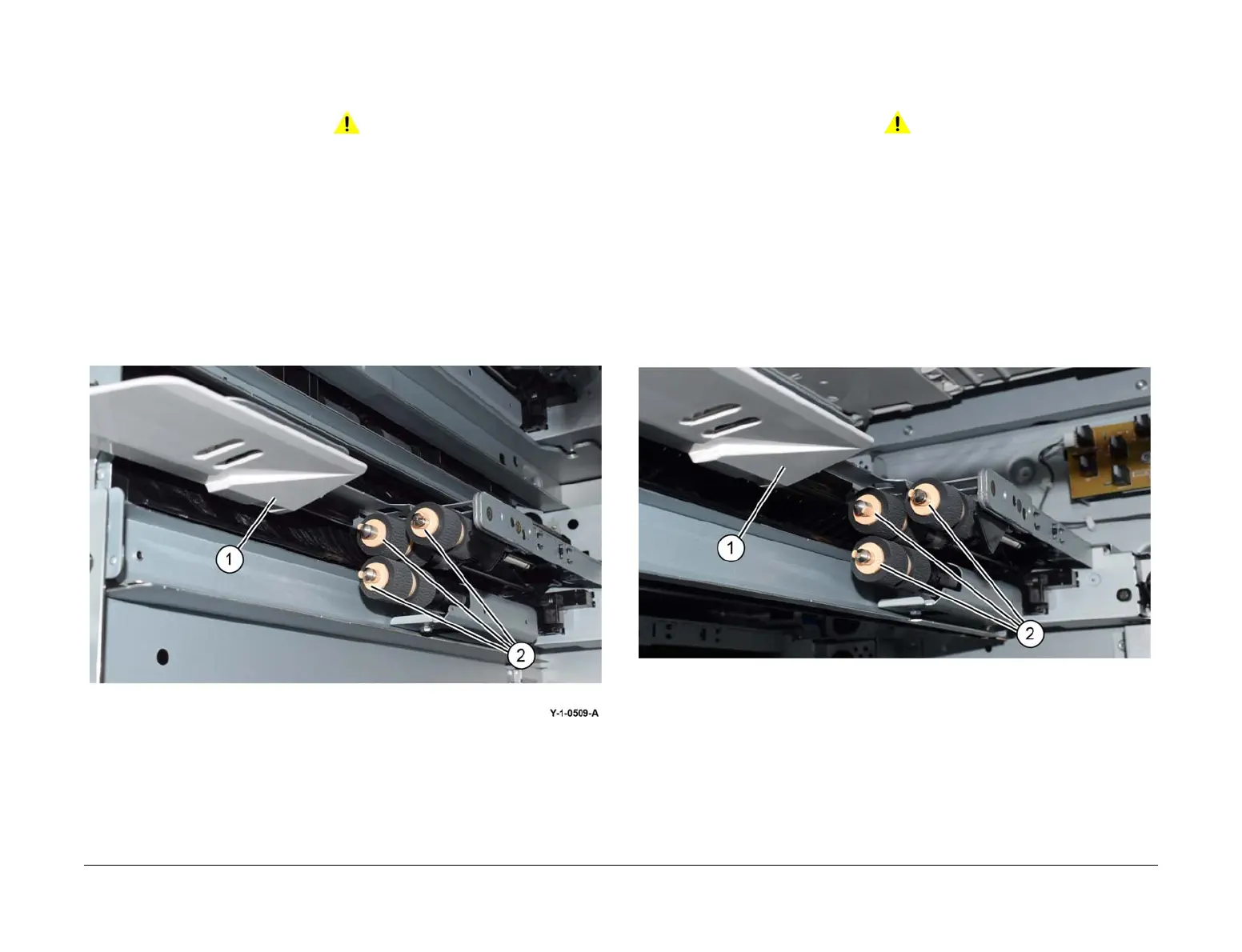

Figure 1 Roll removal
Replacement
1. The replacement is the reverse of the removal procedure.
2. If new rolls are installed, enter dC135 HFSI Counter. Reset the HFSI counters that follow:
• Tray 2 Chain-Link: 954-801
• Tray 3 Chain-Link: 954-802
REP 80.39 Tray 4 Feed/Retard/Nudger Roll (TTM)
Parts List on PL 80.25
Removal
WARNING
Switch off the electricity to the machine. Refer to GP 10. Disconnect the power cord
from the customer supply while performing tasks that do not need electricity. Electricity
can cause death or injury. Moving parts can cause injury.
NOTE: New feed, retard and nudger rolls must be installed at the same time.
1. Pull out trays 2, 3 and 4. Remove the paper.
2. Remove trays 2, 3 and 4.
3. Open the left cover assembly, PL 70.70 Item 7.
4. Remove the tray 4 feed, retard and nudger rolls, Figure 1:
a. Slide the chute (1) forwards.
b. Release the clip, then remove the tray 4 feed, retard and nudger rolls (2).
Figure 1 Roll removal
Replacement
1. The replacement is the reverse of the removal procedure.
2. If new rolls are installed, enter dC135 HFSI Counter. Reset the HFSI counter that follows:
• Tray 4 Chain-Link: 954-803
