Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 10.10
Launch Issue
Parts Lists

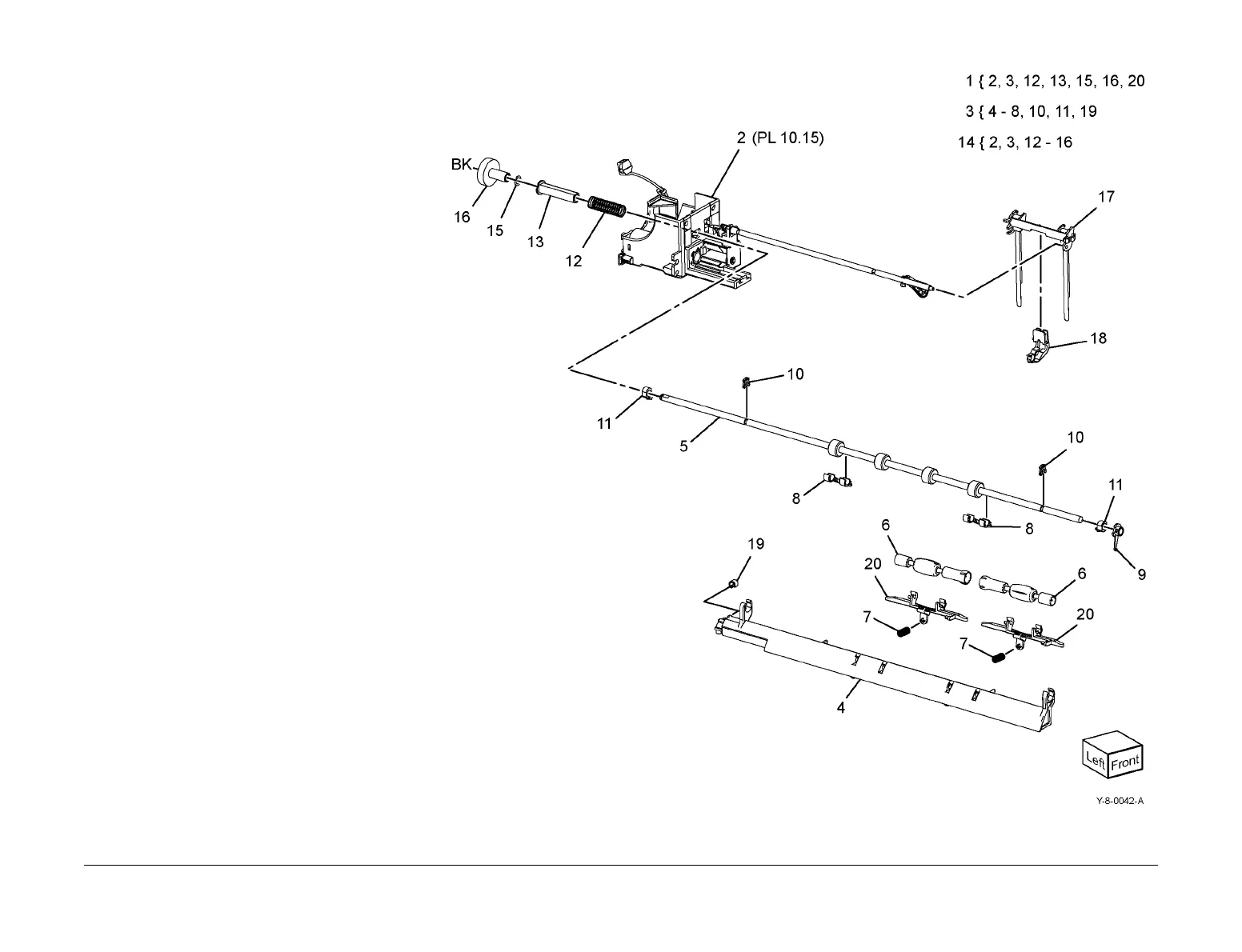

PL 10.10 Exit 1
Item Part Description
1 859K00502 Exit 1 OCT assembly (REP 10.1)
2 – Exit 1 base assembly (P/O PL
10.10 Item 1)
3 – OCT chute assembly (P/O PL
10.10 Item 1)
4 – OCT chute (P/O PL 10.10 Item 3)
5 – Exit 1 roller assembly (P/O PL
10.10 Item 3)
6 – Nip roll (P/O PL 10.10 Item 3)
7 – Spring (P/O PL 10.10 Item 3)
8 – Exit guard (P/O PL 10.10 Item 3)
9 – Bearing (Not Spared)
10 – Clip shaft (P/O PL 10.10 Item 3)
11 – Bearing (P/O PL 10.10 Item 3)
12 – OCT back spring (P/O PL 10.10
Item 1)
13 – Bearing OCT (P/O PL 10.10 Item 1)
14 – Full stack chute assembly (Not
Spared)
15 – Plain washer (P/O PL 10.10 Item 1)
16 – OCT gear (P/O PL 10.10 Item 1)
17 036K92030 Paper exit 1 weight assembly
18 – Exit 1 CTR guard (Not Spared)
19 – OCT collar (P/O PL 10.10 Item 3)
20 – Nip roll holder (P/O PL 10.10 Item
1)
