Xerox VersaLink B7035

April 2017
5-92
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
PL 70.35
Launch Issue
Parts Lists

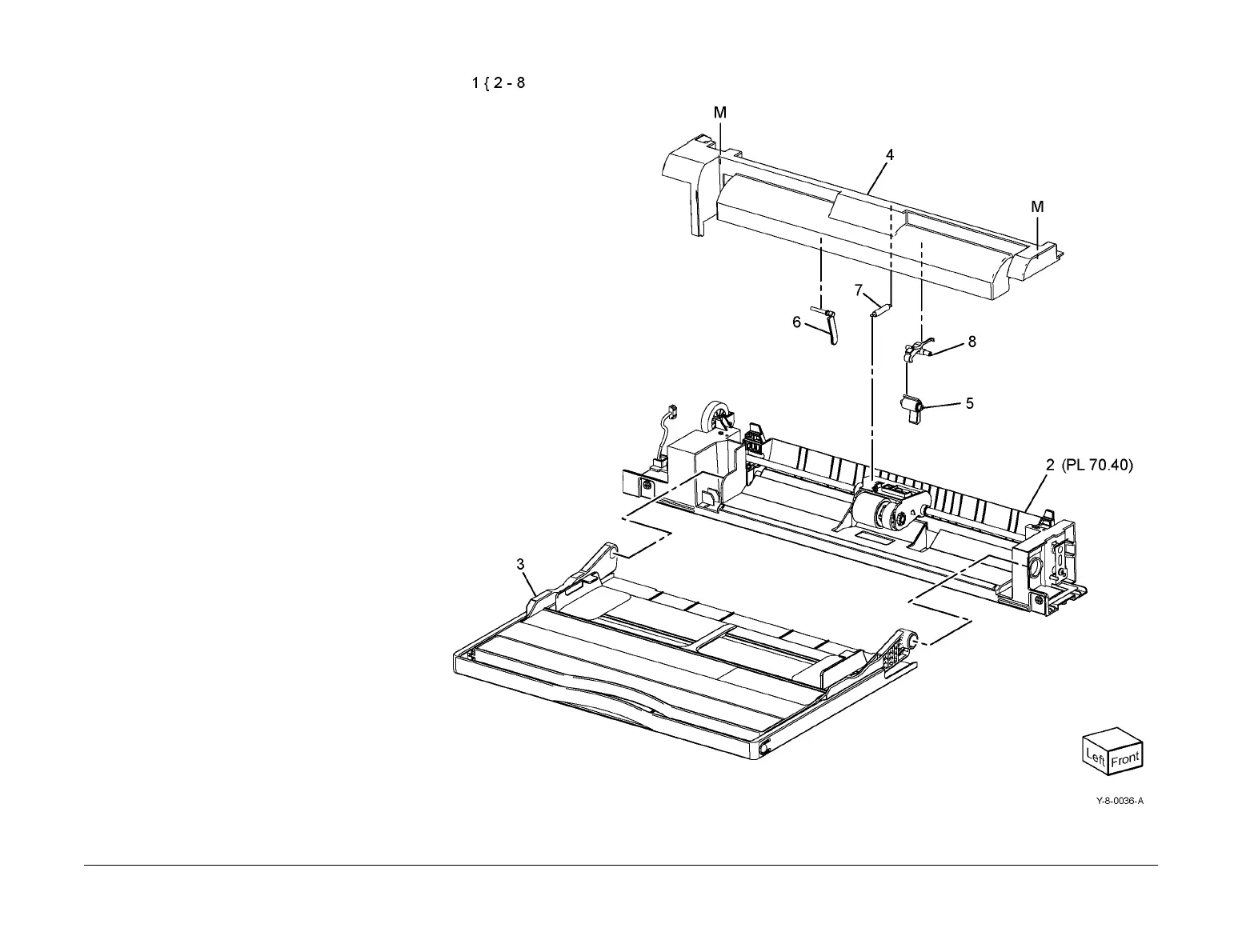

PL 70.35 Bypass Tray Components
Item Part Description
1 – Bypass tray feeder assembly (Not
Spared)
2 – Bypass tray lower feeder assembly
(REF: PL 70.40)
3 – Bypass tray assembly (P/O PL
70.35 Item 1)
4 – Upper frame (P/O PL 70.35 Item 1)
5 – Paper stopper (P/O PL 70.35 Item
1)
6 – No paper sensor actuator (P/O PL
70.35 Item 1)
7 – Spring (P/O PL 70.35 Item 1)
8 – Paper lock stopper (P/O PL 70.35
Item 1)
