Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
GP 25
Launch Issue
General Procedures and Information
GP 25 Ethernet Crossover Cable Setup
Purpose
To connect and then configure the PWS to communicate with a device via a ethernet cross-
over cable (600T02252).
Procedure
WARNING
Switch off the electricity to the machine GP 10. Disconnect the power cord from the cus-
tomer supply while performing tasks that do not need electricity. Electricity can cause
death or injury. Moving parts can cause injury.
1. Print a configuration report, GP 14.
2. Ensure that Windows firewall and wireless network connectivity on the PWS are turned
off.
3. Record the IP address and Subnet Mask of the PWS.
CAUTION
Before changing the value of a setting ensure the original value is recorded. All the origi-
nal values will need to be restored to the PWS at the end of the procedure.
a. Open a command window on the PWS:
• If running Windows 7, select Start and in the Search box above the Start but-
ton, type CMD, then press Enter.
NOTE: If the Windows key is enabled (the key located in the lower left corner with
the Microsoft logo), hold the Windows key down, press R and release both keys to
open the Command window.
b. Type ipconfig at the command prompt, then record the Local Area Connection: IPv4
Address and Subnet Mask.
4. Configure the LAN connection of the PWS to enable communication with the device. Go
to the relevant procedure:
• Windows 7
Windows 7
Perform the steps that follow:
1. Open Start/Control Panel/ Network and Sharing Centre.
2. From the left pane, select Change adapter settings.
3. Right-click on the Local Area Connection icon. Select Properties. The Local Area Con-
nection Properties window will open.
4. Highlight Internet Protocol Version 4 (TCP/IPv4). Select Properties, refer to Figure 1. The
Internet Protocol Version 4 (TCP/IPv4) Properties window will open.

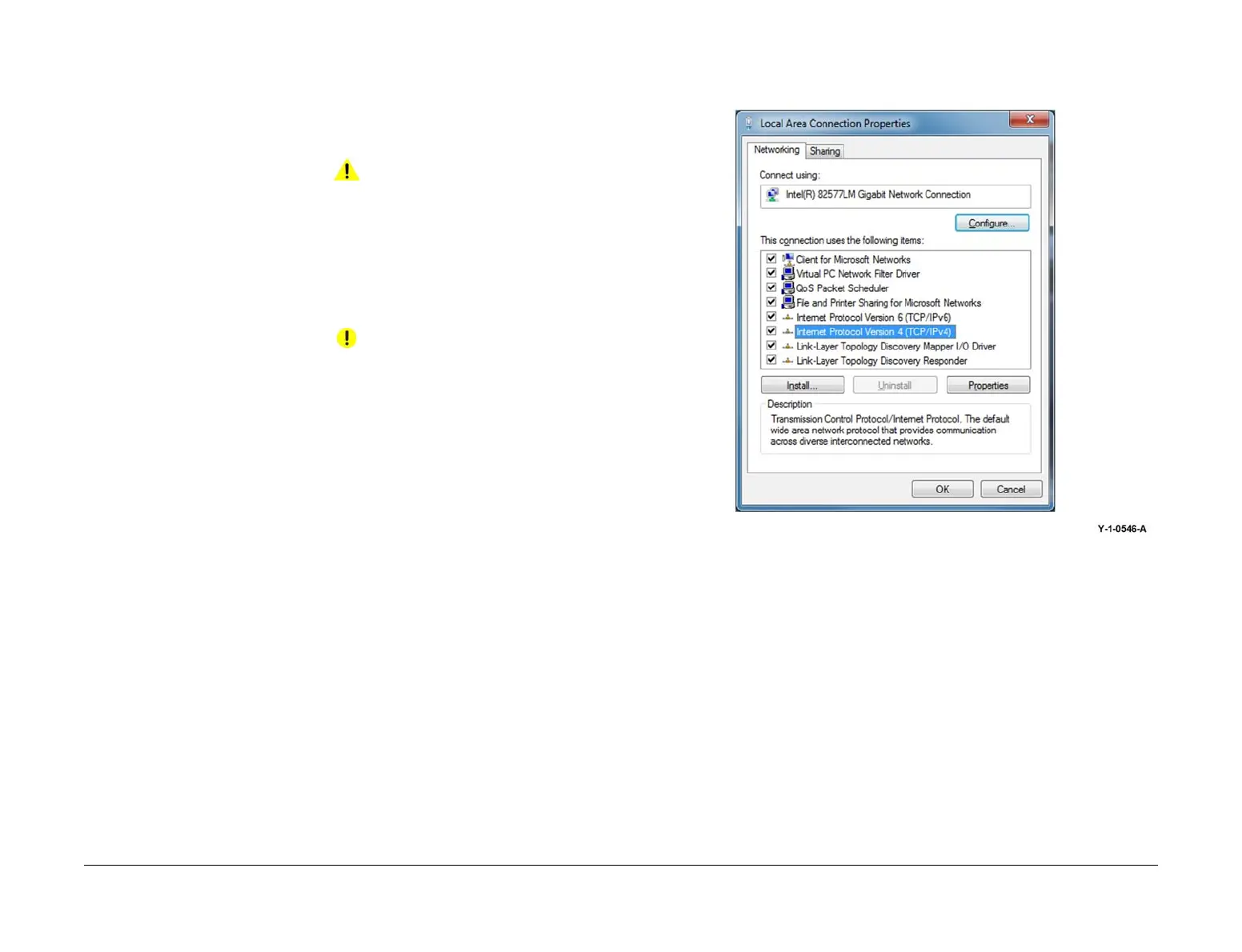

Figure 1 Properties window
5. Double-click the entry Internet Protocol Version 4 (TCP/IPv4).
To Next Page
