April 2017
7-37
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
Wiring Diagrams
Wiring Data
Launch Issue

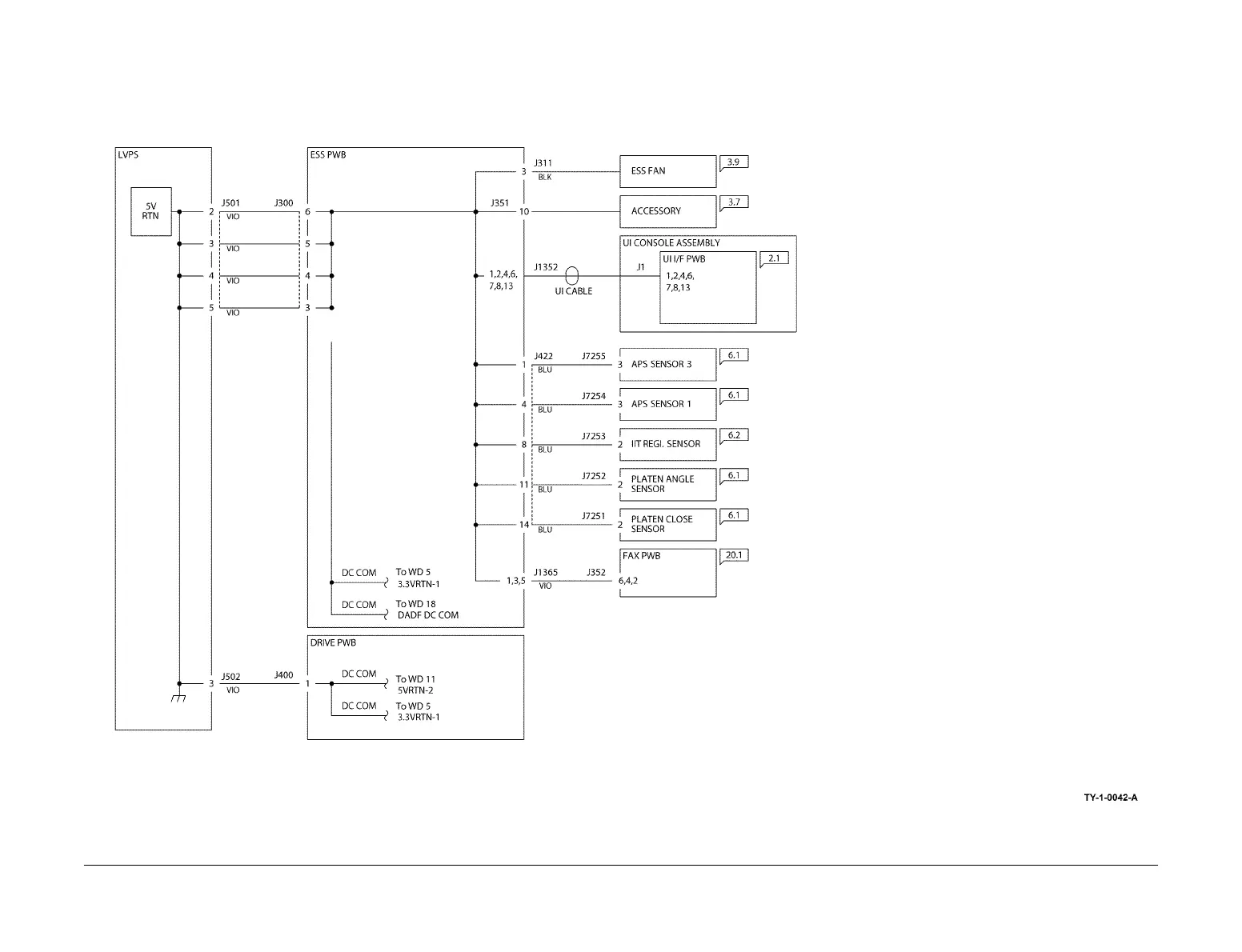

Wiring Diagram 10 IOT/IIT +5V RTN (1 of 3)
Figure 10 Wiring diagram 10
