April 2017
7-43
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
Wiring Diagrams
Wiring Data
Launch Issue
Wiring Diagram 16 DADF +5VDC

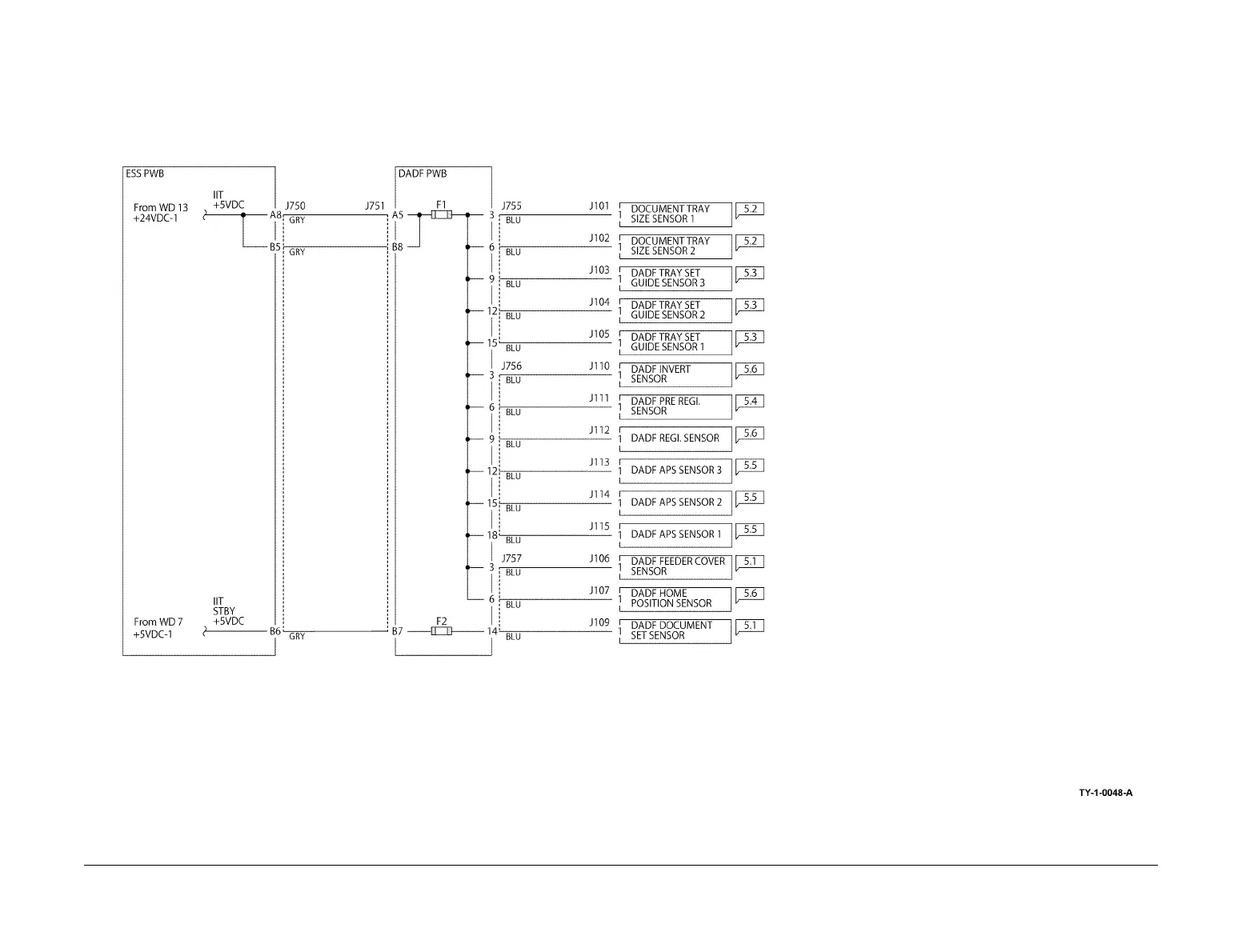

Figure 16 Wiring diagram 16
