April 2017
7-50
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
Wiring Diagrams
Launch Issue
Wiring Data

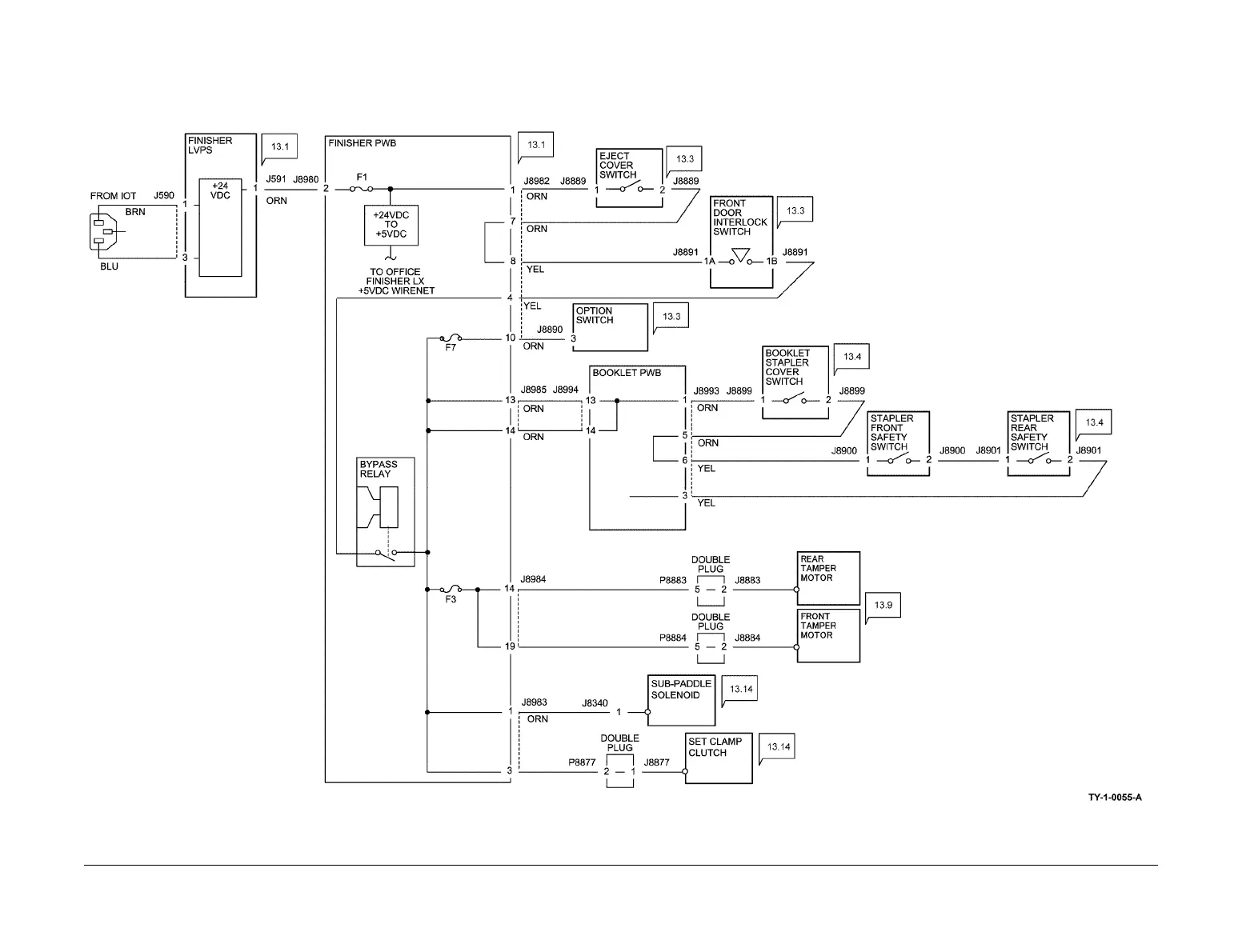

Wiring Diagram 23 Office Finisher LX +24VDC
Figure 23 Wiring diagram 23
