April 2017
7-54
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
Wiring Diagrams
Launch Issue
Wiring Data
Wiring Diagram 27 HCF DC COM

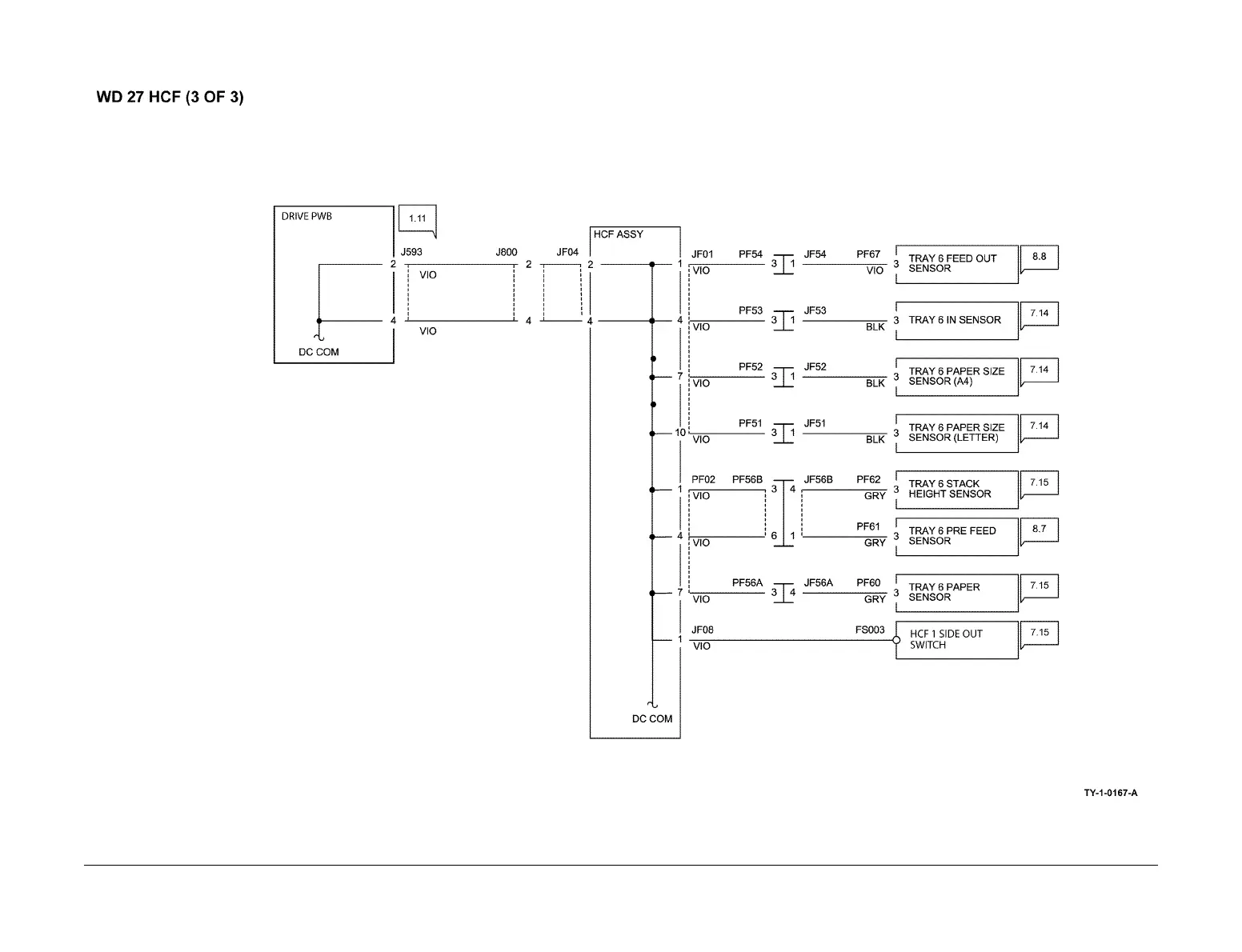

Figure 27 Wiring diagram 27
