Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
Product Technical Overview
Launch Issue
Front Cover and Left Cover Interlocks
The front cover interlock switch is wired in series with the L/H cover interlock switch. These
switches are supplied with +5VDC power from the LVPS. The drive PWB monitors their status.
When the front cover interlock switch opens, fault code 077-300 front cover open sets and the
drive PWB de-energizes the interlock relay located on the LVPS. Simultaneously, the fault
code and a message to close the front cover display on the UI. With the interlock relay de-
energized, the supply of +24VDC power is removed from the drive PWB and the devices it
supplies and/or controls (tray module PWB, motors, clutches, solenoids, fans and xerograph
-
ics). Refer to Figure 4.
Figure 4 Front cover and left cover interlocks
The left cover interlock switch is wired in series with the front cover interlock switch. These
switches are supplied with +5VDC power from the LVPS. The drive PWB monitors their status.
When the L/H cover interlock switch opens, fault code 077-301 left hand cover open sets and
the drive PWB de-energizes the interlock relay located on the LVPS. Simultaneously, the fault
code and a message to close the front cover display on the UI. With the interlock relay de-
energized, the supply of +24VDC power is removed from the drive PWB and the devices it
supplies and/or controls (tray module PWB, motors, clutches, solenoids, fans, xerographics).
Refer to BSD 1.8 Power Interlock Switching (1 of 3) and Figure 4.
Left Upper Cover Interlock
The left upper cover switch, Figure 5, is supplied with +5VDC power from the drive PWB,
which also monitors its status.
When the left upper cover switch opens, fault 077-308 left hand high cover open is declared
and a message to close the cover displays on the UI. The machine inhibits printing until the
user closes the cover, canceling the condition.

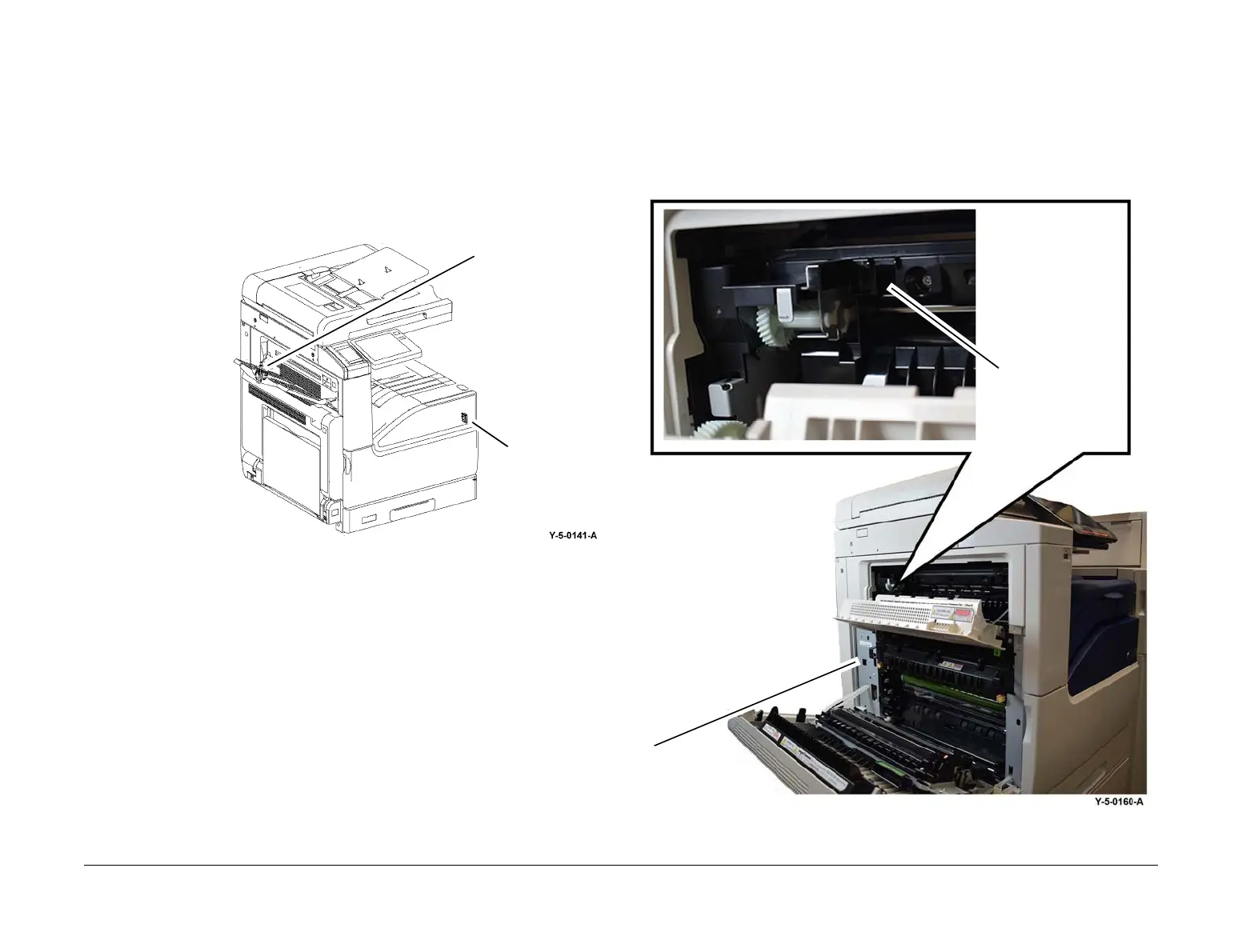

Figure 5 Interlocks on left covers
Left cover interlock
Front cover
interlock
Left upper cover
interlock recess
Left cover interlock
recess

Xerox VersaLink B7035 Specifications

General

Duplex printing	Yes
Print technology	LED
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	9.1 s
Print speed (black, normal quality, A4/US Letter)	35 ppm
Copier resize	25 - 400 %
Maximum copy resolution	600 x 600 DPI
Maximum number of copies	999 copies
Time to first copy (black, normal)	5.4 s
Scan to	E-mail, FTP, SMB, USB
Scanner type	-
Input color depth	24 bit
Faxing	Mono faxing
Modem speed	33.6 Kbit/s
Printing colors	Black
Maximum duty cycle	129000 pages per month
Page description languages	HP-GL, PCL 5e, PCL 6, TIFF, XPS
Internal memory	2048 MB
Processor cores	2
Processor frequency	1050 MHz
Control type	Touch
Product color	Black, White
Display diagonal	7 \
Market positioning	Business
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Mobile printing technologies	Apple AirPrint, Google Cloud Print
Standard interfaces	Ethernet, NFC, USB 3.2 Gen 1 (3.1 Gen 1)
Optional connectivity	Wireless LAN
USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	1
Power consumption (average operating)	- W
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Y
Linux operating systems supported	Fedora 24, openSUSE 13.2
Other operating systems supported	IBM AIX 7.2
Server operating systems supported	Windows Server 2003, Windows Server 2008, Windows Server 2008 R2, Windows Server 2012
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional x64, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Pro x64, Windows 8 x64
Sustainability certificates	ENERGY STAR
Total input capacity	- sheets
Paper tray media types	Bond paper, Card stock, Envelopes, Heavy paper, Labels, Letterhead, Plain paper, Pre-Printed, Recycled paper
ISO A-series sizes (A0...A9)	A3, A4
Maximum ISO A-series paper size	A3

Weight and Dimensions

Depth	670.8 mm
Width	590 mm
Height	767.9 mm
Weight	- g
