April 2017
8-79
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
Product Technical Overview
Launch Issue
Stacker Tray
The stacker tray is an output tray on the finisher LX that is used to store compiled sets in a
stack. The stacker tray lowers in steps to accommodate up to 200 sets.
The stacker tray is raised and lowered by a system of gears and belts. The gears and belts are
driven by the stacker elevator motor through a rack gear. Refer to Figure 12.

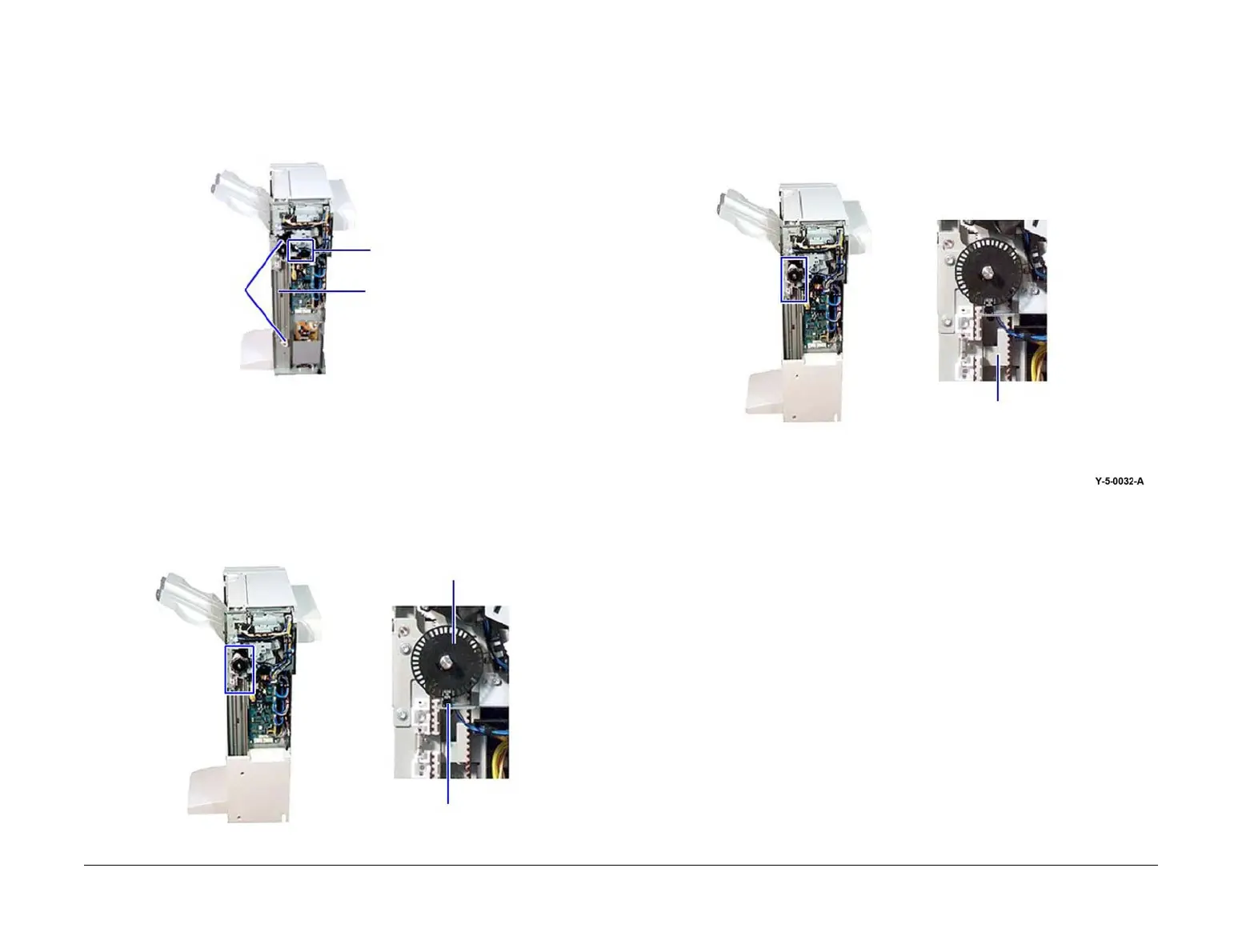

Figure 12 Stacker tray
Elevation System
The position of the stacker tray is controlled by an encoder and sensor.
The encoder has a number of apertures cut into it and is connected directly to the main stacker
tray drive gear via a shaft.
As the stacker tray drive gear rotates to lower or raise the stacker tray, the encoder also
rotates. The rotation of the encoder is monitored by the encoder wheel sensor which is an opti
-
cal sensor that reflects light onto the encoder. Refer to Figure 13.
Figure 13 Encoder and sensor
No Paper Sensor
The uppermost position of the stacker tray is monitored by the stacker no paper sensor. When
actuated, this indicates that the stacker tray is in the uppermost feed position. Refer to Figure
14.
Figure 14 Stacker no paper sensor
Stacker
gears
Stacker elevator motor
(located behind mounting
brackets)
Stacker tray drive belt
Encoder
Encoder sensor
Stacker no paper sensor
