April 2017
8-90
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
Launch Issue
Product Technical Overview
Crease Assembly Position
The action of the crease blade pressing the paper against the paper chute creates a pre-
crease in the sheet of paper.
The position of the paper within the crease assembly is monitored by the entrance and com-
piler exit sensors (part of the finisher LX).
When the paper is in the correct position within the paper chute, the paper momentarily stops
feeding and the crease blade is raised and lowered. Paper feed now resumes. Refer to Figure
40.

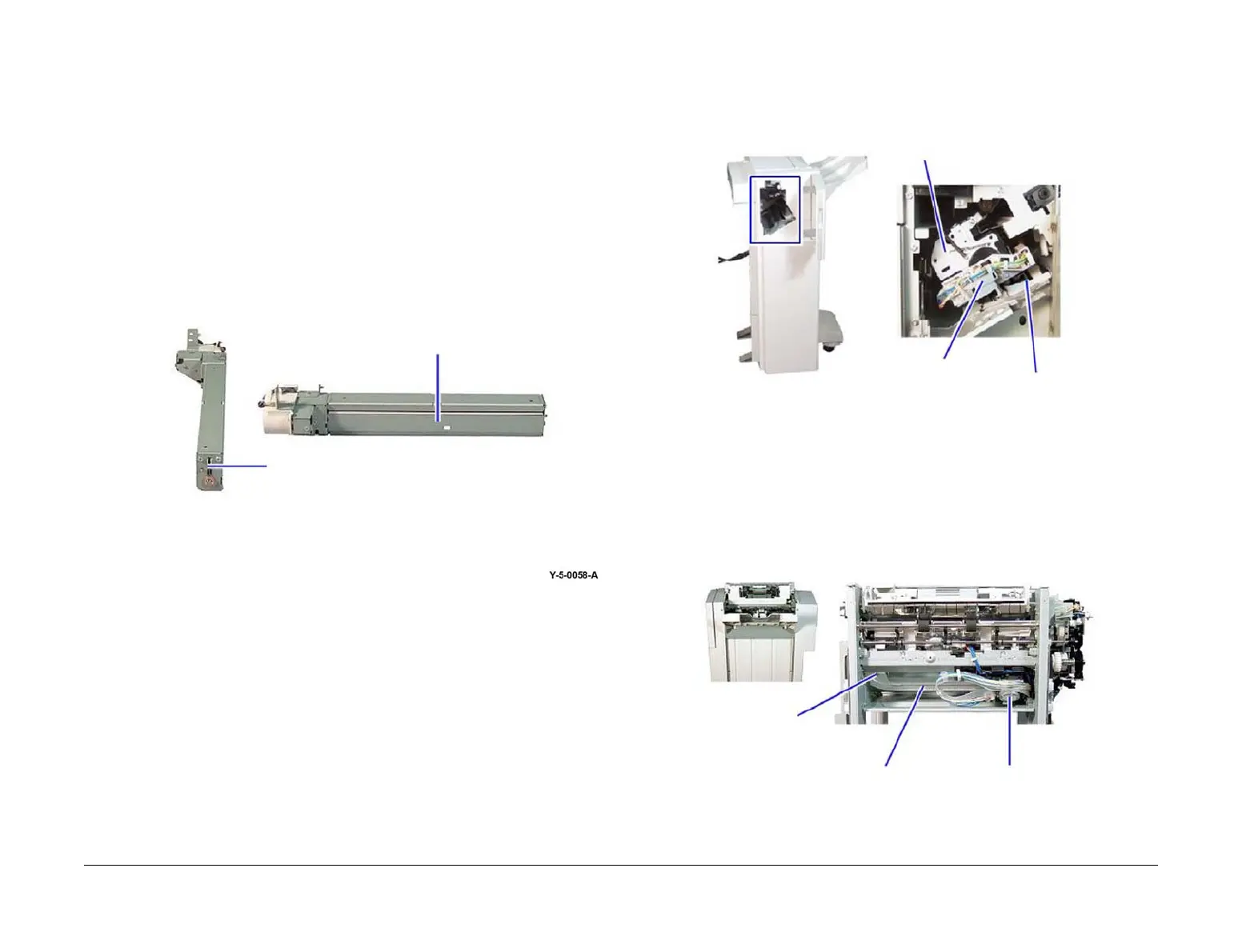

Figure 40 Crease blade and chute
Compiler Stapler
Stapler Unit
The compiler stapler has a stapler unit which is installed on a stapler mount. The stapler mount
moves the stapler unit to key stapling positions along the rail. Refer to Figure 41.
Figure 41 Stapler unit
Stapler Mount
The stapler mount is driven by the stapler move motor which is secured to the bottom of the
stapler mount.
A gear fixed to the end of the stapler move motor drives the stapler mount along the rail, which
is an integral part of the base frame. Refer to Figure 42.
Figure 42 Stapler mount movement
Chute
Crease blade
Stapler unit
Stapler mount
Rail
Stapler move motor
Base
frame
Rail
