Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
SCP 6
Service Call Procedures
Launch Issue
SCP 6 Machine Features
Configuration Options
The Xerox® VersaLink® B7025/B7030/B7035 is available as a basic machine with tray 1. It is
also available in various configurations using the options that follow:
General
For the space requirements, environment range and the print out time. Refer to:
• GP 16 Installation Space Requirements.
• GP 18 Environmental Data.
• GP 20 First Copy / Print Out Time and Power On / Off Time.
Paper Supply and Paper Handling Options
• One 520 sheet paper tray (tray 1).
• 100 sheet bypass tray.
• 110 sheet document feeder (DADF).
• Single tray module (STM) (tray 2).
• One tray module (1TM) (tray 2).
• Three tray module (3TM) (trays 2, 3 and 4).
• Tandem tray module (TTM) (trays 2, 3 and 4).
• 2000 sheet high capacity feeder (HCF).
• Envelope tray.
• Exit 2 tray.
Output Options
• Integrated office finisher.
• Office finisher LX.
• Booklet maker.
NOTE: A horizontal transport is also installed when a office finisher LX is fitted.
Accessories and Kits
• 1 Line Fax kit.
• 3 Line Fax kit.
• Adobe PS.
• Common access card.
• Convenience stapler.
• Foreign device interface kit.
• Hard disk drive (standard on machines with more than 1 tray).
•VOIP fax.
• Wireless print kit.
• Work surface.
NOTE: The service manual covers all of the above configurations. Within the manual, ignore
any references to options that are not installed.
Machine Identification
The diagrams that follow illustrate some of the machine configurations:
• Xerox® VersaLink® B7025 desktop, Figure 1.
• Xerox® VersaLink® B7030 with integrated finisher and 1TM, Figure 2.
• Xerox® VersaLink® B7035 with office finisher LX and 3TM, Figure 3.
• Xerox® VersaLink® B7035 with office finisher LX, booklet maker, HCF and TTM, Figure
4.

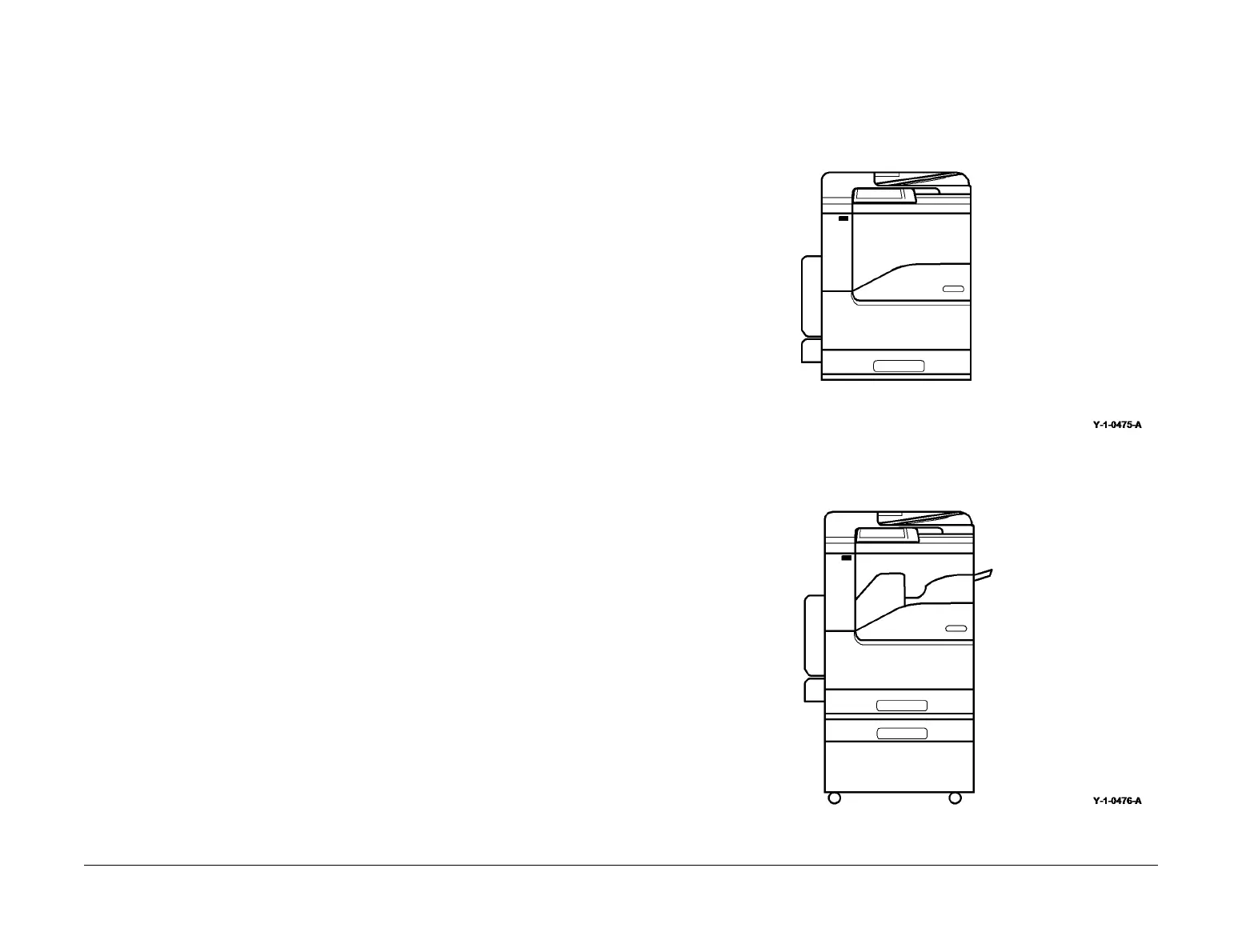

Figure 1 Desktop machine
Figure 2 Machine with integrated finisher and 1TM
