Repairs and Adjustments
4. Remove the set clamp home sensor assembly, Figure 2:
a. Remove the screw (1).
b. Remove the set clamp home sensor assembly (2).

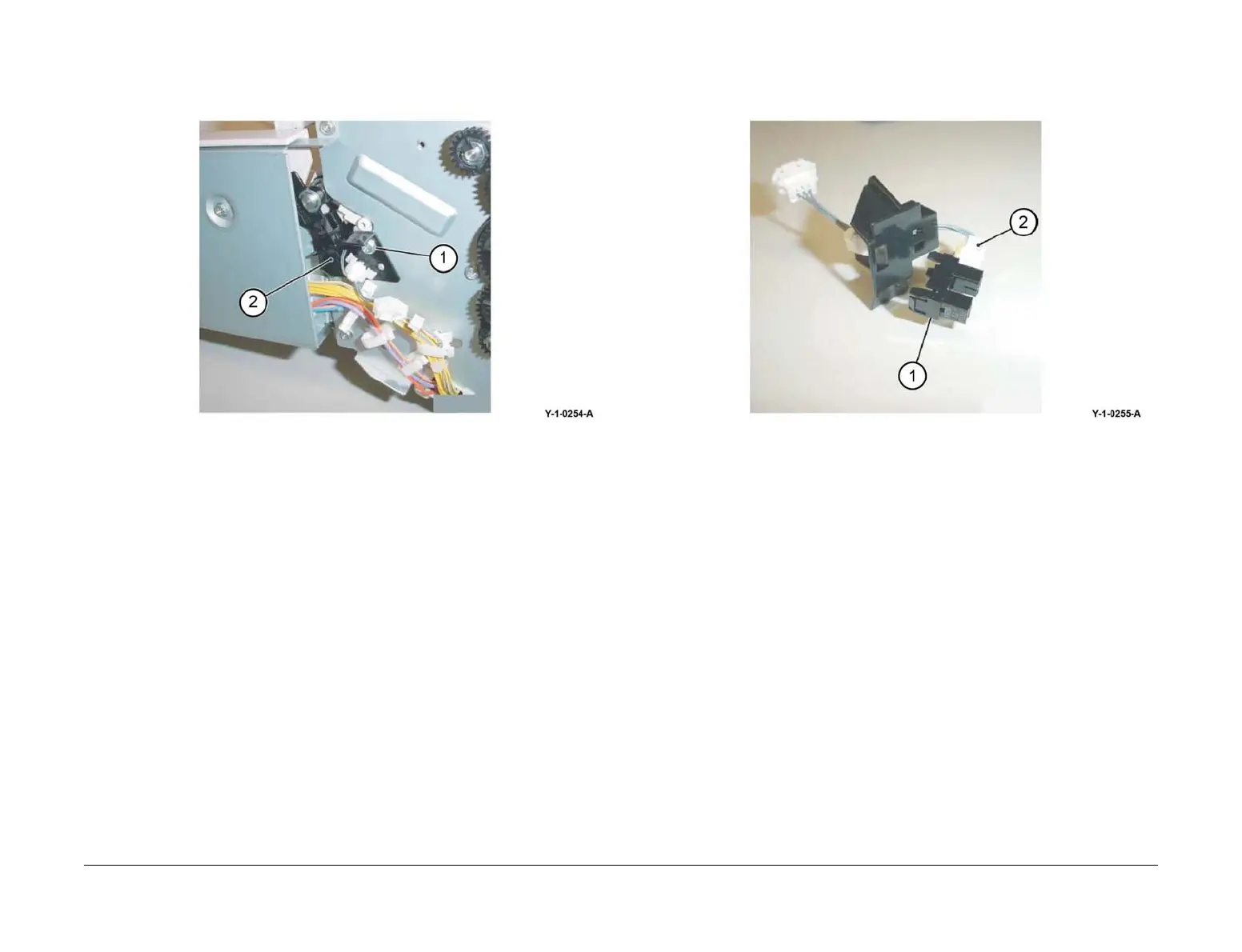

Figure 2 Set clamp home sensor assembly removal
5. Remove the set clamp home sensor, Figure 3:
a. Remove the set clamp home sensor (1) from the bracket.
b. Disconnect the connector (2).
Figure 3 Set clamp home sensor removal
Replacement
The replacement is the reverse of the removal procedure.
