April 2017
4-110
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 13.17
Launch Issue
Repairs and Adjustments

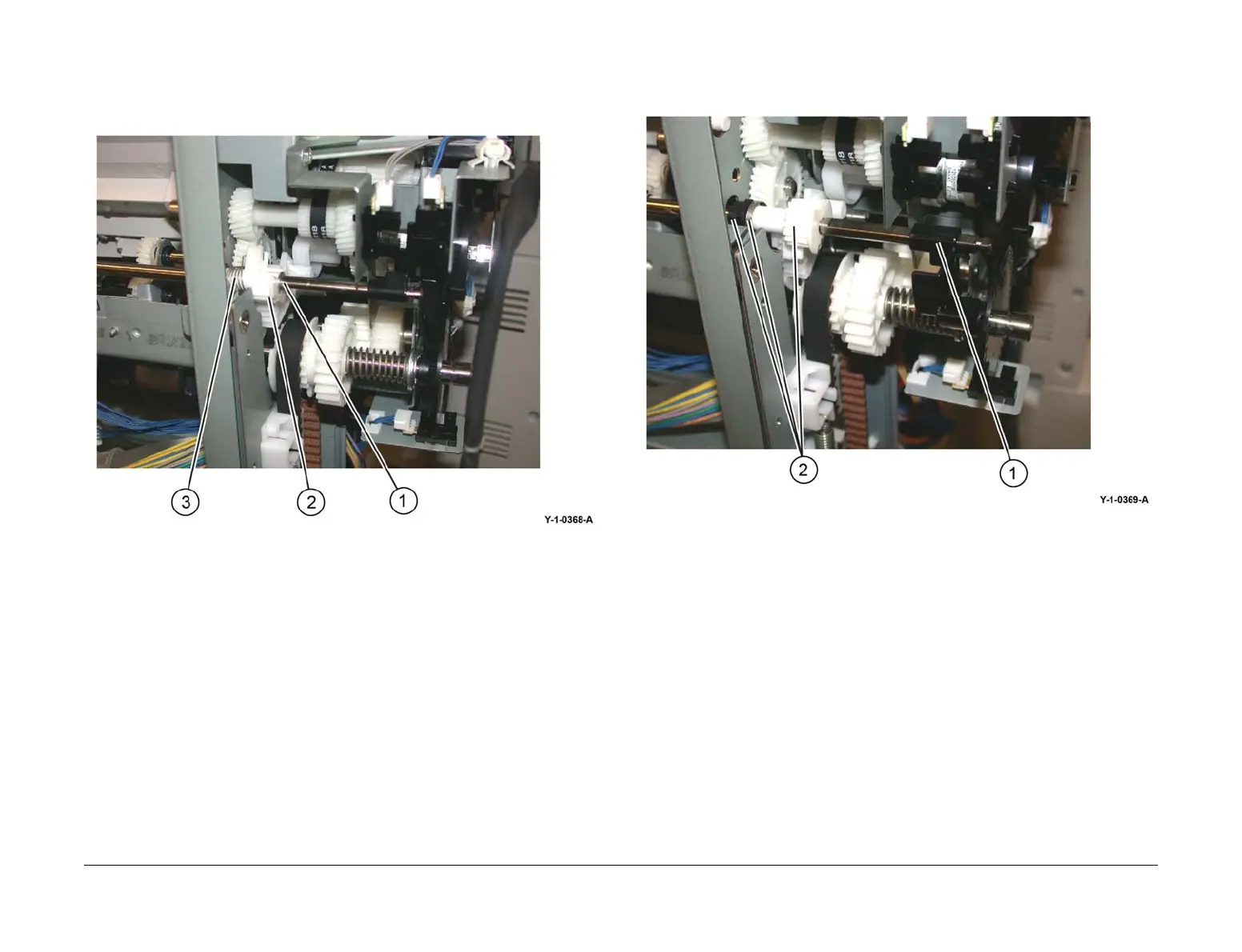

14. Prepare to remove the set clamp shaft, Figure 7:
a. Remove the rear E-ring (1) from the set clamp shaft
b. Slide the gear (2) away from the frame.
c. Disconnect the spring (3) from the gear.
Figure 7 Prepare to remove the set clamp shaft
15. Slide the gear, spring and the bushing away from the frame, Figure 8:
a. Unlock, then remove the flag (1).
b. Slide the gear, spring and the bushing (2) away from the frame.
Figure 8 Flag removal
To Next Page
