Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
REP 13.31
Launch Issue
Repairs and Adjustments
3. Disconnect the booklet maker assembly from the finisher, Figure 3:
a. Disconnect the connector (1).
b. Pull out the four cable ties (2).

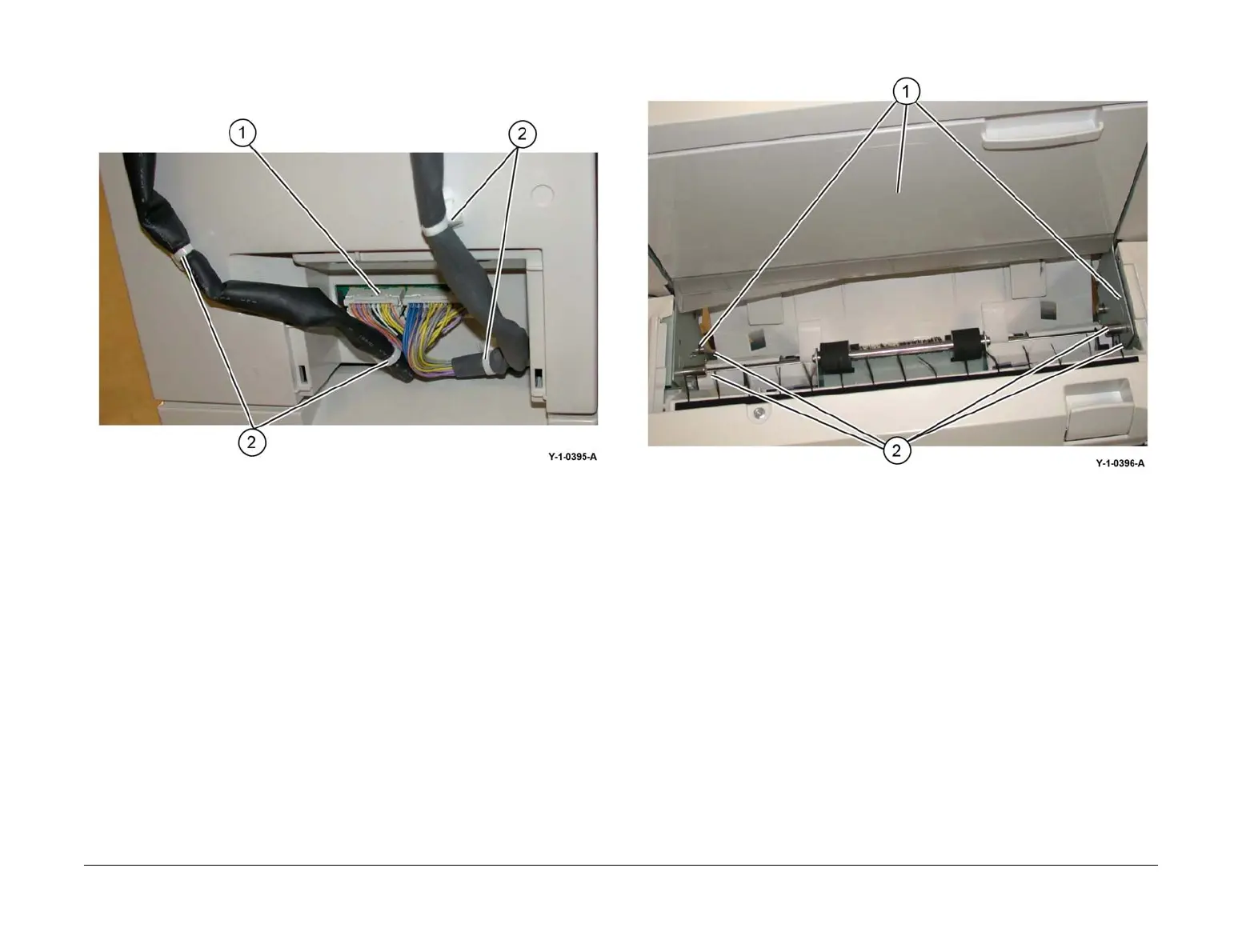

Figure 3 Booklet maker assembly disconnection
4. Lift the booklet maker assembly (1) off the four locating pins (4), then remove, Figure 4.
Figure 4 Booklet maker assembly removal
Replacement
The replacement is the reverse of the removal procedure.
