Xerox VersaLink B7035 Service Manual

April 2017
4-229
Xerox® VersaLink® B7025/B7030/B7035 Multifunction Printer
ADJ 5.3
Repairs and Adjustments
Launch Issue
NOTE: Grid A and grid B of test patterns 82E2010, 82E2020 are small areas of parallel
lines 1mm apart. These can be used to directly measure the registration displacement.
NOTE: If a there is a difference between measurements at A and B, refer to IQS 5 Skew.

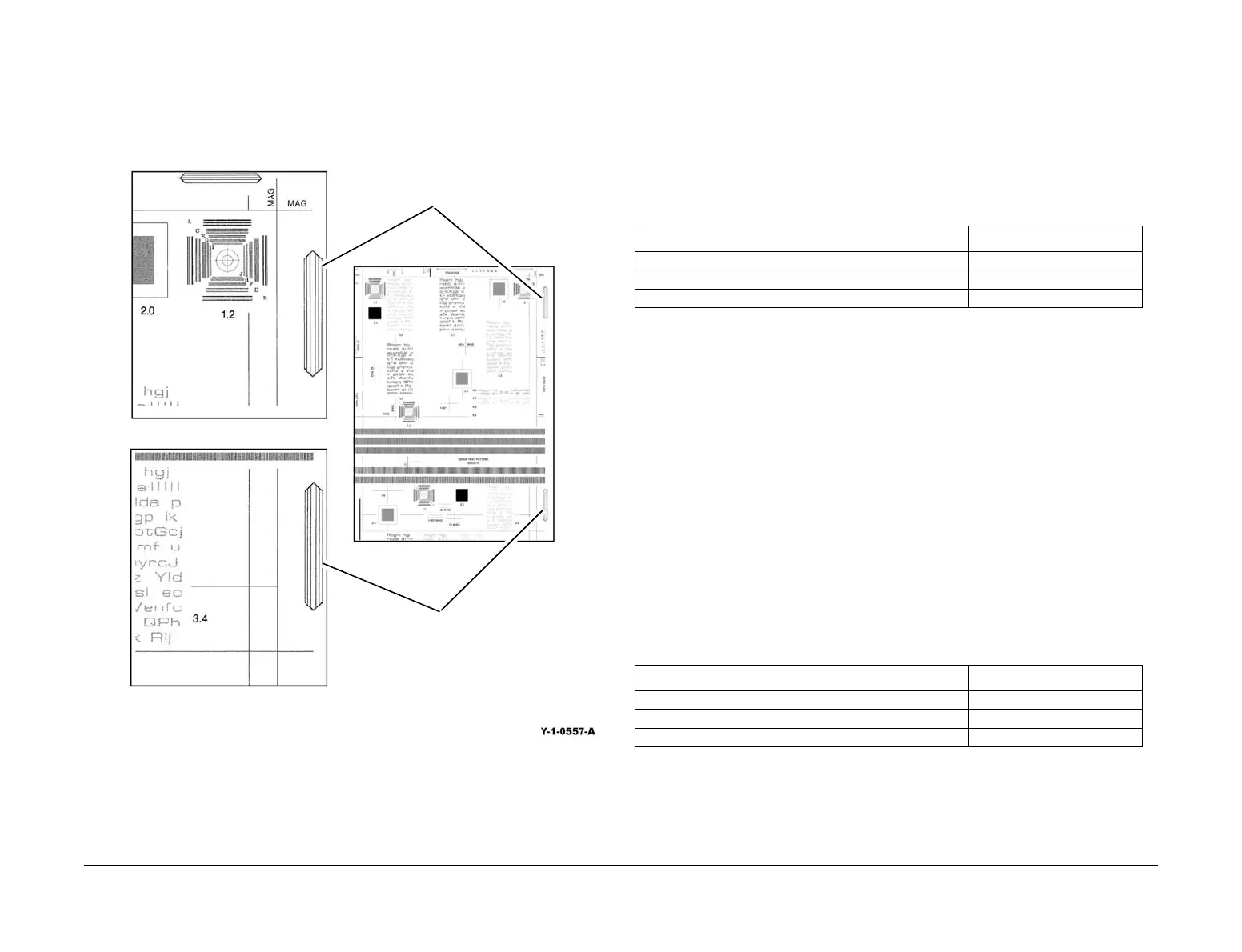

Figure 1 Test pattern
4. If the measurement is not within the specified range, perform the Side 1 Adjustment. If the
measurement is within the specified range go to the Side 2 Check.
Side 1 Adjustment
1. Enter dC131. Change NVM value 711-140 to correct side 1 lead edge registration. If the
measurement is:
• Too large, increase the NVM value.
• Too small, decrease the NVM value.
NOTE: An increment of 1 in NVM = 0.1mm (0.004 inch).
2. Repeat the Side 1 Check. If the side 1 lead edge registration is good, apply the same
change to the NVM values listed in Table 1
3. Perform the Side 2 Check.
Side 2 Check
1. Place the test pattern 82E2010 (A4) or 82E2020 (8.5 x11inch) face down in the DADF
input tray. Ensure that the document guides are correctly adjusted.
2. Make two duplex (2 to 1 sided) copies.
3. Use the grids A and B on the copy, Figure 1, measure the lead edge displacement. Check
that the lead edge registration error is within +/- 2.0 mm (0.079 inch).
4. If the measurement is not within the specified range, perform the Side 2 Adjustment.
Side 2 Adjustment
1. Enter dC131. Change NVM value 711-141 to correct side 2 lead edge registration. If the
measurement is:
• Too large, increase the NVM value.
• too small, decrease the NVM value.
NOTE: An increment of 1 in NVM = 0.1mm (0.004 inch).
2. Repeat the Side 2 Check. If the side 2 lead edge registration is good, apply the same
change to the NVM values listed in Table 2.
Grid A
Grid B
Table 1 Side 1 NVM values
NVM Machine Speed (ppm)
711-002 DADF lead registration adjustment (side 1) 35
711-003 DADF lead registration adjustment (side 1) 30
711-004 DADF lead registration adjustment (side 1) 25
Table 2 Side 2 NVM values
NVM Machine Speed (ppm)
711-022 DADF lead registration adjustment (side 2) 35
711-023 DADF lead registration adjustment (side 2) 30
711-024 DADF lead registration adjustment (side 2) 25

Xerox VersaLink B7035 Specifications

General

Duplex printing	Yes
Print technology	LED
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	9.1 s
Print speed (black, normal quality, A4/US Letter)	35 ppm
Copier resize	25 - 400 %
Maximum copy resolution	600 x 600 DPI
Maximum number of copies	999 copies
Time to first copy (black, normal)	5.4 s
Scan to	E-mail, FTP, SMB, USB
Scanner type	-
Input color depth	24 bit
Faxing	Mono faxing
Modem speed	33.6 Kbit/s
Printing colors	Black
Maximum duty cycle	129000 pages per month
Page description languages	HP-GL, PCL 5e, PCL 6, TIFF, XPS
Internal memory	2048 MB
Processor cores	2
Processor frequency	1050 MHz
Control type	Touch
Product color	Black, White
Display diagonal	7 \
Market positioning	Business
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Mobile printing technologies	Apple AirPrint, Google Cloud Print
Standard interfaces	Ethernet, NFC, USB 3.2 Gen 1 (3.1 Gen 1)
Optional connectivity	Wireless LAN
USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	1
Power consumption (average operating)	- W
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Y
Linux operating systems supported	Fedora 24, openSUSE 13.2
Other operating systems supported	IBM AIX 7.2
Server operating systems supported	Windows Server 2003, Windows Server 2008, Windows Server 2008 R2, Windows Server 2012
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional x64, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Pro x64, Windows 8 x64
Sustainability certificates	ENERGY STAR
Total input capacity	- sheets
Paper tray media types	Bond paper, Card stock, Envelopes, Heavy paper, Labels, Letterhead, Plain paper, Pre-Printed, Recycled paper
ISO A-series sizes (A0...A9)	A3, A4
Maximum ISO A-series paper size	A3

Weight and Dimensions

Depth	670.8 mm
Width	590 mm
Height	767.9 mm
Weight	- g
