Crankcase
7-64

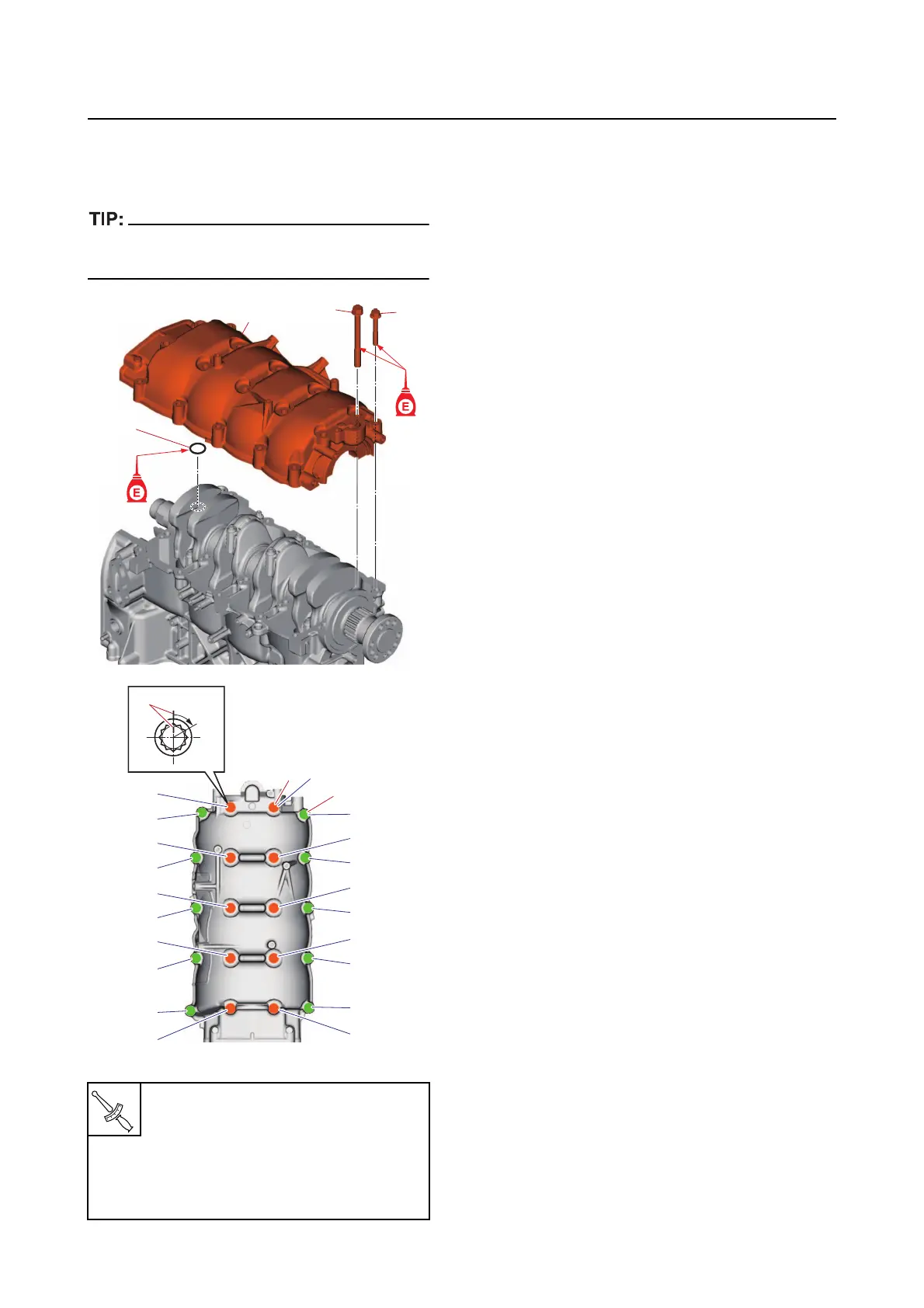

e. Tighten the crankcase bolts (M8) “4” to
the specified torques in 2 stages and
in the order [11], [12], and so on.
After tightening the crankcase bolts “3” and “4”,
make sure that the crankshaft turns smoothly.
Crankcase bolt (M10) “3” [1]–[10]
1st: 16 N·m (1.6 kgf·m, 12 lb·ft)
2nd: 60
Crankcase bolt (M8) “4” [11]–[20]
1st: 14 N·m (1.4 kgf·m, 10 lb·ft)
2nd: 28 N·m (2.8 kgf·m, 21 lb·ft)
2
3
4
1
[9]
[19]
[5]
[15]
[1]
[11]
[4]
[14]
[18]
[8]
[10]
[20]
[6]
[16]
[2]
[12]
[3]
[13]
[17]
[7]
3
4
a
60˚
To Next Page
