Yamaha F75F - Page 267

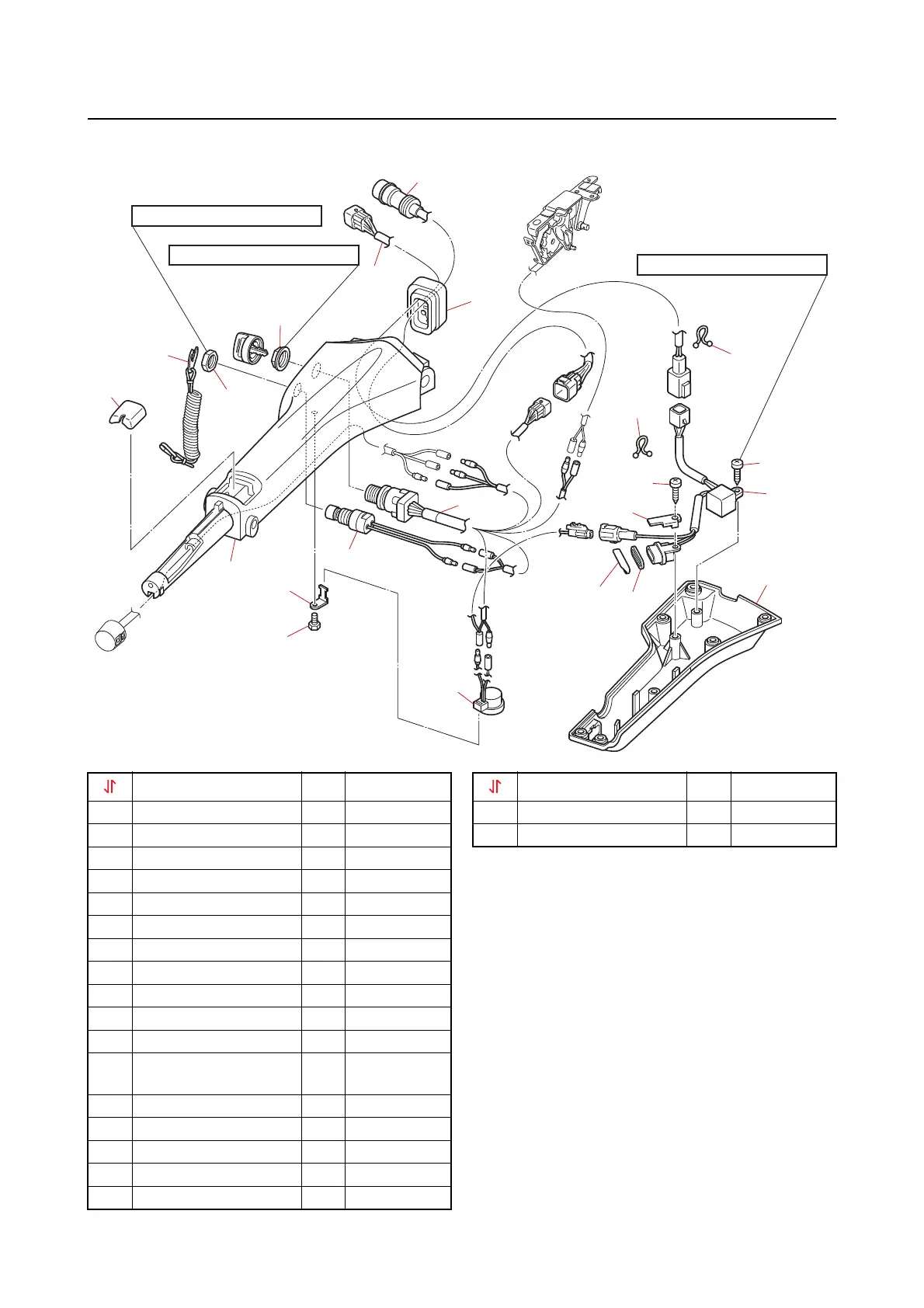

Electrical component (tiller handle)
9-7
Electrical component (tiller handle)
12
13
15
16
10
19
8
7
11
9
5
6
18
3
2
4
2
1
1
17
14
2.3 N·m (0.23 kgf·m, 1.7 lb·ft)
4.4 N·m (0.44 kgf·m, 3.2 lb·ft)
1.8 N·m (0.18 kgf·m, 1.3 lb·ft)
11
Part name Q’ty Remarks
1 Clamp 2
2 Screw M6  20
mm 2
3 Plate 1
4 Alert indicator 1
5 Grommet 1
6 Gasket 1
7 Bolt M6  15
mm 1
8 Bracket 1
9 Buzzer 1
10 Nut M16 1
11 Engine shut-off switch 1
12
Extension wire har-
ness
1
13 Alert indicator harness 1
14 Cover 1
15 Grommet 1
16 Nut M20 1
17 Engine start switch 1
18 Cover 1
19 Tiller handle 1
Part name Q’ty Remarks
