Yamaha F75F - Page 271

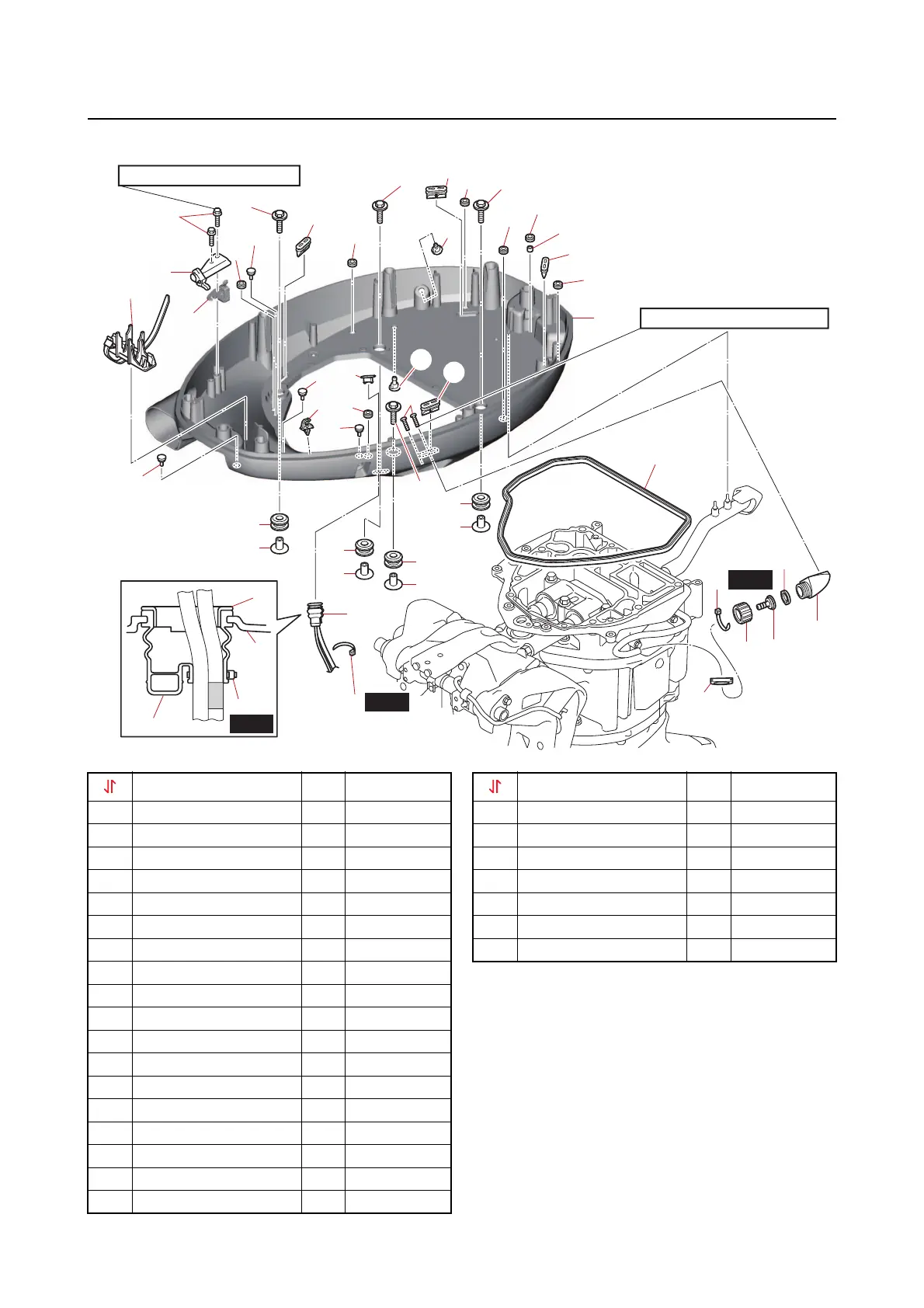

Bottom cowling
9-11
Bottom cowling
3
4
1
10
24
25
21
8
8
8
2
7
7
7
6
5
5
15
7
23
9
7
13
13
12
11
11
19
21
21
5
22
14
16
17
18
20
23
22
23
22
23
22
4.0 N·m (0.40 kgf·m, 3.0 lb·ft)
10 N·m (1.0 kgf·m, 7.4 lb·ft)
25
5
7
7
8
9
12
21
New
New
New
Part name Q’ty Remarks
1 Holder 1
2 Bolt M6  25
mm 2
3 Bracket 1
4 Bracket 1
5 Grommet 4
6 Collar 1
7 Grommet 7
8 Rubber seal 4
9 Hose nipple 2
10 Holder 1
11 Plastic tie 1
12 Cap 1
13 Grommet 1
14 Plastic tie 1
15 Grommet 1
16 Hose joint 1
17 Hose joint 1
18 Gasket 1
19 Screw M6  20 mm 2
20 Adapter 1
21 Bolt M8  35
mm 4
22 Collar 4
23 Grommet 4
24 Rubber seal 1
25 Bottom cowling 1
Part name Q’ty Remarks
