Yamaha F75F - Page 272

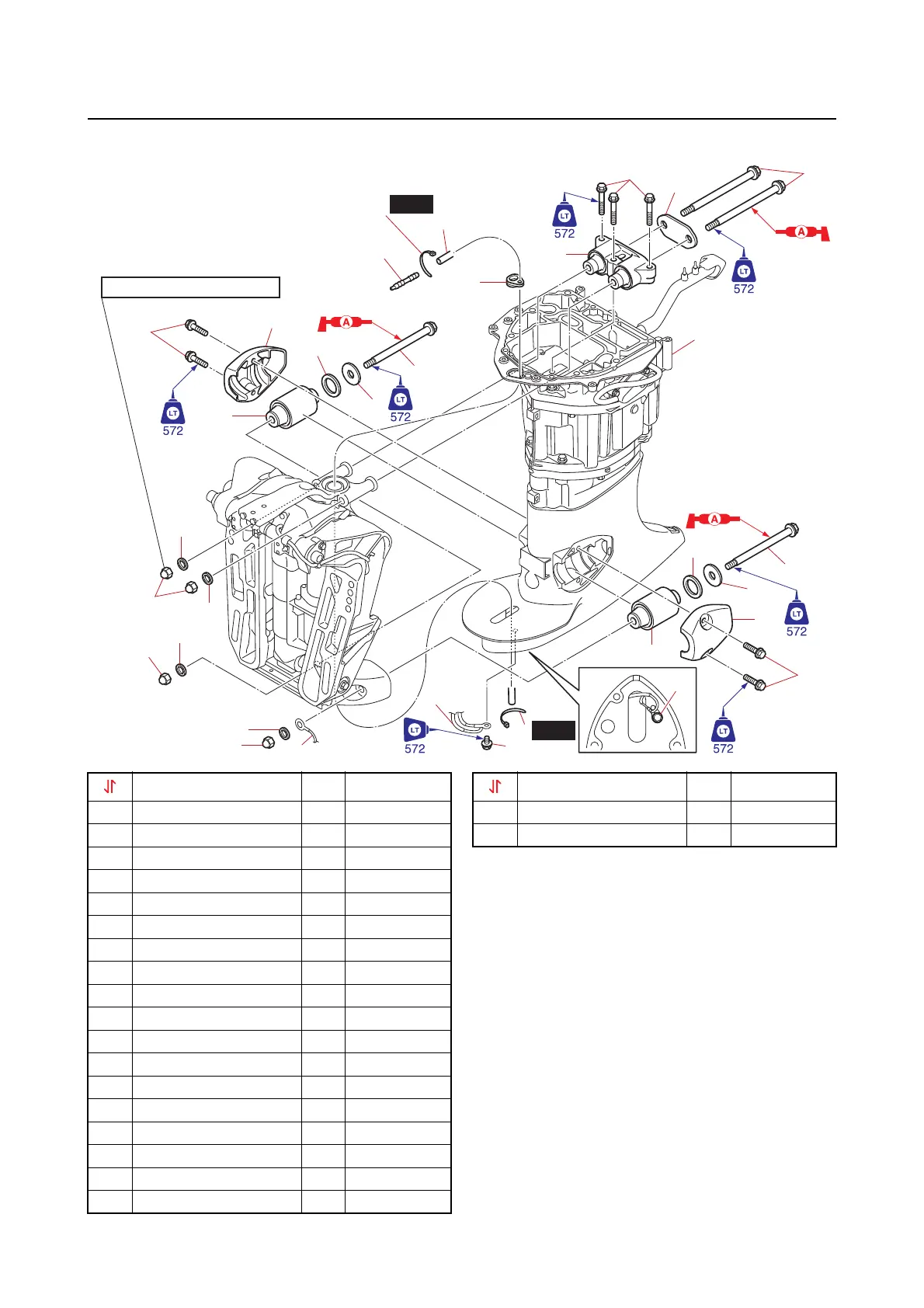

Upper case assembly and mount
9-12
Upper case assembly and mount
7
7
7
8
8
8
15
15
16
16
17
19
20
18
17
19
20
18
2
1
1
4
3
11
13
12
14
5
5
8
74 N·m (7.4 kgf·m, 55 lb·ft)
10
6
9
New
New
Part name Q’ty Remarks
1 Plastic tie 2
2 Nipple 1
3 Grommet 1
4 Speedometer hose 1
5 Bolt M6  10
mm 1
6 Ground lead 1
7 Nut M14 4
8 Washer 4
9 Ground lead 1
10 Upper case 1
11 Bolt M10  60
mm 3
12 Upper mount 1
13 Bolt M14  19
4 mm 2
14 Plate 1
15 Bolt M10  40
mm 4
16 Cover 2
17 Lower mount 2
18 Bolt M14  17
8 mm 2
19 Washer 2
20 Washer 2
