Upper case assembly and mount
9-13
Removing the upper case
1. Drain:
• Engine oil
2. Remove:
• Upper case

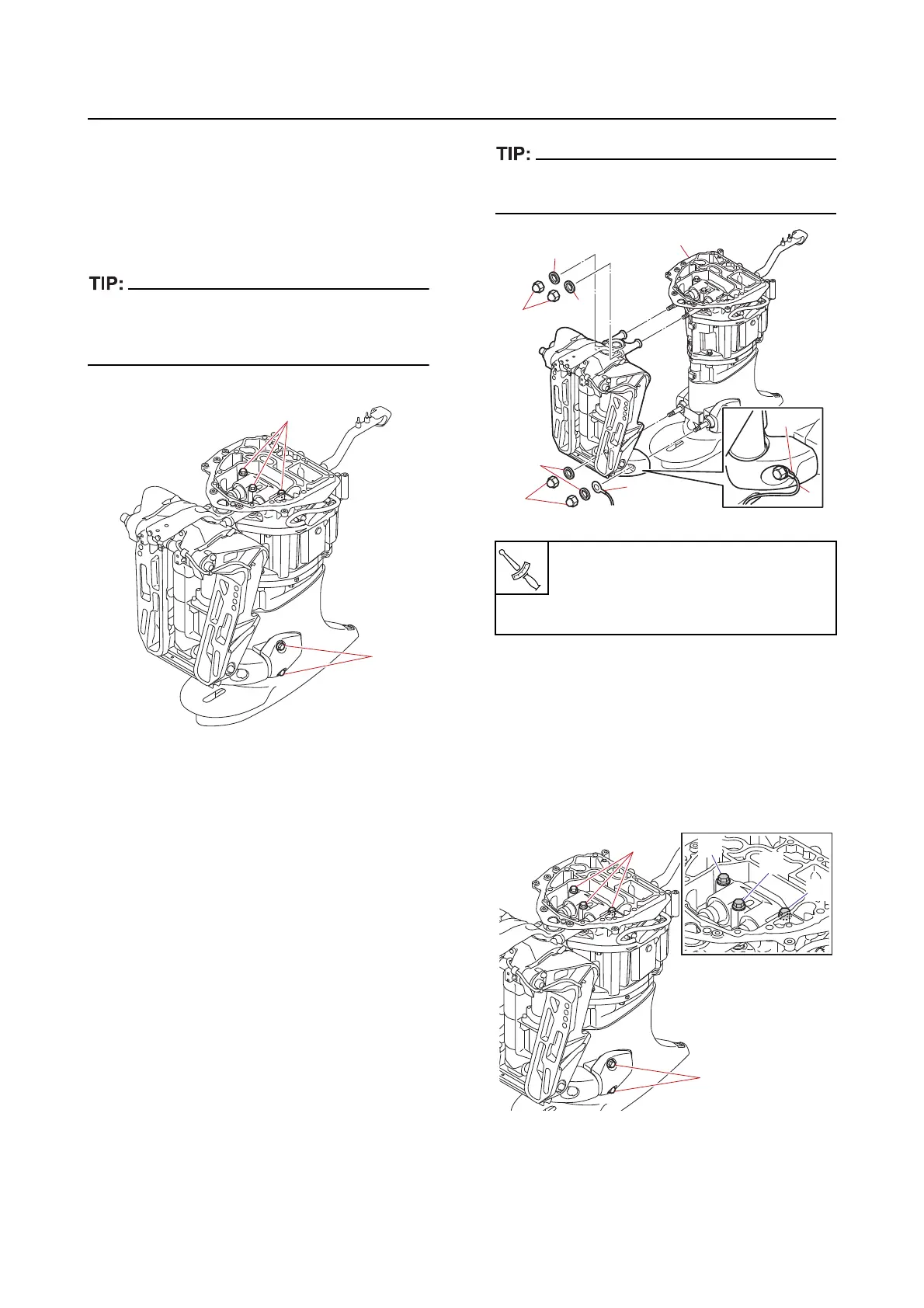

Before removing the upper case, loosen the
upper mount bolts “1” and lower mount cover
bolts (PORT and STBD) “2”.
Installing the upper case
1. Install:
• Pla
te
• Upper mount bolt
• Upper mount
• Upper mount mountin
g bolt (temporarily
tighten)
• Washer
• Washer
• Lower mount bolt
• Lower mount
• Lower mount cover
• Lower mount cover bolt (temporarily tight-
en)
• Upper case “1”
• Ground lead “2”
• Washer “3”
• Upper mount nut “4”
• Lower mount nut “5”
Fit the ground lead “2” into the groove “a” in the
steering yoke.
2. Tighten:
• Upper mount mounting
bolt
• Lower mount cover
bolt
a. Tighten the upper mount mounting
bolts “1” in
the order [1], [2], and so on.
b. Tighten the lower mount cover bolts
(PORT and STBD) “2”.
1
2
Upper mount nut “4”
74 N·m (7.4 kgf·m, 55 lb·ft)
Lower mount nut “5”
74 N·m (7.4 kgf·m, 55 lb·ft)
